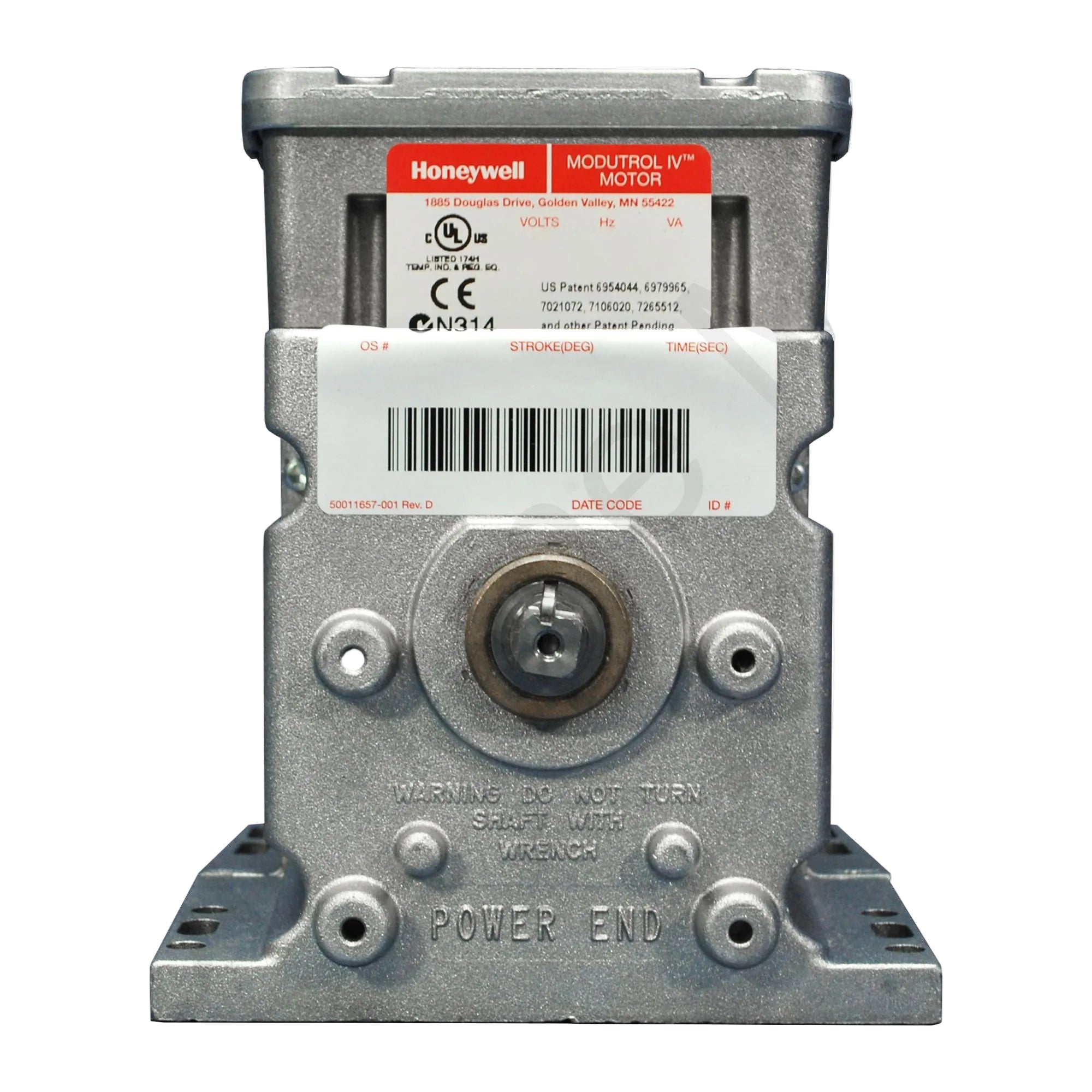

Honeywell M6184A1023 120V Modutrol IV Floating Control Motor
- Regular price
- $2,399.00
- Sale price
- $2,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M6184A1023
Description
The Honeywell M6184A1023 is a Series 61 Modutrol IV non-spring return motor designed for floating control of dampers and valves. It operates with controllers providing switched SPDT or floating outputs and features adjustable stroke operation for HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M6184A1023 |
| Subcategory | HVAC Actuator |
| Series | Series 61 Modutrol IV |
| Motor Type | Non-Spring Return Floating Control Motor |
| Control Type | Switched SPDT / Floating |
| Voltage | 120 VAC |
| Frequency | 50 Hz, 60 Hz |
| Power Consumption | 15 VA |
| Stroke | Field Adjustable, 90–160° |
| Shaft Design | Dual Shafts, Slotted and Tapped on Both Ends |
| Temperature Range | -40°F to 150°F |
| Weight | 6.09 lb |
Information About M6184A1023
The M6184A1023 is part of Honeywell’s Modutrol IV Series 61 motor family for proportional or floating control applications. The motor uses dual shafts with slotted and tapped ends to support different damper and valve mounting configurations. Its field-adjustable stroke can be set from 90 to 160 degrees, while auxiliary switch cams provide options for additional control functions. The motor is suitable for normally open or normally closed valves and dampers and includes quick-connect terminals for simplified installation.
Key Features:
- Floating Control: Designed for controllers providing switched SPDT or floating outputs.
- Non-Spring Return: Provides motorized positioning without spring-return operation.
- Adjustable Stroke: Field adjustable from 90 to 160 degrees for flexible damper and valve control.
- Dual Shafts: Features slotted and tapped shafts on both ends for versatile mounting.
- Auxiliary Switch Cams: Includes cams for auxiliary switch operation and control functions.
- Quick-Connect Terminals: Standard quick-connect terminals simplify electrical connections.
- Weather Protection: Integral junction box provides NEMA 3 protection when mounted upright.
- Fixed Torque: Maintains consistent torque throughout the operating voltage range.
The M6184A1023 delivers the reliability and precision required for floating control of HVAC dampers and valves.
