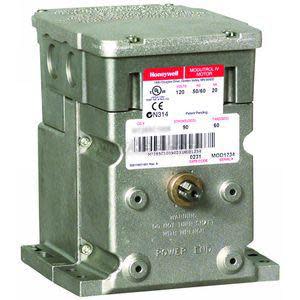

Honeywell M6284D1000 Modutrol IV Series 60 24VAC Damper and Valve Actuator Motor
- Regular price
- $1,314.00
- Sale price
- $1,314.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M6284D1000
Description
The Honeywell M6284D1000 Modutrol IV Motor is a Series 60 electric actuator engineered for precise valve and damper positioning in HVAC and industrial control systems. Operating on 24 VAC power, this actuator delivers high torque output and reliable rotary motion for accurate airflow and fluid control applications. The Honeywell M6284D1000 is designed for long-lasting performance in commercial heating, ventilation, and automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | M6284D1000 |
| Subcategory | Damper & Valve Actuators |
| Series | Modutrol IV |
| Control Signal | Series 60 |
| Operating Voltage | 24 VAC |
| Torque Rating | 150 lb-in |
| Stroke Range | 90° / 160° |
| Timing | 30/60 Seconds |
| Number of Shafts | 2 |
| Adapter Bracket Included | Yes |
| Application | Valve and Damper Actuation |
| Mounting Type | Direct / Bracket Mount |
| Actuator Type | Rotary Servo Motor |
| Control Mode | Floating / Proportional Control |
| Compatible Equipment | HVAC Dampers and Valves |
| Construction | Heavy-Duty Industrial Actuator |
| Operating Environment | Commercial and Industrial Indoor Use |
| Frequency | 50/60 Hz |
| Weight | Approximately 6 lb |
Information About M6284D1000
The M6284D1000 is part of Honeywell’s Modutrol IV actuator series, a widely used line of heavy-duty motors designed for damper and valve automation in HVAC systems. Featuring Series 60 floating control operation, the actuator provides proportional positioning control for air handling units, boilers, chillers, and industrial process equipment. The unit includes dual output shafts, adjustable stroke capability, and high torque performance to accommodate demanding mechanical loads and flexible installation requirements. Engineered with durable internal gearing and precision motor control technology, the actuator supports dependable operation in commercial and industrial automation systems.
Key Features:
- Modutrol IV Actuator Design: Heavy-duty actuator designed for HVAC and industrial control applications.
- Series 60 Control Signal: Supports floating control operation for accurate positioning performance.
- 24 VAC Operation: Operates on low-voltage 24 VAC power systems.
- High Torque Output: Delivers 150 lb-in torque for demanding valve and damper applications.
- Adjustable Stroke Capability: Supports 90° and 160° rotational stroke configurations.
- Dual Shaft Configuration: Includes two motor shafts for flexible installation and linkage options.
- Reliable Timing Performance: Provides 30/60 second timing operation for smooth actuation.
- Valve and Damper Compatibility: Suitable for airflow control dampers and hydronic valve systems.
- Included Adapter Bracket: Supplied with mounting adapter bracket for installation convenience.
- Precision Positioning Control: Enables stable modulation and accurate mechanical movement.
- Commercial HVAC Integration: Designed for air handlers, boilers, rooftop units, and automation systems.
- Rugged Industrial Construction: Built for continuous-duty operation in demanding environments.
The M6284D1000 delivers the reliability and precision required for HVAC damper automation, valve positioning, and industrial actuator control applications.
Description
The Honeywell M6284D1000 Modutrol IV Motor is a Series 60 electric actuator engineered for precise valve and damper positioning in HVAC and industrial control systems. Operating on 24 VAC power, this actuator delivers high torque output and reliable rotary motion for accurate airflow and fluid control applications. The Honeywell M6284D1000 is designed for long-lasting performance in commercial heating, ventilation, and automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | M6284D1000 |
| Subcategory | Damper & Valve Actuators |
| Series | Modutrol IV |
| Control Signal | Series 60 |
| Operating Voltage | 24 VAC |
| Torque Rating | 150 lb-in |
| Stroke Range | 90° / 160° |
| Timing | 30/60 Seconds |
| Number of Shafts | 2 |
| Adapter Bracket Included | Yes |
| Application | Valve and Damper Actuation |
| Mounting Type | Direct / Bracket Mount |
| Actuator Type | Rotary Servo Motor |
| Control Mode | Floating / Proportional Control |
| Compatible Equipment | HVAC Dampers and Valves |
| Construction | Heavy-Duty Industrial Actuator |
| Operating Environment | Commercial and Industrial Indoor Use |
| Frequency | 50/60 Hz |
| Weight | Approximately 6 lb |
Information About M6284D1000
The M6284D1000 is part of Honeywell’s Modutrol IV actuator series, a widely used line of heavy-duty motors designed for damper and valve automation in HVAC systems. Featuring Series 60 floating control operation, the actuator provides proportional positioning control for air handling units, boilers, chillers, and industrial process equipment. The unit includes dual output shafts, adjustable stroke capability, and high torque performance to accommodate demanding mechanical loads and flexible installation requirements. Engineered with durable internal gearing and precision motor control technology, the actuator supports dependable operation in commercial and industrial automation systems.
Key Features:
- Modutrol IV Actuator Design: Heavy-duty actuator designed for HVAC and industrial control applications.
- Series 60 Control Signal: Supports floating control operation for accurate positioning performance.
- 24 VAC Operation: Operates on low-voltage 24 VAC power systems.
- High Torque Output: Delivers 150 lb-in torque for demanding valve and damper applications.
- Adjustable Stroke Capability: Supports 90° and 160° rotational stroke configurations.
- Dual Shaft Configuration: Includes two motor shafts for flexible installation and linkage options.
- Reliable Timing Performance: Provides 30/60 second timing operation for smooth actuation.
- Valve and Damper Compatibility: Suitable for airflow control dampers and hydronic valve systems.
- Included Adapter Bracket: Supplied with mounting adapter bracket for installation convenience.
- Precision Positioning Control: Enables stable modulation and accurate mechanical movement.
- Commercial HVAC Integration: Designed for air handlers, boilers, rooftop units, and automation systems.
- Rugged Industrial Construction: Built for continuous-duty operation in demanding environments.
The M6284D1000 delivers the reliability and precision required for HVAC damper automation, valve positioning, and industrial actuator control applications.
