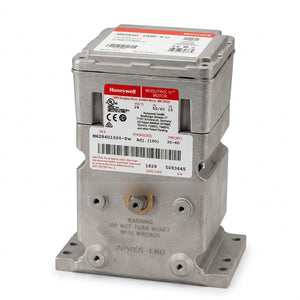

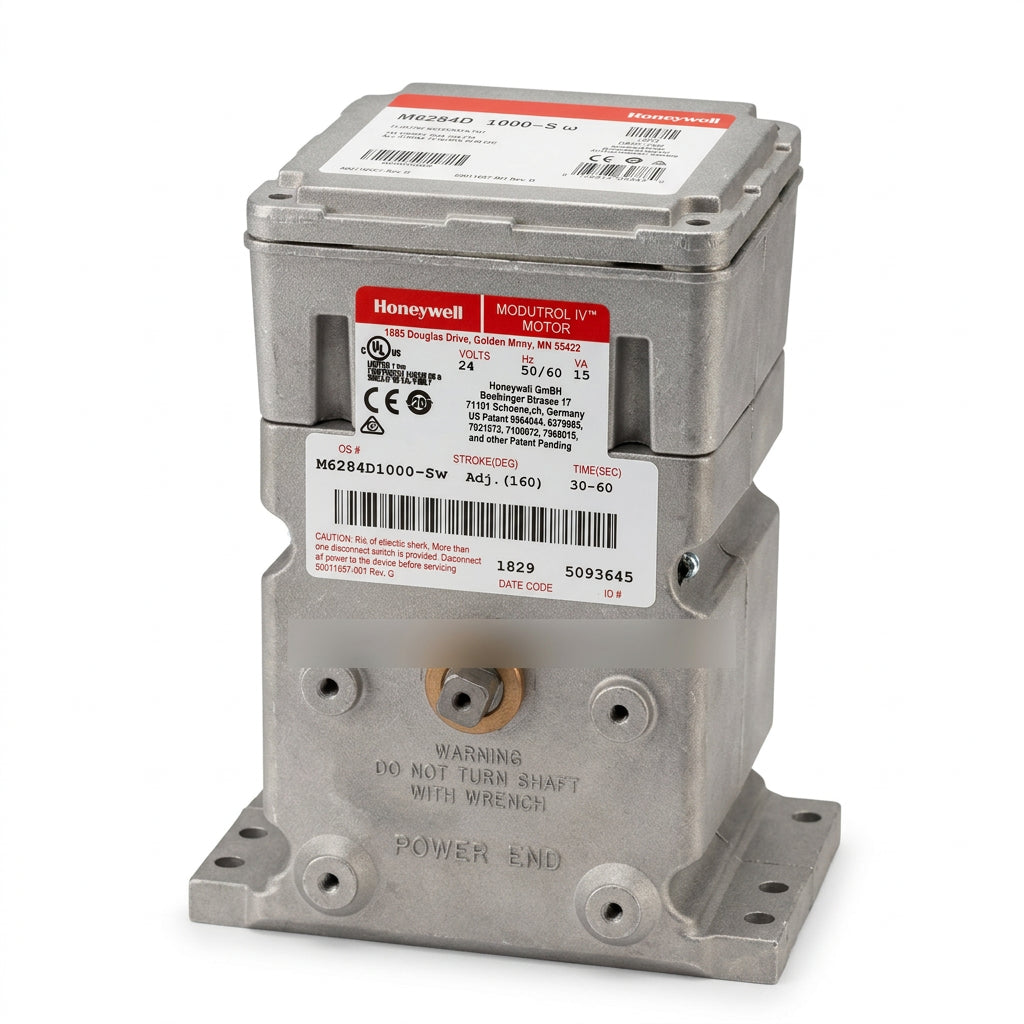

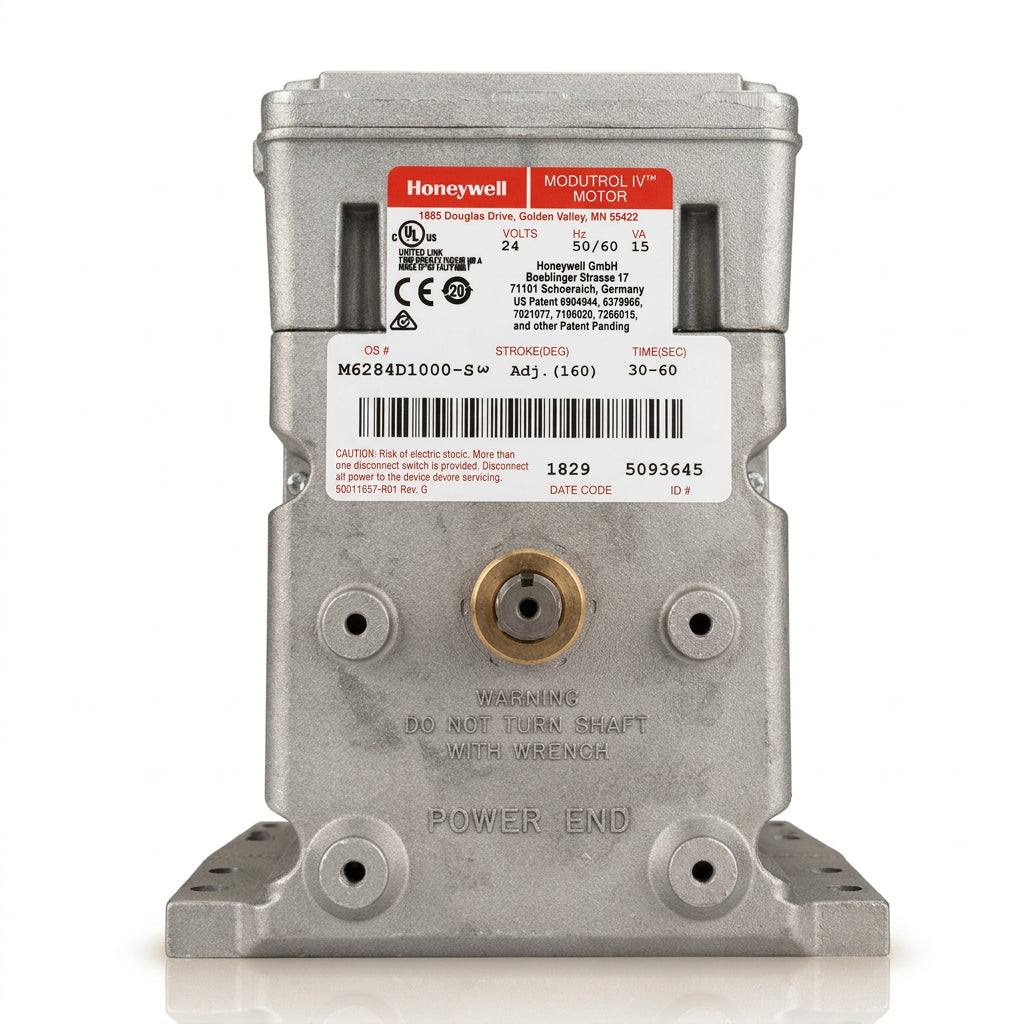

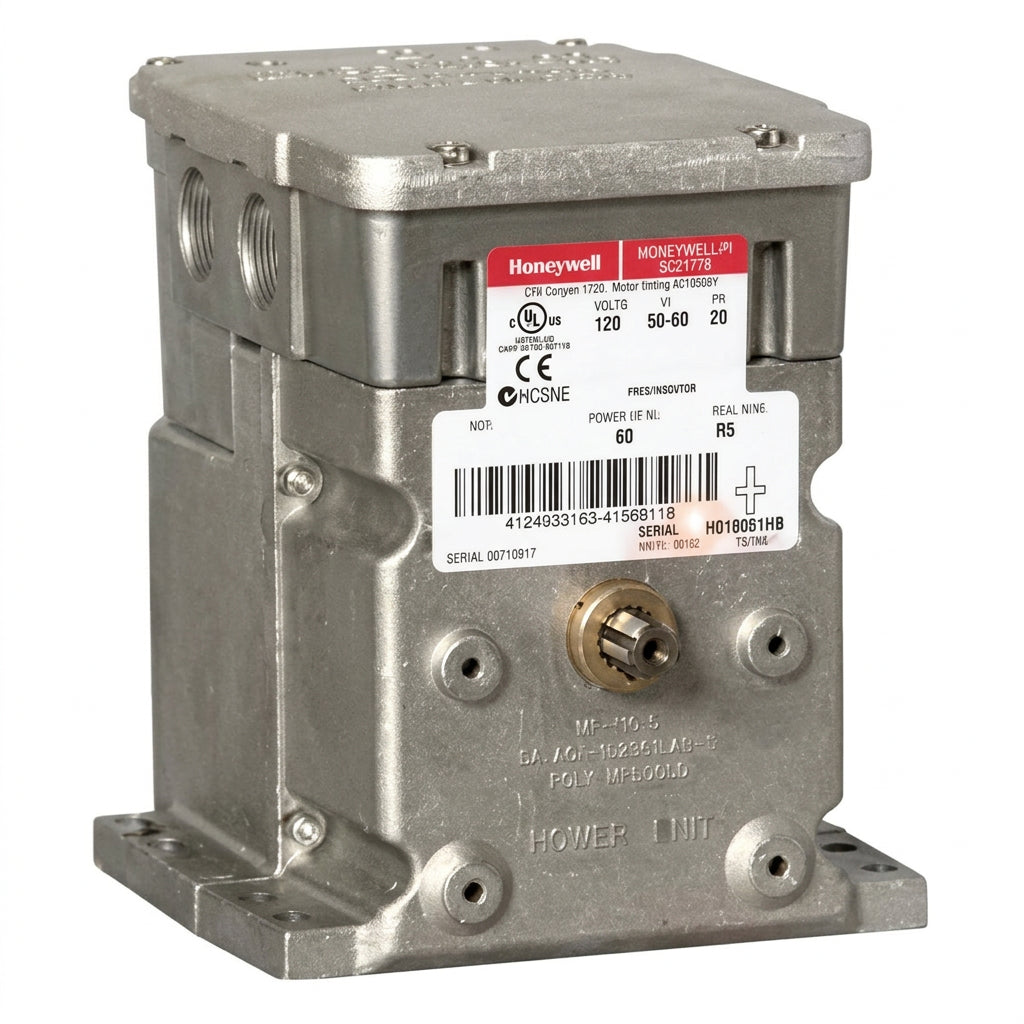

Honeywell M6284D1000-S Modutrol IV Floating Control Motor with Non-Linear Feedback
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M6284D1000-S
Description
The Honeywell M6284D1000-S is a Modutrol IV motor that provides floating control with feedback for compatible HVAC damper and valve mechanisms. It delivers 150 lb-in of torque using a 24 VAC supply and features non-spring-return operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M6284D1000-S |
| Subcategory | HVAC Actuator |
| Product Type | Modutrol IV control motor |
| Control Series | Series 62 |
| Control Type | Floating with feedback |
| Feedback Type | Non-linear; for compatible slaving applications |
| Supply Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 15 VA |
| Rated Torque | 150 lb-in (approximately 16.9 N·m) |
| Return Mechanism | Non-spring return |
| Rotational Stroke | Adjustable, symmetrical, 90°–160° |
| Nominal Operating Time | 30–60 seconds, depending on stroke |
| Mounting Type | Foot mounted |
| Motor Shaft | Dual ended |
| Electrical Connections | Quick-connect terminals |
| Weight | 5.34 lb (2.42 kg) |
Information About M6284D1000-S
The M6284D1000-S is part of Honeywell’s Series 62 Modutrol IV motor range. This model incorporates non-linear feedback intended for slaving applications with compatible Series 90 Modutrol IV motors. Its foot-mounted construction and dual-ended shaft accommodate the appropriate mechanical linkage arrangement. Adjustable symmetrical travel allows the motor stroke to be configured from 90 to 160 degrees.
Key Features:
- Floating Control: Provides incremental positioning through a compatible floating control circuit.
- Non-Linear Feedback: Supports the specified Modutrol IV slaving control arrangement.
- Rated Torque: Supplies 150 lb-in (approximately 16.9 N·m) to the connected mechanism.
- Adjustable Stroke: Offers symmetrical angular travel adjustable from 90° to 160°.
- Non-Spring-Return Design: Operates without a mechanical spring-return mechanism.
- Dual-Ended Shaft: Provides shaft access at both ends for compatible linkage connections.
- Foot-Mounted Construction: Secures the motor to a mounting surface for linkage-driven operation.
- Low-Voltage Supply: Operates on 24 VAC at 50/60 Hz with a specified consumption of 15 VA.
The M6284D1000-S delivers the reliability and precision required for coordinated damper and valve positioning in compatible HVAC control systems.
