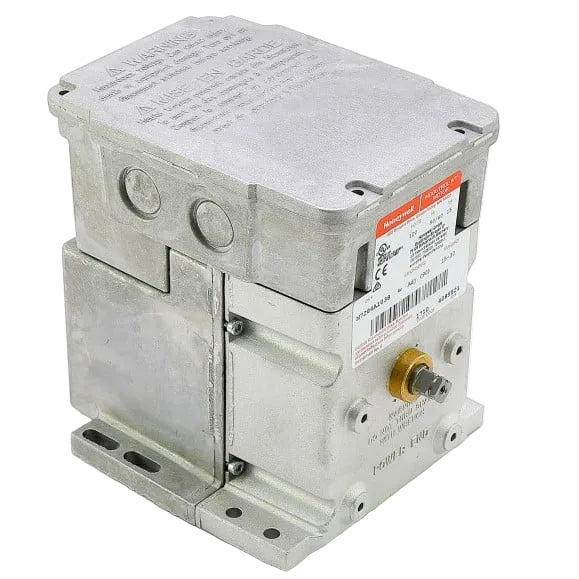

Honeywell M7284A1038 Modutrol IV 4–20 mA Non-Spring Return Actuator Motor
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M7284A1038
Description
The Honeywell M7284A1038 is a Modutrol IV non-spring return motor designed for proportional control of dampers and burner-related equipment. It accepts a 4–20 mA modulating control signal and provides 75 lb-in of torque with an adjustable 90–160 degree stroke. The foot-mounted actuator operates from 120 VAC and is suited for industrial HVAC and combustion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M7284A1038 |
| Subcategory | HVAC Actuator |
| Product Type | Modutrol IV Motor |
| Motor Type | Non-Spring Return |
| Mounting | Foot Mounted |
| Control Signal | Modulating, 4–20 mA |
| Stroke | Adjustable, 90–160 degrees, asymmetrical |
| Torque Rating | 75 lb-in (8.5 Nm) |
| Timing | 15–30 seconds |
| Rated Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Rated Power | 15 VA |
| Shaft | Dual-ended, 3/8 in. square |
| Ambient Temperature Range | -40°F to +150°F (-40°C to +60°C) |
| Weight | 6.95 lbs |
Information About M7284A1038
The M7284A1038 is part of Honeywell’s Modutrol IV series of motorized control actuators for positioning dampers and related equipment. Its non-spring return configuration provides motorized positioning without a spring-return mechanism, while the foot-mounted design supports fixed equipment installations. The actuator uses a 4–20 mA electronic modulating signal and provides an adjustable asymmetrical stroke from 90 to 160 degrees. A dual-ended square shaft and provisions for external auxiliary switches support installation and control-system integration.
Key Features:
- Modutrol IV Series: Part of Honeywell’s Modutrol IV family of motorized control equipment.
- Non-Spring Return: Provides motorized positioning without spring-return operation.
- 4–20 mA Control: Accepts a proportional electronic current signal for modulating control.
- 75 lb-in Torque: Provides a rated output torque of 75 lb-in for damper and equipment positioning.
- Adjustable Stroke: Supports a field-adjustable stroke range from 90 to 160 degrees.
- Foot Mounted: Uses a foot-mounted configuration for equipment and actuator installation.
- 120 VAC Operation: Operates from a 120 VAC power supply at 50/60 Hz.
- External Switch Capability: Supports external auxiliary switches for additional control functions.
The M7284A1038 delivers the reliability and precision required for HVAC damper and industrial combustion control applications.
