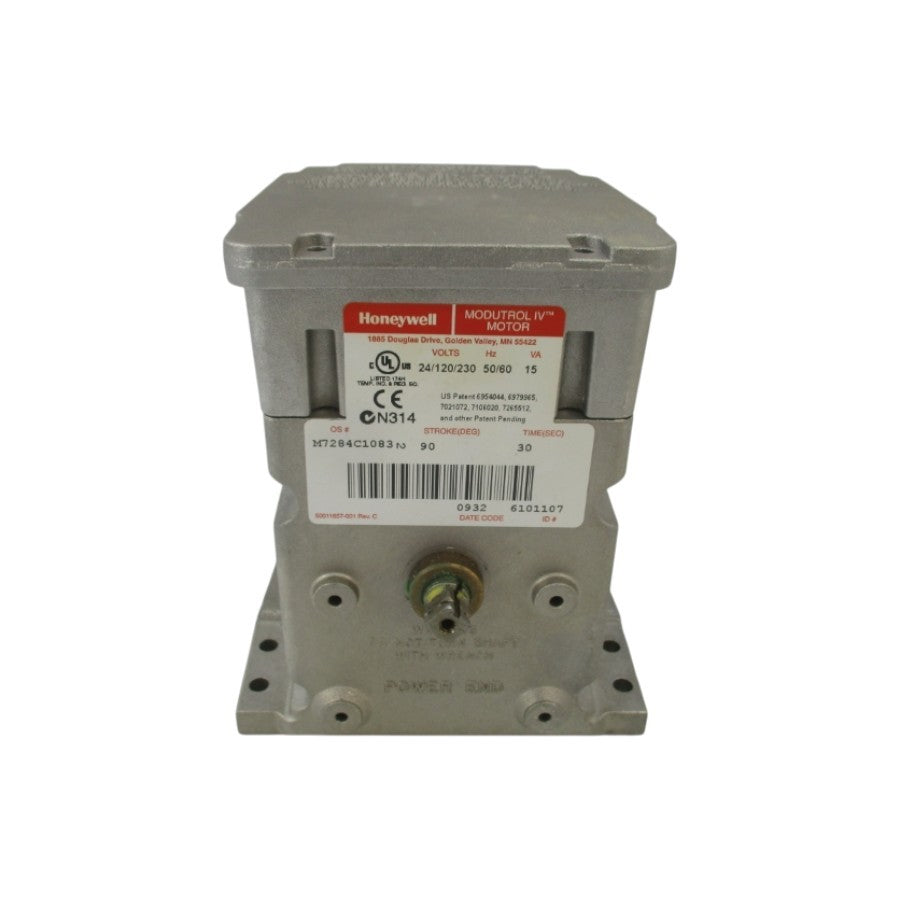

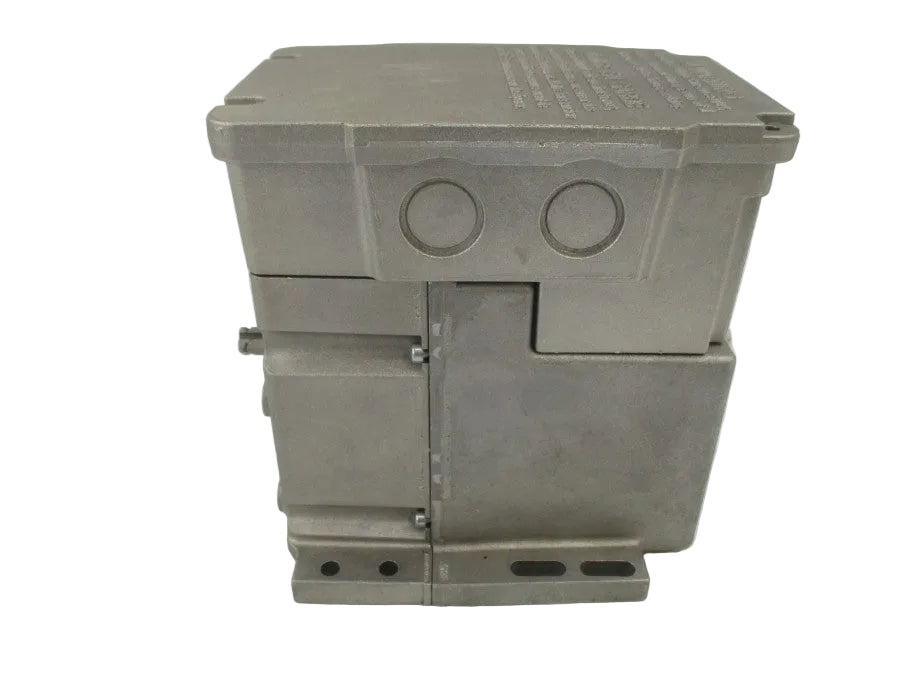

Honeywell M7284C1083 Modutrol IV Non-Spring Return Actuator Motor
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M7284C1083
Description
The Honeywell M7284C1083 is a foot-mounted Modutrol IV actuator motor designed for proportional control of HVAC dampers and valves. It operates across 24, 120, and 230 Vac systems, provides 150 lb-in of torque, and uses a 4–20 mA modulating control signal for precise positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M7284C1083 |
| Subcategory | Modutrol IV Non-Spring Return |
| Product Type | Actuator Motor |
| Series | Series 72 Modutrol IV |
| Application Type | Electric |
| Control Signal | Proportional, 4–20 mA |
| Voltage | 24 / 120 / 230 Vac |
| Frequency | 50 / 60 Hz |
| Torque | 150 lb-in (17 Nm) |
| Motor Shaft | Dual-ended Shaft |
| Shaft Size | 0.375 in |
| Stroke | 90 degrees, symmetrical |
| Timing | 30 seconds |
| Mounting | Foot-mounted |
| Housing Material | Die-cast aluminum |
| Power Consumption | 15 VA |
| Temperature Range | -40 to 150°F |
| Dimensions | 6 7/16 in. H × 5 1/2 in. W × 8 3/4 in. D |
| Weight | 13.00 lbs |
Information About M7284C1083
The M7284C1083 belongs to the Honeywell Series 72 Modutrol IV motor family and uses a die-cast aluminum housing for HVAC control applications. Its non-spring-return design provides continuous actuator positioning without an integral spring-driven return function. The motor has a dual-ended square shaft and two factory-installed internal auxiliary switches for control or status functions. Field-adjustable stroke capability and proportional 4–20 mA control make the actuator suitable for modulating damper and valve applications.
Key Features:
- Voltage Range: Operates on 24, 120, or 230 Vac power systems.
- Control Signal: Accepts a proportional 4–20 mA modulating input.
- Torque Rating: Provides 150 lb-in (17 Nm) of actuator torque.
- Fail-Safe Mode: Non-spring-return construction maintains position without spring return.
- Shaft Design: Features a dual-ended, square shaft with 0.375-inch dimensions.
- Auxiliary Switches: Includes two internal auxiliary switches for control and monitoring functions.
- Mounting: Uses a foot-mounted configuration for compatible HVAC installations.
- Stroke and Timing: Provides a 90-degree stroke with approximately 30-second timing.
The M7284C1083 delivers the reliability and precision required for modulating HVAC damper and valve control.
