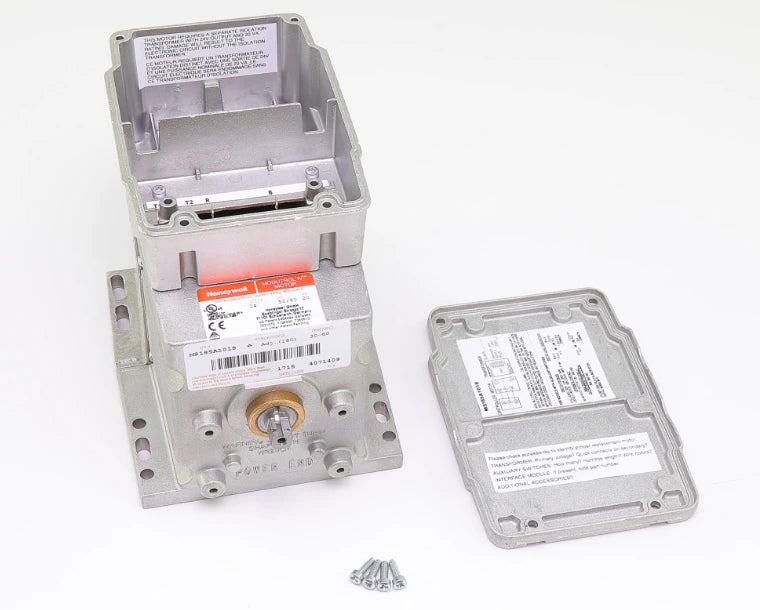

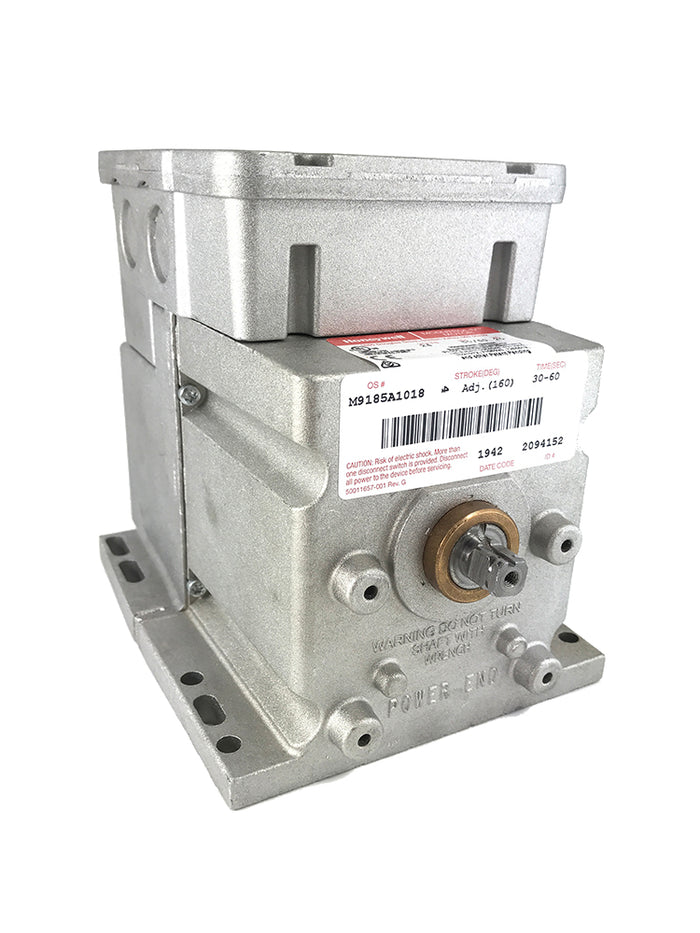

Honeywell M9185A1018 Modutrol IV 24 VAC Spring Return Actuator 60 lb-in
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9185A1018
Description
The Honeywell M9185A1018 is a Modutrol IV proportional actuator with 24 VAC spring-return operation and a 60 lb-in torque rating. It is designed to provide modulating control of compatible HVAC dampers and valves using a 135-ohm proportional control signal.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M9185A1018 |
| Subcategory | HVAC Actuators |
| Product Type | Modutrol IV Proportional Actuator |
| Series | Series 90 |
| Control Signal | Proportional, 135 Ohm |
| Power Supply | 24 VAC |
| Frequency | 50/60 Hz |
| Torque | 60 lb-in |
| Fail Safe Mode | Spring Return |
| Stroke | Adjustable, 90° to 160°, Symmetrical |
| Timing | 30-60 seconds nominal |
| Shaft | Dual-ended, 3/8-inch square |
| Mounting | Foot Mounted |
| Electrical Connections | Quick Connect Terminals |
| Shaft Rotation | Clockwise upon control signal increase |
| Temperature Range | -40°F to 150°F |
| Power Consumption | 15 VA |
| Weight | 9.00 lbs |
Information About M9185A1018
The M9185A1018 belongs to the Honeywell Series 90 Modutrol IV family of spring-return modulating motors. It operates from 24 VAC at 50/60 Hz and uses quick-connect terminals for electrical connections. The foot-mounted actuator has a dual-ended 3/8-inch square shaft and a field-adjustable symmetrical stroke from 90 to 160 degrees. Its integral junction box provides NEMA 3 weather protection when the motor is installed in the upright position.
Key Features:
- Modutrol IV Motor: Spring-return proportional actuator for compatible HVAC dampers and valves.
- 24 VAC Operation: Motor and control circuitry operate from a 24 VAC power supply.
- Proportional Control: Uses a 135-ohm control signal for modulating operation.
- Torque Rating: Provides 60 lb-in of rated actuator torque.
- Adjustable Stroke: Supports symmetrical stroke adjustment from 90 to 160 degrees.
- Spring Return: Provides fail-safe spring-return operation when required by the control system.
- Dual-Ended Shaft: Features a dual-ended 3/8-inch square shaft with slotted and tapped ends.
- Foot Mount: Uses a foot-mounted configuration for compatible HVAC installations.
The M9185A1018 delivers the reliability and precision required for proportional damper and valve control in HVAC systems.
