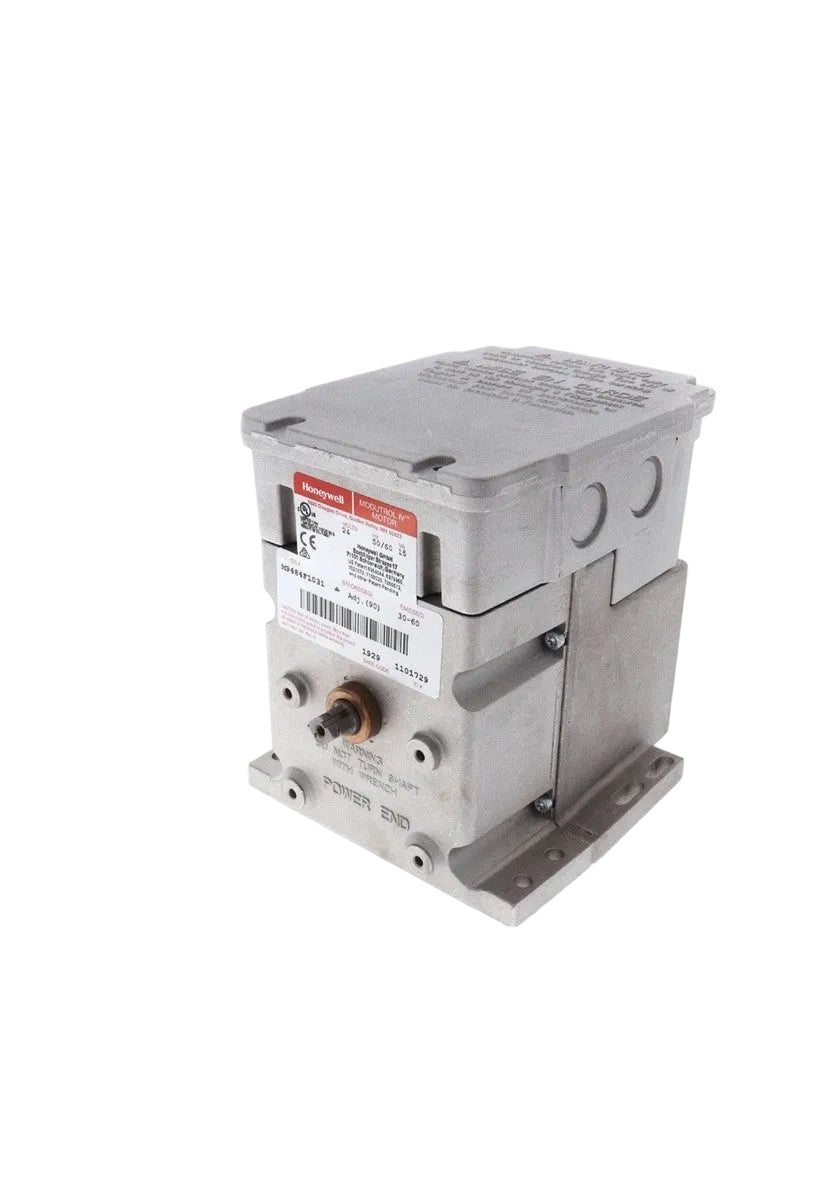

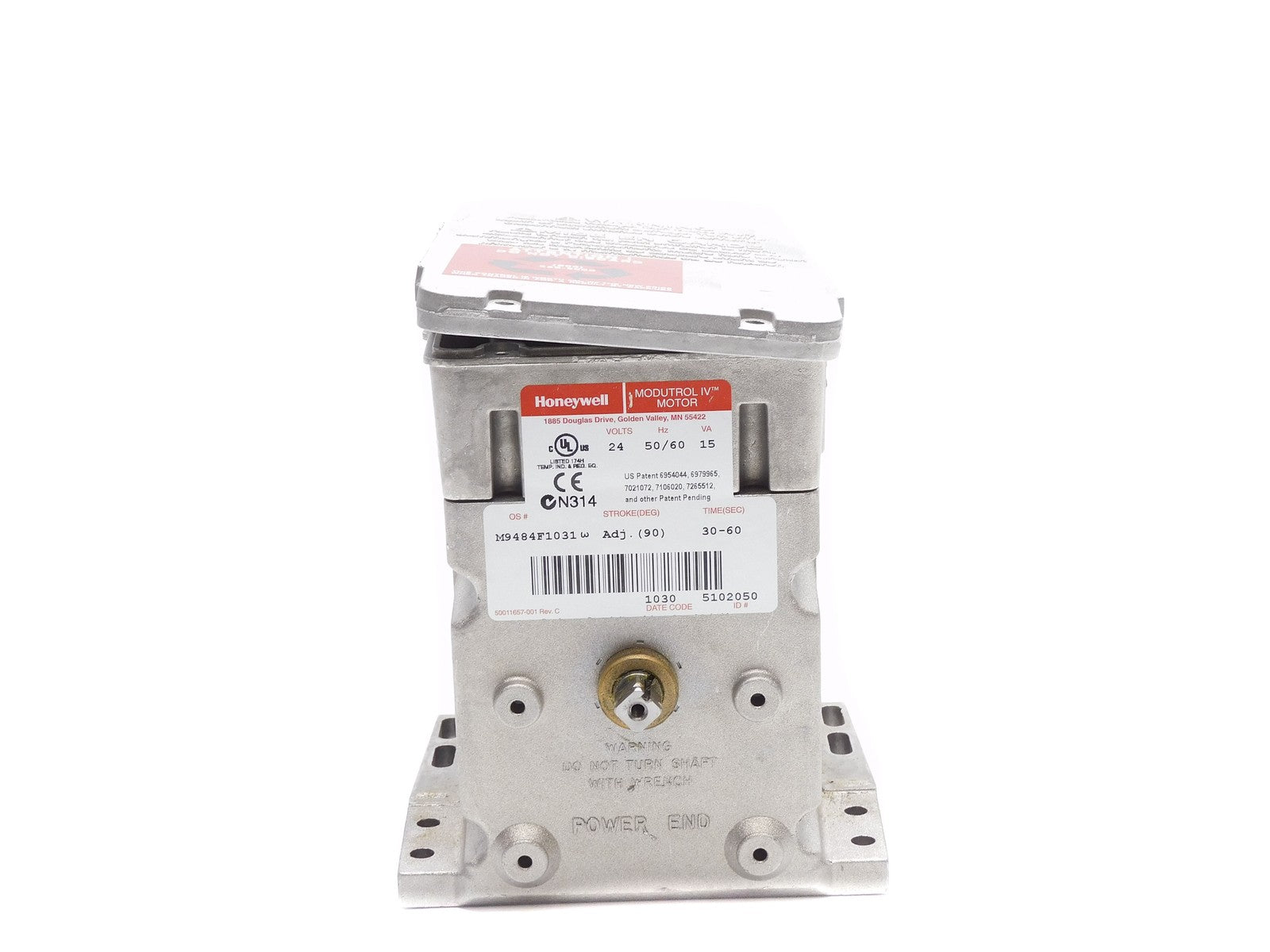

Honeywell M9484F1031 Proportional HVAC Actuator 150 lb-in 24 VAC
- Regular price
- $1,945.00
- Sale price
- $1,945.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9484F1031
Description
The Honeywell M9484F1031 is a proportional HVAC actuator designed for precise control of dampers and valves. It operates on 24 VAC and provides 150 lb-in of torque with a 135-ohm input signal, two internal auxiliary switches, and an adjustable 90° to 160° stroke.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M9484F1031 |
| Subcategory | HVAC Actuators |
| Product Type | Proportional Motor |
| Power Supply | 24 VAC, 50/60 Hz |
| Input Signal | 135 Ohm |
| Torque | 150 lb-in |
| Auxiliary Switches | 2 Internal |
| Stroke | Adjustable, 90° to 160° |
| 90° Stroke Timing | 30 seconds |
| 160° Stroke Timing | 60 seconds |
| Shaft | Double-ended, 3/8-inch square |
| Power Consumption | 15 W |
| Ambient Temperature Range | -40°F to 150°F |
| Dimensions | 6.45 × 5.5 × 7.3 in |
| Weight | 6.00 lbs |
Information About M9484F1031
The M9484F1031 is part of the Honeywell M9484F series of proportional motors for HVAC control applications. It uses a vibration-resistant electronic drive circuit and a three-wire proportional controller for actuator operation. The double-ended 3/8-inch square shaft supports mechanical connection to compatible dampers and valves. Its adjustable stroke can be configured from 90° to 160°, with different operating times depending on the selected stroke.
Key Features:
- Proportional Motor: Designed for proportional control of compatible HVAC dampers and valves.
- 24 VAC Operation: Uses a 24 VAC power supply at 50/60 Hz.
- 135 Ohm Input: Operates with a 135-ohm proportional control signal.
- Torque Rating: Provides 150 lb-in of actuator torque.
- Auxiliary Switches: Includes two internal auxiliary switches for control applications.
- Adjustable Stroke: Supports symmetrical stroke adjustment from 90° to 160°.
- Stroke Timing: Provides 30-second timing for 90° stroke and 60-second timing for 160° stroke.
- Double-Ended Shaft: Features a double-ended 3/8-inch square shaft for mechanical installation.
The M9484F1031 delivers the reliability and precision required for proportional damper and valve control in HVAC systems.
