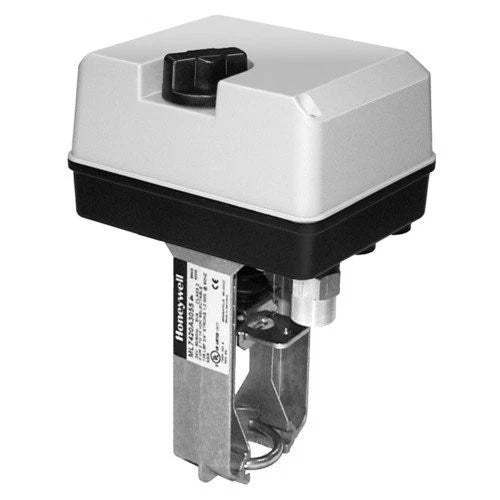

Honeywell ML7421A1032 405 lbf 24VAC Non-Spring Return Linear Globe Valve Actuator
- Regular price
- $932.00
- Sale price
- $932.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ML7421A1032
Description
The Honeywell ML7421A1032 is a direct-coupled linear-stroke electric valve actuator designed for modulating control of chilled water, hot water, and steam in commercial HVAC systems. Honeywell part number ML7421A1032 operates from 24 VAC power and provides 405 lbf (1800 N) of rated force with non-spring-return operation for accurate positioning of compatible V5011, V5013, and VGF Series globe valves.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Building Automation |
| Part Number | ML7421A1032 |
| Subcategory | Valve Actuators |
| Series | ML7421 Series |
| Product Type | Direct-Coupled Linear Valve Actuator |
| Actuator Operation | Modulating / Non-Spring Return |
| Rated Force | 405 lbf / 1800 N |
| Power Supply | 24 VAC |
| Frequency | 50/60 Hz |
| Control Signal | Modulating DC Control |
| Nominal Drive Time | Approx. 95 Seconds at 60 Hz |
| Nominal Stroke | 0.75 in (19 mm) |
| Manual Operation | Yes, Manual Operator Knob |
| Compatible Valves | Honeywell V5011, V5013 and Compatible VGF Series Globe Valves |
| Ambient Temperature | 14°F to 122°F (-10°C to 50°C) |
| Maximum Media Temperature | Approx. 300°F (149°C) |
| Auxiliary Switches | None |
| Approvals | UL / CSA |
| Weight | Approx. 4.95 lb (2.25 kg) |
Information About ML7421A1032
The ML7421A1032 is a Honeywell ML7421 Series non-spring-return actuator engineered for direct mounting on compatible linear-stroke globe valves. Its synchronous motor and electronic positioning system provide modulating valve control, while the high 405 lbf output force supports demanding applications including pressure-balanced VGF valves. Direct coupling eliminates separate linkage and associated linkage adjustments, and the integrated manual operator allows valve positioning during installation or service. Force-limiting end switches, low power consumption, approximately 95-second nominal drive time, and compatibility with 3/4-inch stroke valve assemblies make the actuator suitable for hydronic and steam control in air-handling, heating, cooling, and building automation systems.
Key Features:
- 405 lbf rated force: Provides approximately 1800 N of linear force for reliable positioning and high valve close-off capability.
- Non-spring-return operation: Electrically drives the valve without an automatic mechanical spring-return function.
- Modulating control: Provides proportional valve positioning from a compatible DC control signal.
- 24 VAC power: Operates from standard low-voltage power commonly used in commercial HVAC control systems.
- Direct-coupled mounting: Installs directly onto compatible Honeywell globe valves without a separate linkage assembly.
- Globe valve compatibility: Designed for compatible V5011, V5013, and VGF Series flanged globe valves.
- Synchronous motor: Provides controlled and repeatable linear actuator movement for precise valve positioning.
- Force-limiting end switches: Limits actuator force at the ends of travel to protect the actuator and connected valve.
- Manual operator: Integrated manual control permits valve positioning during commissioning and service.
- 95-second nominal runtime: Provides controlled valve travel with approximately 95-second drive timing at 60 Hz.
- High-temperature media application: Suitable for compatible hot-water and steam valve applications with media temperatures up to approximately 300°F.
- Maintenance-free design: Designed for long-term HVAC service without routine internal actuator maintenance.
The ML7421A1032 delivers the reliability and precision required for modulating chilled-water, hot-water, and steam valve control in commercial HVAC systems.
