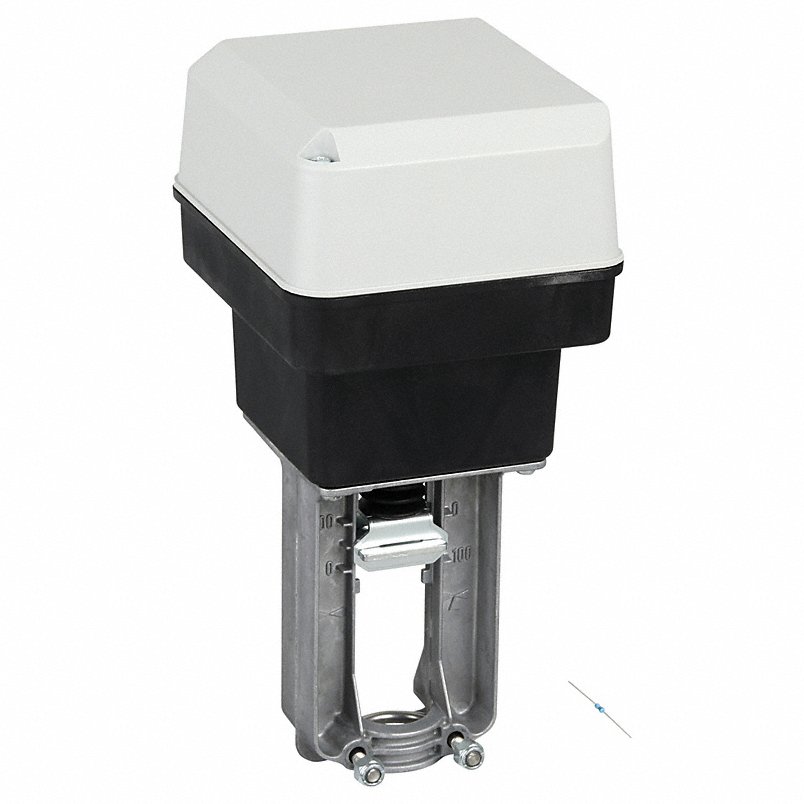

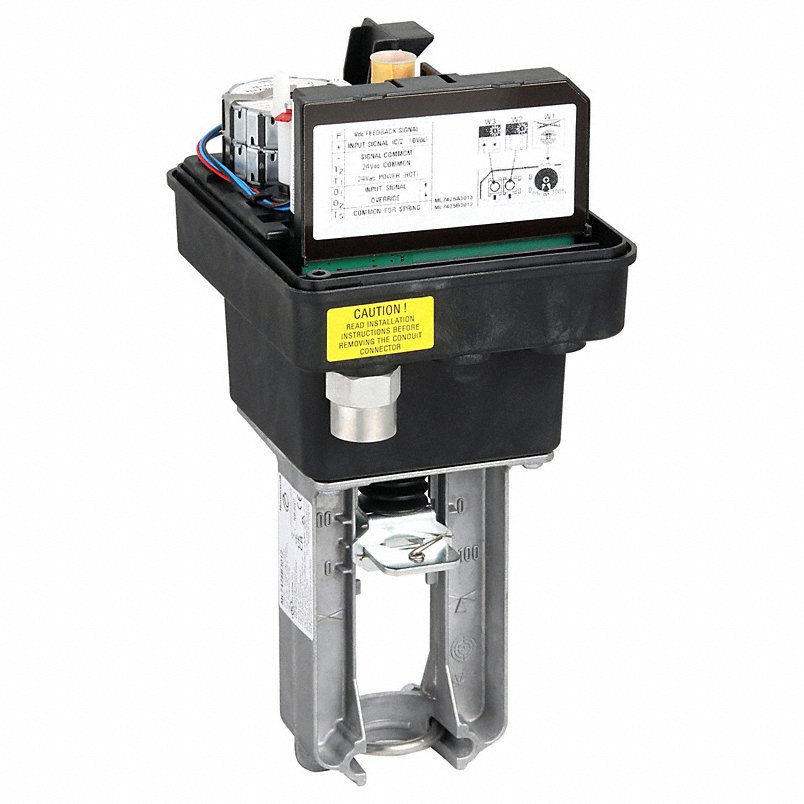

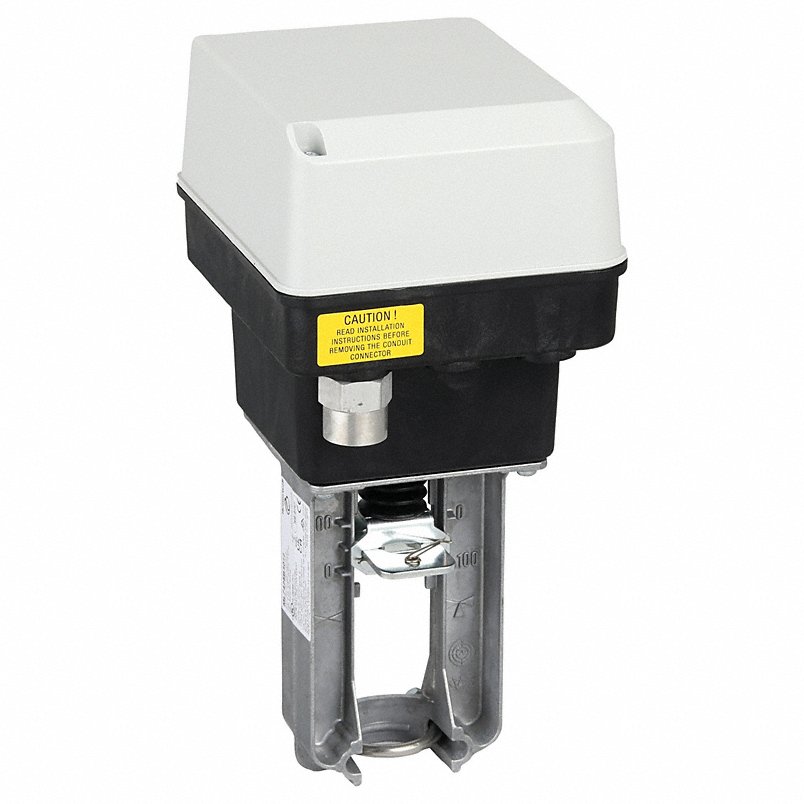

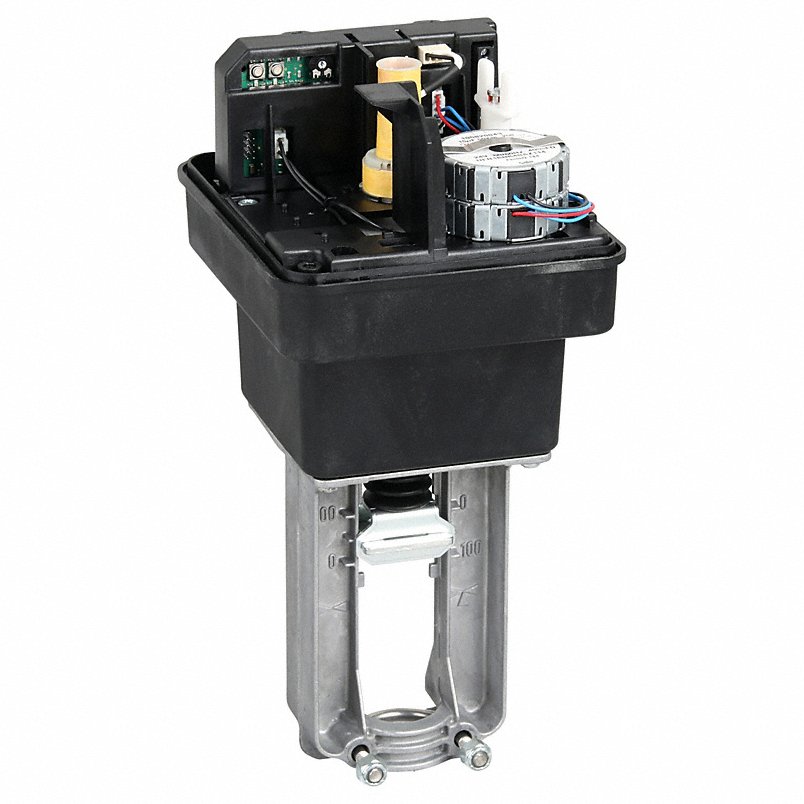

Honeywell ML7425B3012 Proportional Spring Return Electric Valve Actuator 24VAC
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ML7425B3012
Description
Honeywell ML7425B3012 is an electric spring-return valve actuator designed for proportional control of compatible HVAC globe valves. It operates on 24 VAC power, supports 0–10 VDC and 2–10 VDC control signals, and provides a 90-second nominal driving time for controlled valve positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | ML7425B3012 |
| Subcategory | Valve Actuators |
| Product Type | Electric Valve Actuator |
| Application | HVAC |
| Actuator Type | Proportional |
| Supply Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Control Signal | 0–10 VDC, 2–10 VDC |
| Fail-Safe Mode | Spring Return |
| Nominal Driving Time | 90 sec at 60 Hz |
| Manual Operation | Manual Override Winding |
| Mounting | Direct Mount |
| Compatible Valves | V5011, V5013, VGF Flanged Globe Valves |
| Compatible Valve Stroke | 3/4 in (20 mm) |
| Ambient Temperature Range | 14°F to 122°F |
| Weight | 5.1 lb |
Information About ML7425B3012
The ML7425B3012 is a Honeywell electric valve actuator designed for HVAC water and hydronic control applications. Its construction supports direct mounting on compatible V5011 and V5013 globe valves and VGF flanged globe valves with 3/4-inch or 20 mm stroke configurations. The actuator combines proportional control with spring-return fail-safe functionality and provides manual override winding for servicing or positioning without normal powered operation. Compatibility with 50/60 Hz systems and standard 24 VAC control power enables integration into a range of commercial HVAC control systems.
Key Features:
- Proportional Control: Supports 0–10 VDC and 2–10 VDC control signals for modulating valve positioning.
- Spring Return Function: Provides fail-safe return operation when actuator power is interrupted.
- 24 VAC Operation: Designed for standard 24 VAC HVAC control power systems.
- 90-Second Timing: Provides a nominal 90-second driving time at 60 Hz for controlled valve movement.
- Direct Valve Mounting: Mounts directly on compatible Honeywell V5011, V5013, and VGF globe valves.
- Manual Override: Includes manual override winding for valve positioning during installation or servicing.
- Globe Valve Compatibility: Supports compatible valve assemblies with a 3/4-inch or 20 mm stroke.
- HVAC Application: Designed for automated valve positioning in heating, ventilation, and air-conditioning systems.
The ML7425B3012 delivers the reliability and precision required for proportional globe valve positioning and fail-safe HVAC flow control.
