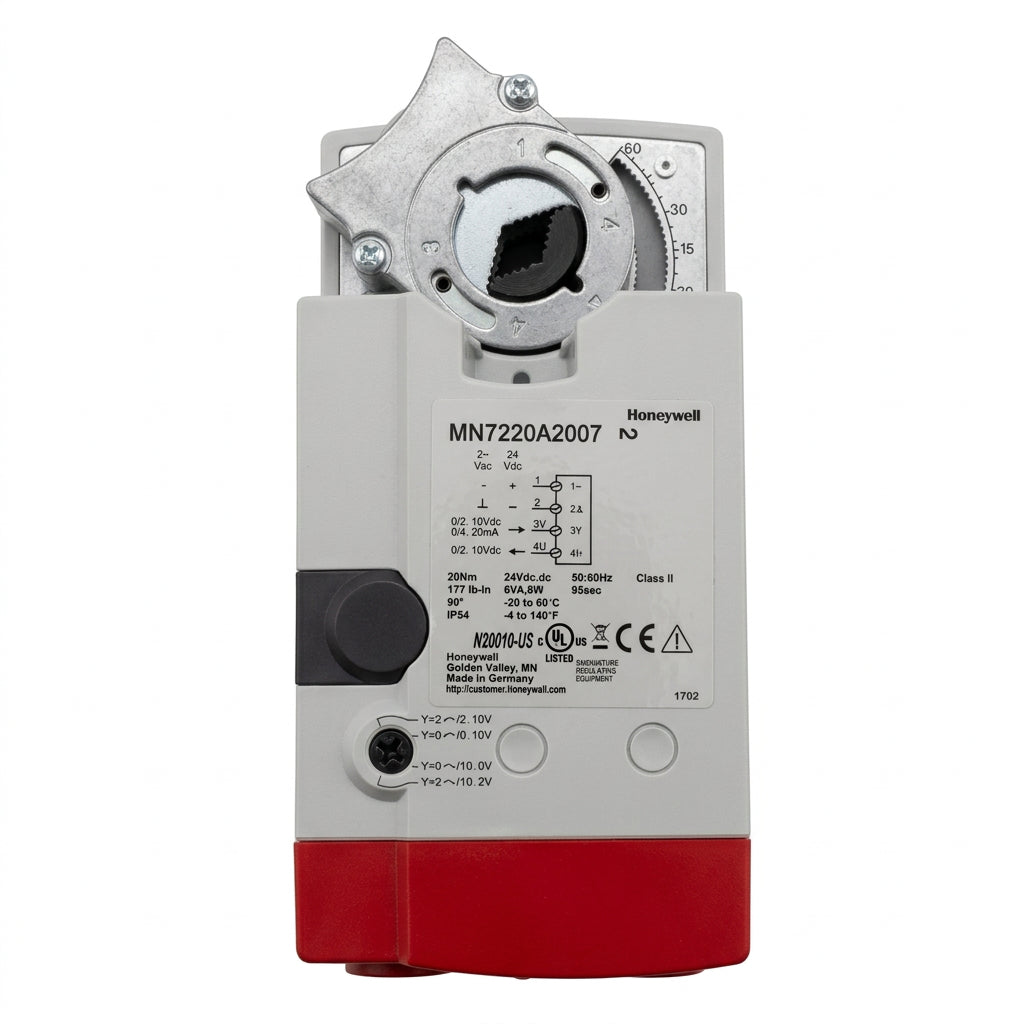

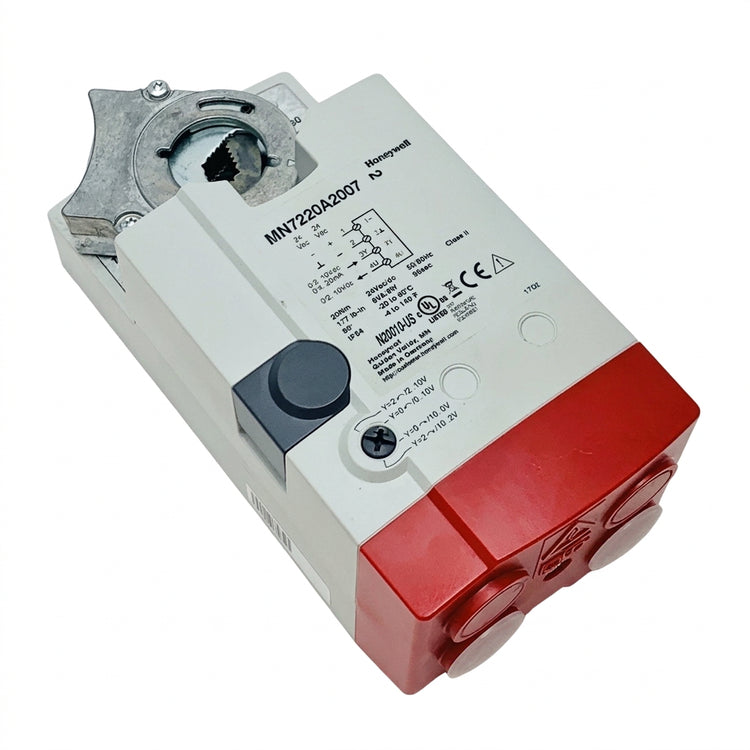

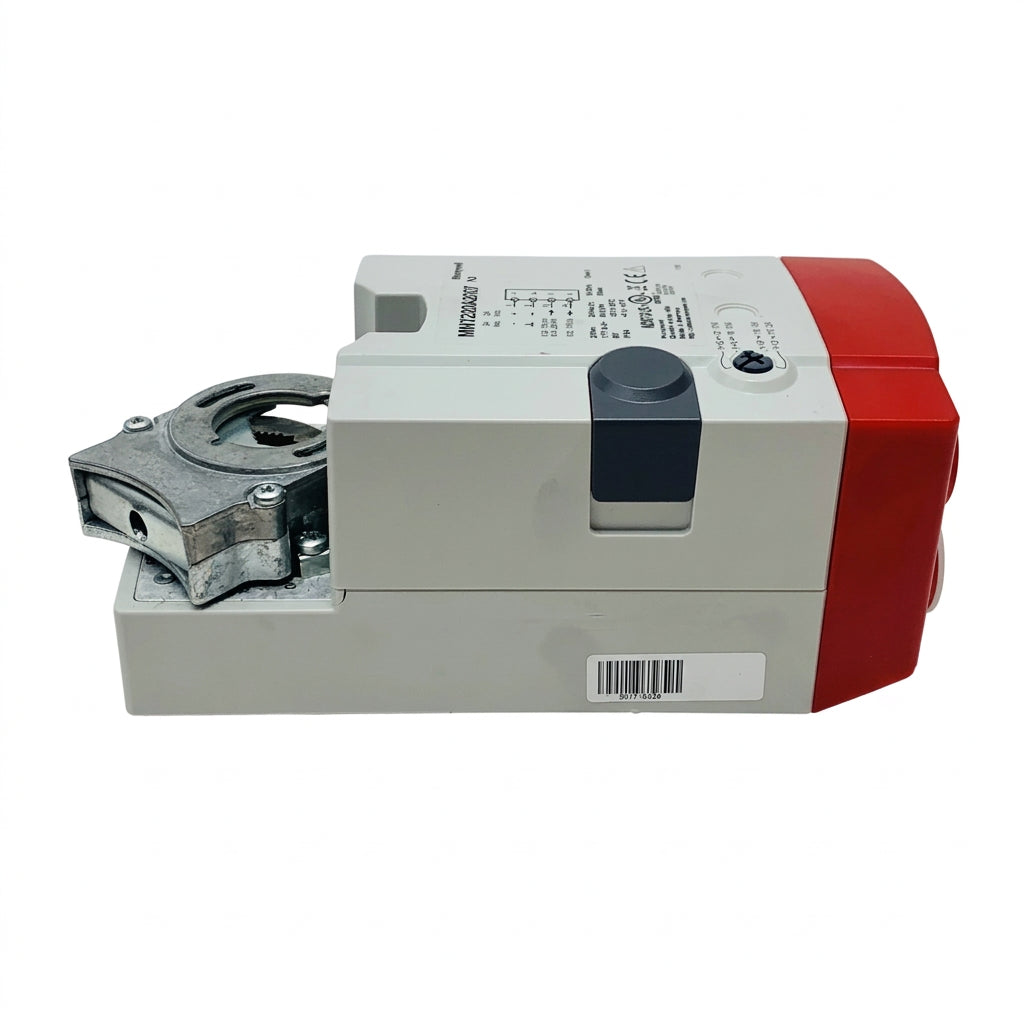

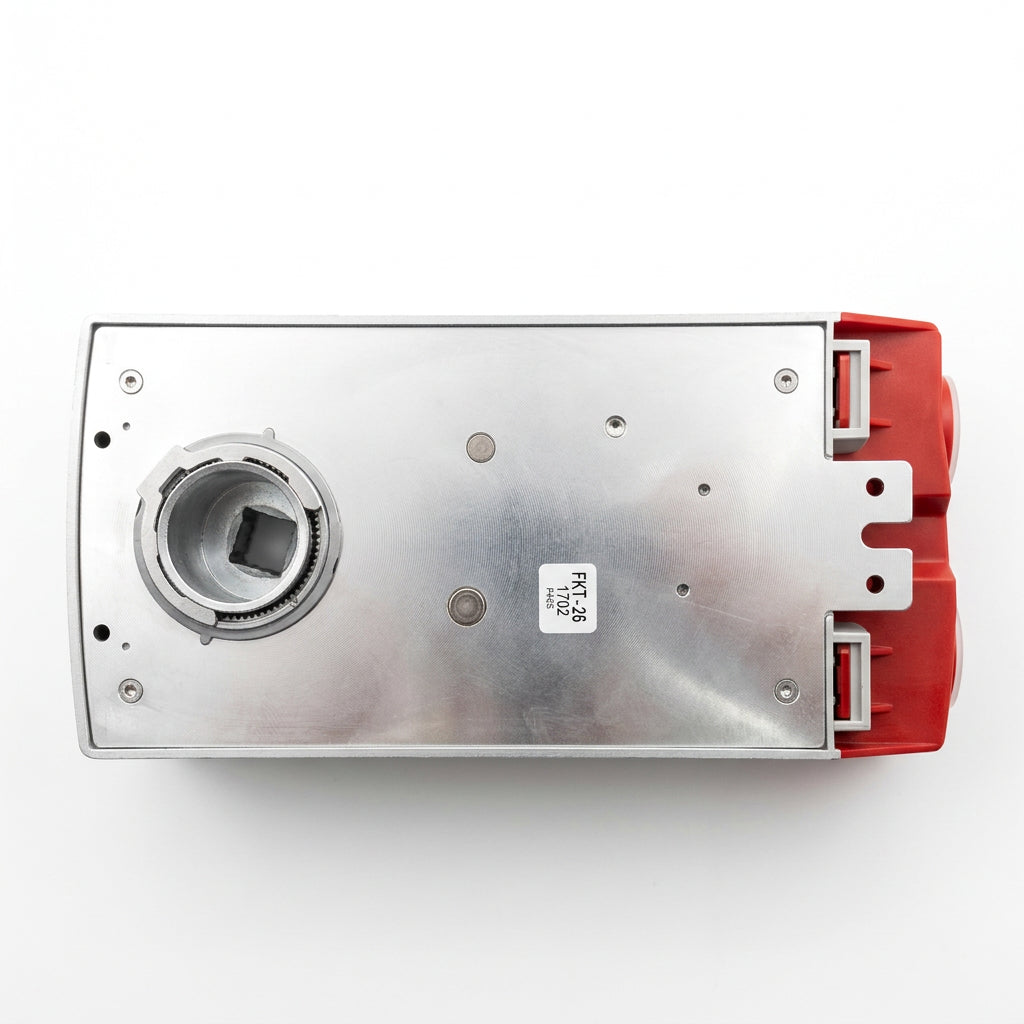

Honeywell MN7220A2007 Modulating Non-Spring Return Direct-Coupled Damper Actuator
- Regular price
- $477.00
- Sale price
- $477.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MN7220A2007
Description
The Honeywell MN7220A2007 is a non-spring-return, direct-coupled actuator that provides 175 lb-in of torque for HVAC dampers and compatible valve assemblies. It uses adjustable modulating control to position air dampers, ventilation flaps, louvers, and other supported control elements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | MN7220A2007 |
| Subcategory | Non-Spring Return Damper Actuators |
| Series | N20 |
| Supply Voltage | 24 VAC ±20% or 24 VDC −10%/+20% |
| Supply Frequency | 50/60 Hz with AC supply |
| Control Signal | 0–10 or 2–10 VDC; 4–20 mA with 500-ohm input resistance |
| Input Impedance | Voltage: 100 kΩ; current: 500 Ω |
| Rated Torque | 175 lb-in (20 N·m) |
| Maximum Stall Torque | 257 lb-in (29 N·m) |
| Return Mechanism | Non-spring return |
| Angular Stroke | 95° ±3°; dual stops adjustable in 3° increments |
| Nominal Driving Time | 95 seconds at 60 Hz; 110 seconds at 50 Hz |
| Driving Power Consumption | 6 VA / 6 W |
| Mounting and Manual Operation | Direct coupled, self-centering adapter; manual declutch |
| Ambient Operating Temperature | −5°F to 140°F (−20°C to 60°C) |
| Weight | 2.98 lb (1.35 kg) |
Information About MN7220A2007
The MN7220A2007 is part of Honeywell’s N20 actuator series. Its self-centering shaft adapter provides a direct mechanical connection to compatible round or square shafts. A direction switch selects the opening rotation, while adjustable mechanical stops establish the required travel limits. The actuator remains in position when power is removed and includes a declutch mechanism for manual adjustment.
Key Features:
- Modulating Control: Accepts 0–10 VDC or 2–10 VDC signals for proportional positioning.
- Current Input Compatibility: Supports 4–20 mA control with a specified 500-ohm input resistance.
- Rated Output Torque: Provides 175 lb-in (20 N·m) for compatible HVAC control applications.
- Non-Spring-Return Operation: Remains in its existing position following loss of supply power.
- Direct Shaft Connection: Uses a self-centering adapter to clamp onto the driven shaft.
- Adjustable Stroke Limits: Includes two mechanical stops adjustable in 3° increments.
- Selectable Rotation: Allows the powered opening direction to be changed by switch.
- Manual Declutch: Disengages the gear train for manual shaft positioning with power removed.
The MN7220A2007 delivers the reliability and precision required for modulating damper and valve positioning in compatible HVAC systems.
