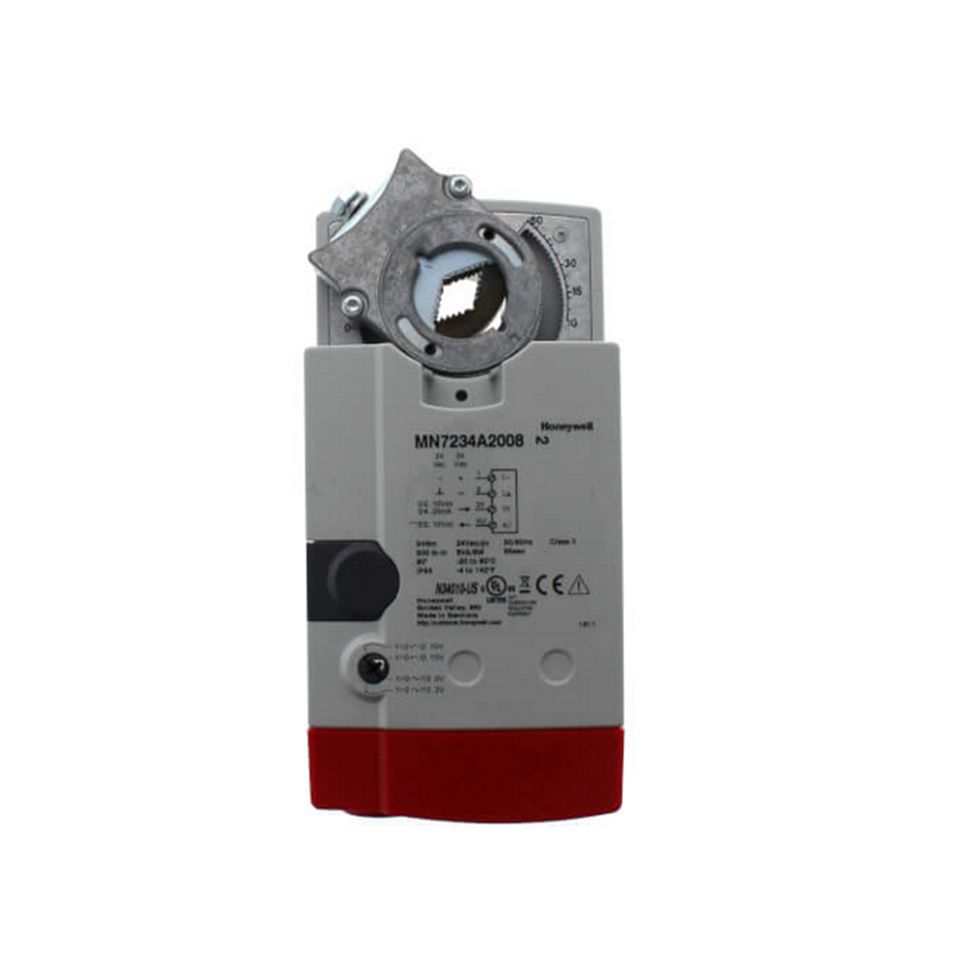

Honeywell MN7234A2008 24V Non-Spring Return Damper Actuator 300 lb-in
- Regular price
- $925.00
- Sale price
- $925.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MN7234A2008
Description
Honeywell MN7234A2008 is a 24 V direct-coupled damper actuator designed for modulating control of dampers and quarter-turn valves in HVAC systems. It provides 300 lb-in of torque with non-spring return operation, adjustable 0/2–10 Vdc control, and a 95-second drive time. The actuator is suitable for air handling units, ventilation flaps, louvers, and other HVAC final control elements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | MN7234A2008 |
| Subcategory | HVAC Actuator |
| Actuator Type | Direct Coupled |
| Operation Type | Non-Spring Return |
| Control Signal | Adjustable 0/2–10 Vdc |
| Supply Voltage | 24 VAC/DC |
| Frequency | 50/60 Hz |
| Power Consumption | 8 VA / 8 W maximum driving |
| Torque | 300 lb-in (34 Nm) |
| Drive Time | 95 seconds |
| Housing Material | Plenum-Rated Plastic |
| Shaft Diameter Range | 3/8 to 1.06 in |
| Operating Temperature | -5°F to 140°F |
| Approvals | UL 873, CUL C22.2, CE, C-Tick N314 |
| Weight | 3.63 lbs |
Information About MN7234A2008
The MN7234A2008 is part of Honeywell’s MN7234 series of low-voltage, non-spring return direct-coupled actuators for HVAC applications. Its plenum-rated plastic housing and NEMA 2 enclosure support installation in a range of indoor air distribution and mechanical equipment environments. The actuator includes a declutch mechanism for manual adjustment, mechanical end limits, a selectable rotation direction, and a self-centering shaft adapter for direct coupling. Electrical connection is provided through an integral 1/2-inch NPSM conduit connection with an enclosed screw terminal strip compatible with 22–14 AWG wiring.
Key Features:
- Direct-Coupled Design: Provides direct mechanical control of HVAC dampers and quarter-turn final control elements.
- Non-Spring Return Operation: Maintains commanded position without spring-return functionality and includes a declutch mechanism for manual positioning.
- High Torque Output: Delivers 300 lb-in (34 Nm) of torque for demanding damper and valve applications.
- Modulating Control: Accepts adjustable 0/2–10 Vdc control signals for proportional actuator positioning.
- Low-Voltage Power: Operates from 24 VAC/DC with a maximum driving power requirement of 8 VA or 8 W.
- Adjustable Rotation: Includes selectable rotation direction and mechanical end limits for controlled positioning.
- Installation Flexibility: Can be mounted in any orientation and includes a mechanical position indicator.
- Service-Friendly Construction: Features an access cover for connectivity and provisions for field-installable auxiliary switches.
The MN7234A2008 delivers the reliability and precision required for HVAC damper and quarter-turn valve control.
