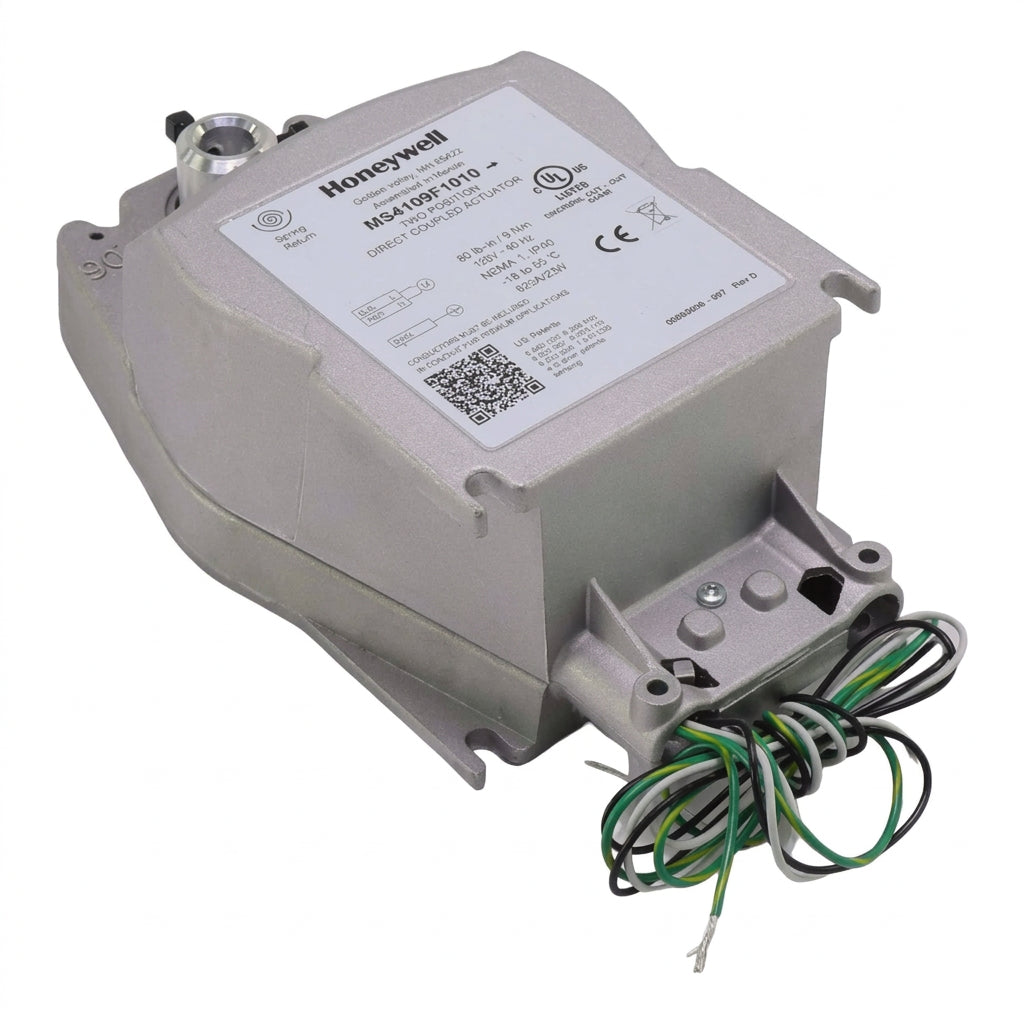

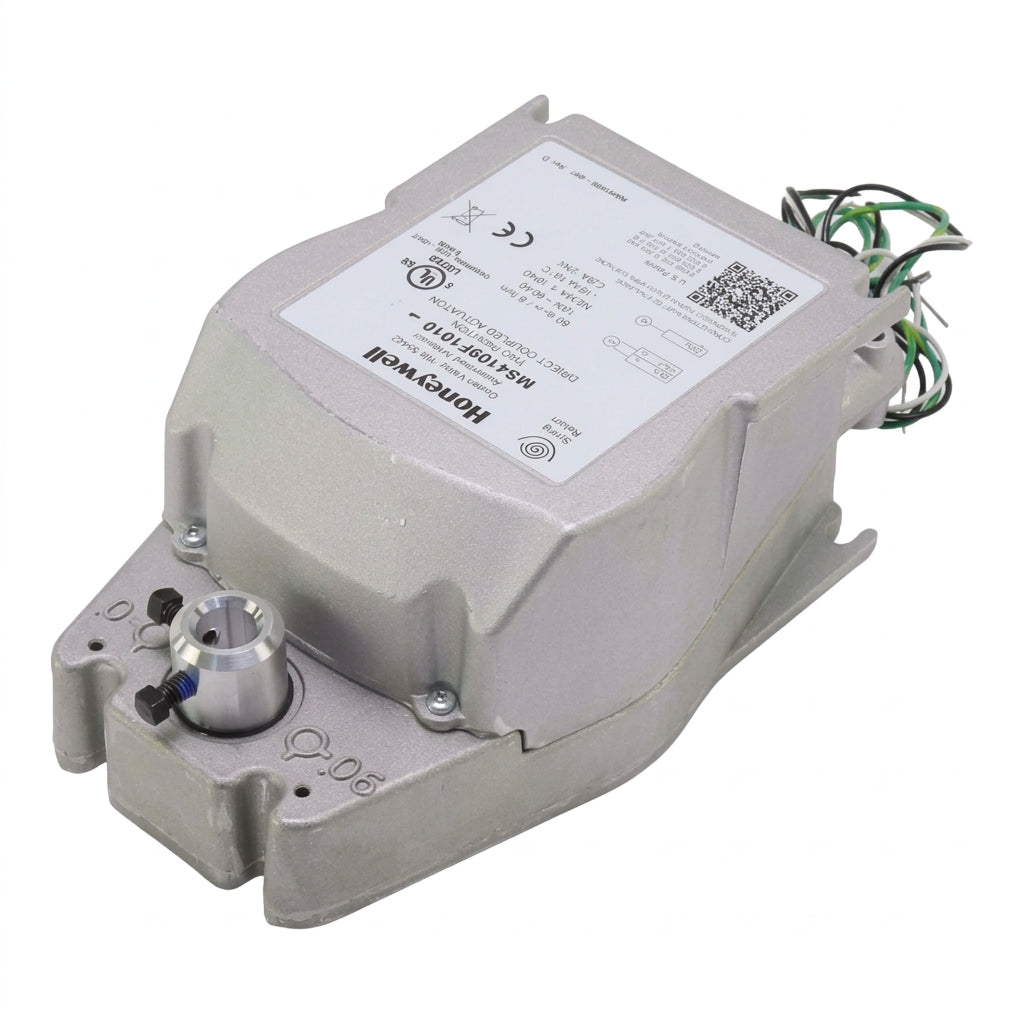

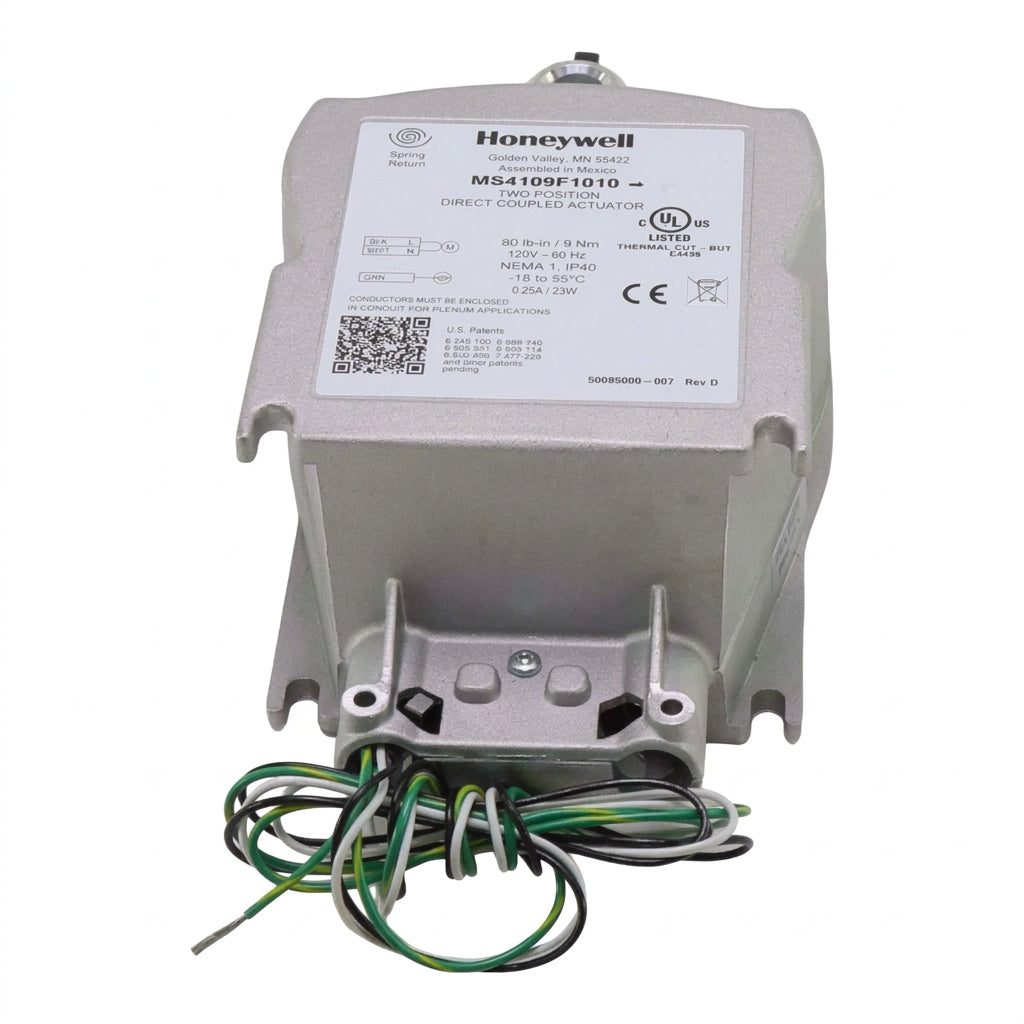

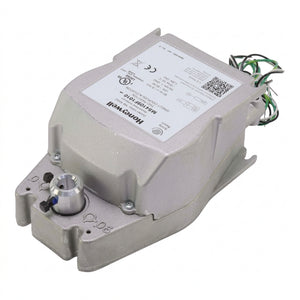

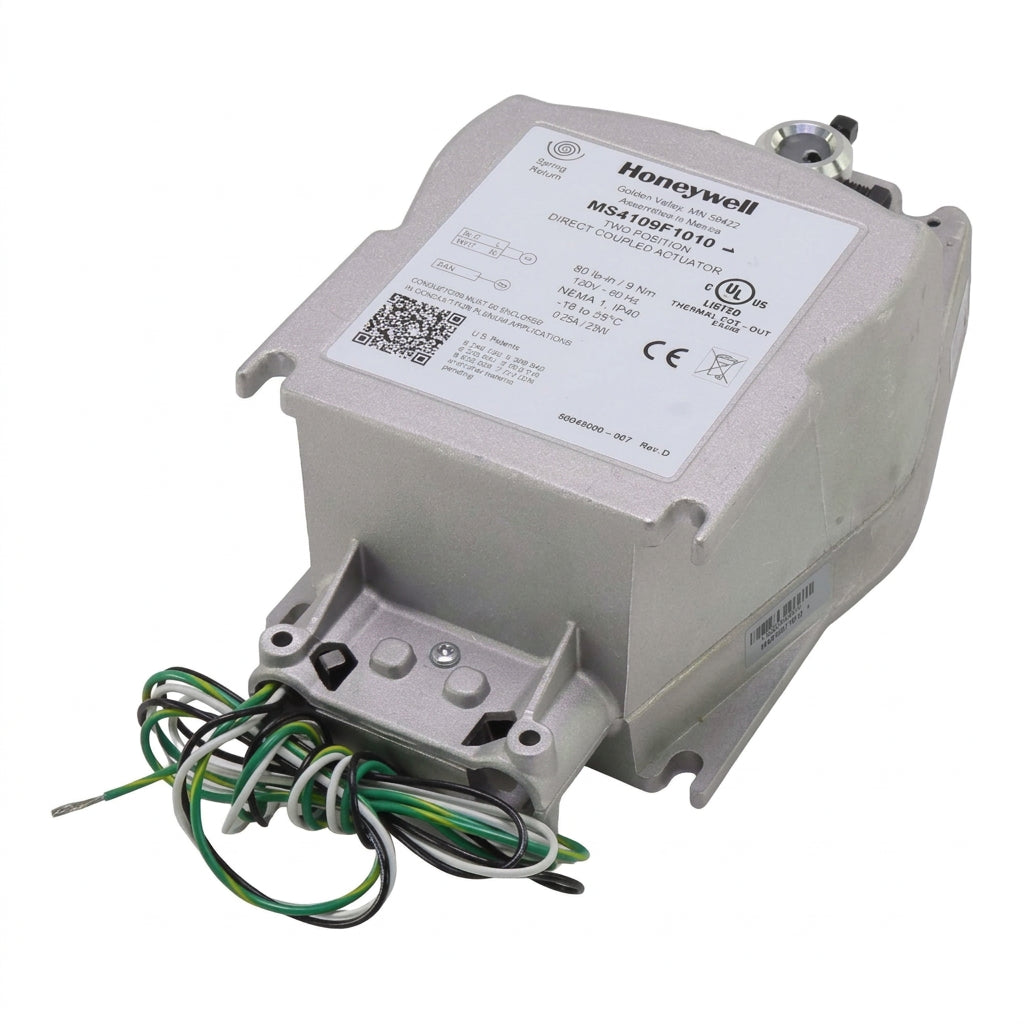

Honeywell MS4109F1010 Fast-Acting Two-Position Spring Return Fire and Smoke Damper Actuator
- Regular price
- $612.00
- Sale price
- $612.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS4109F1010
Description
The Honeywell MS4109F1010 is a fast-acting, two-position actuator for operating fire and smoke dampers. It provides 80 lb-in of torque from a 120 VAC supply and uses spring return to move the damper to its return position when power is removed.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | MS4109F1010 |
| Subcategory | Fire and Smoke Damper Actuators |
| Series | MS4109 |
| Control Type | Two-position, SPST |
| Supply Voltage | 120 VAC ±10% |
| Frequency | 50/60 Hz |
| Rated Torque | 80 lb-in (9 N·m) |
| Fail-Safe Mechanism | Spring return |
| Spring-Return Direction | CW or CCW, determined by mounting orientation |
| Typical Operating Time | Powered opening: 15 seconds; spring closing: 15 seconds |
| Angular Stroke | 95° ±3°, mechanically limited |
| Mounting Type | Direct coupled |
| Enclosure Rating | NEMA 1 / IP40 |
| Ambient Operating Temperature | 0°F to 130°F (−18°C to 55°C) |
| Shipping and Storage Temperature | −40°F to 140°F (−40°C to 60°C) |
| Weight | 5 lb (2.3 kg) |
Information About MS4109F1010
The MS4109F1010 is part of Honeywell’s MS4109 direct-coupled actuator series. Its reversible mounting arrangement supports either clockwise or counterclockwise spring-return rotation. The actuator accepts an on/off signal from an SPST controller and mounts directly to a compatible damper shaft. This model has no internal auxiliary switches and uses a die-cast aluminum housing.
Key Features:
- Two-Position Control: Provides on/off operation for compatible fire and smoke dampers.
- Spring Return: Mechanically returns the damper when electrical power is removed.
- Rated Torque: Supplies 80 lb-in (9 N·m) for damper operation.
- Fast Actuation: Typical powered opening and spring-return closing times are 15 seconds each.
- Reversible Mounting: Allows clockwise or counterclockwise spring-return operation according to installation orientation.
- Direct Shaft Coupling: Transfers actuator torque directly to the damper shaft.
- Angular Stroke: Provides mechanically limited travel of 95° ±3°.
- Enclosure Protection: Features a NEMA 1 / IP40 enclosure.
The MS4109F1010 delivers the reliability and precision required for two-position fire and smoke damper control.
