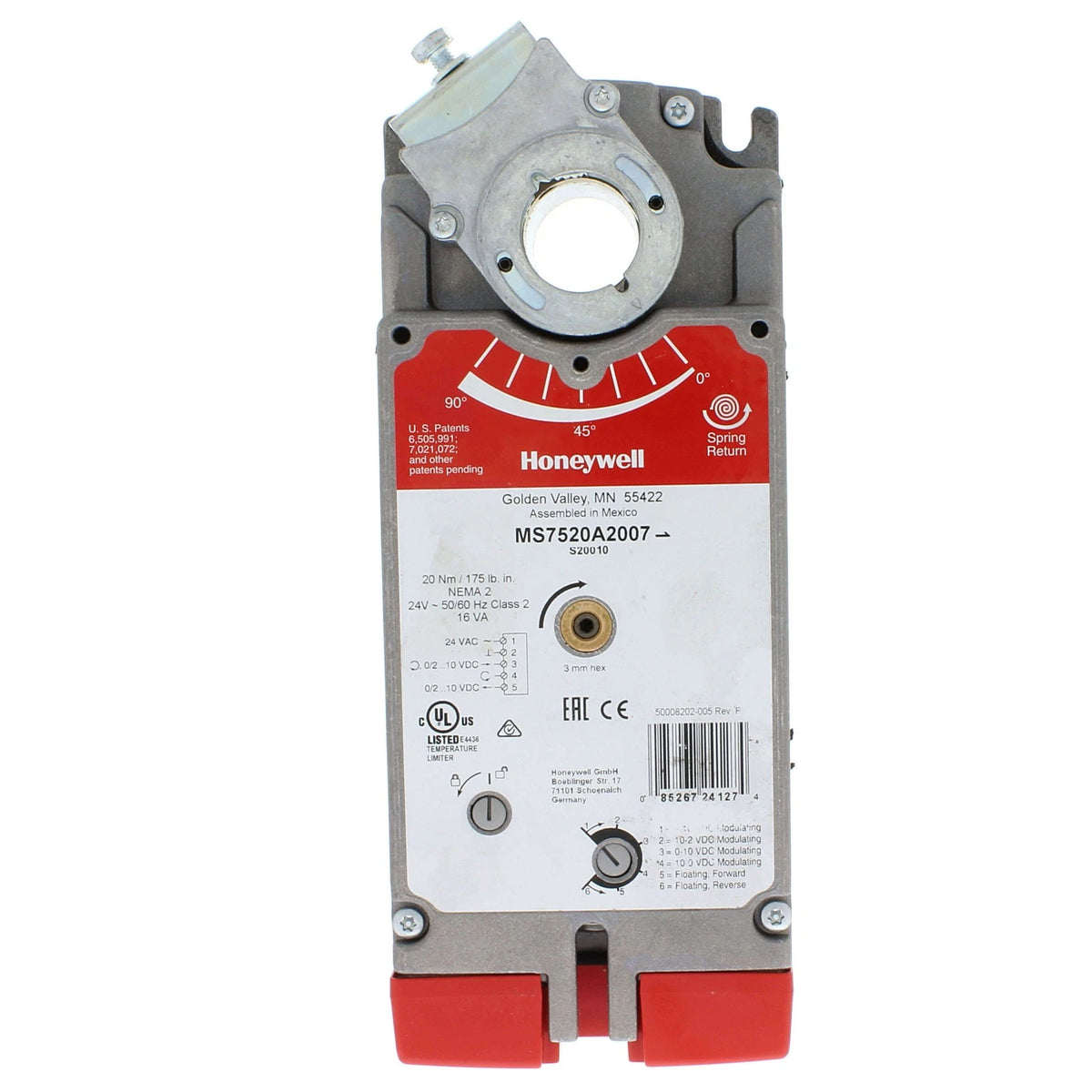

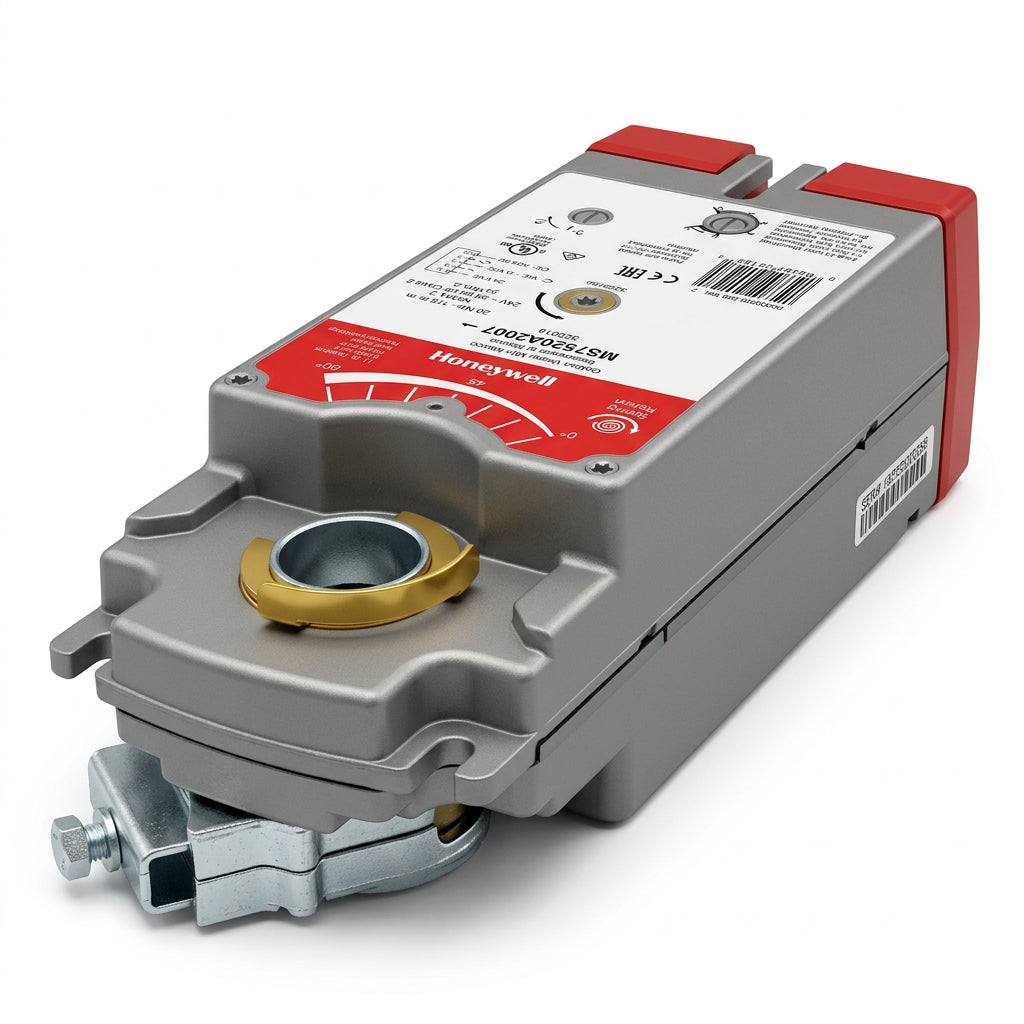

Honeywell MS7520A2007 Floating and Modulating Spring Return Damper Actuator
- Regular price
- $689.00
- Sale price
- $689.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS7520A2007
Description
The Honeywell MS7520A2007 is a spring-return damper actuator that supplies 175 lb-in of torque for HVAC airflow control. It supports floating, modulating, and on/off operation, allowing integration with compatible building control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | MS7520A2007 |
| Subcategory | Spring Return Damper Actuators |
| Series | MSXX20 |
| Control Modes | Floating, modulating, and two-position SPST |
| Control Inputs | 0–10 VDC or 2–10 VDC; 4–20 mA with a 500-ohm resistor |
| Supply Voltage | 24 VAC ±20% or 24 VDC |
| Supply Frequency | 50/60 Hz with AC supply |
| Rated Torque | 175 lb-in (20 N·m) |
| Mounting and Coupling | Direct coupled; self-centering shaft clamp |
| Fail-Safe Operation | Spring return; direction determined by mounting orientation |
| Powered Opening Direction | Switch selectable |
| Angular Stroke | 95° ±3°; mechanically adjustable in 5° increments |
| Operating Times | Nominal powered travel: 90 seconds; spring return: less than 25 seconds |
| Manual Operation | Manual crank |
| Ambient Conditions | −40°F to 140°F; 5–95% RH, non-condensing |
| Enclosure Rating | NEMA 2 when mounted on a horizontal shaft with the access cover below the shaft |
| Weight | 6 lb (2.7 kg) |
Information About MS7520A2007
The MS7520A2007 is part of Honeywell’s MSXX20 series of direct-coupled actuators. Its self-centering shaft adapter secures the actuator to a compatible damper shaft. Mounting orientation determines the spring-return direction, while a switch selects the powered opening direction. A manual crank provides positioning capability during installation and servicing.
Key Features:
- Multiple Control Modes: Supports floating, proportional, and two-position operation.
- Modulating Input: Accepts 0–10 VDC or 2–10 VDC control signals.
- Current Signal Compatibility: Supports 4–20 mA control when used with a 500-ohm resistor.
- Output Torque: Provides 175 lb-in (20 N·m) for driving compatible dampers.
- Spring Return: Mechanically returns the actuator when supply power is removed.
- Self-Centering Coupling: Clamps directly onto a compatible damper shaft.
- Adjustable Travel: Provides a 95° ±3° stroke with mechanical adjustment in 5° increments.
- Manual Positioning: Includes a manual crank for positioning without powered operation.
The MS7520A2007 delivers the reliability and precision required for controlled damper positioning and spring-return operation in HVAC systems.
