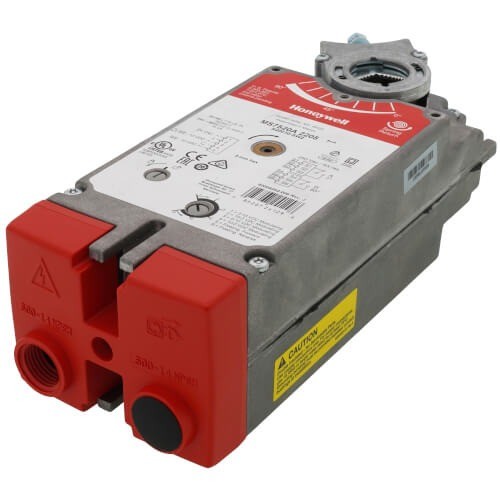

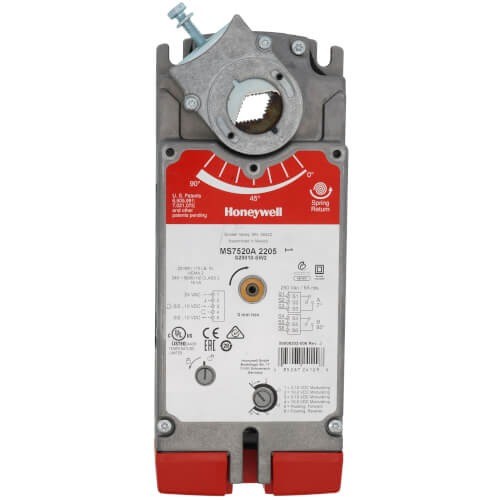

Honeywell MS7520A2205 24 VAC Spring Return 175 lb-in Damper Actuator
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS7520A2205
Description
The Honeywell MS7520A2205 is a direct-coupled damper actuator with 24 VAC spring-return operation and 175 lb-in of torque. It supports floating and modulating control and is designed for airflow regulation in compatible HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | MS7520A2205 |
| Subcategory | HVAC Actuators |
| Power Supply | 24 VAC ±20% |
| Torque | 175 lb-in |
| Control Type | Floating, Modulating |
| Timing | 20 sec Spring Return, 90 sec Nominal at 60 Hz |
| Operating Temperature | -40°F to 140°F |
| Shaft Adapter | Self-Centering Clamping |
| Electrical Connections | Enclosed Screw Terminal Strip |
| Mounting | Direct Coupled |
| Submotor | Brushless DC with electronic stall protection |
| Approvals | UL Listed, CE Compliant |
| Weight | 7.3 lbs |
Information About MS7520A2205
The MS7520A2205 is a Honeywell damper actuator designed for direct-coupled installation on HVAC dampers. It uses a self-centering shaft adapter to accommodate a range of compatible damper shaft sizes. The actuator incorporates electronic stall protection and a field-selectable spring-return direction for flexible system configuration. Its enclosed screw terminal strip, mechanical end limits, and position indicator support installation and adjustment in HVAC control applications.
Key Features:
- Spring Return: Provides spring-return operation for damper positioning and fail-safe control.
- Torque Rating: Delivers 175 lb-in of torque for compatible HVAC damper applications.
- Control Type: Supports floating and modulating control signals.
- Power Supply: Operates from 24 VAC with ±20% supply tolerance.
- Direct Coupling: Uses a direct-coupled mounting configuration for HVAC dampers.
- Shaft Adapter: Features a self-centering clamping shaft adapter for different shaft sizes.
- Stall Protection: Uses electronic stall protection to help protect the actuator motor.
- Operating Range: Designed for ambient temperatures from -40°F to 140°F.
The MS7520A2205 delivers the reliability and precision required for damper positioning and airflow control in HVAC systems.
