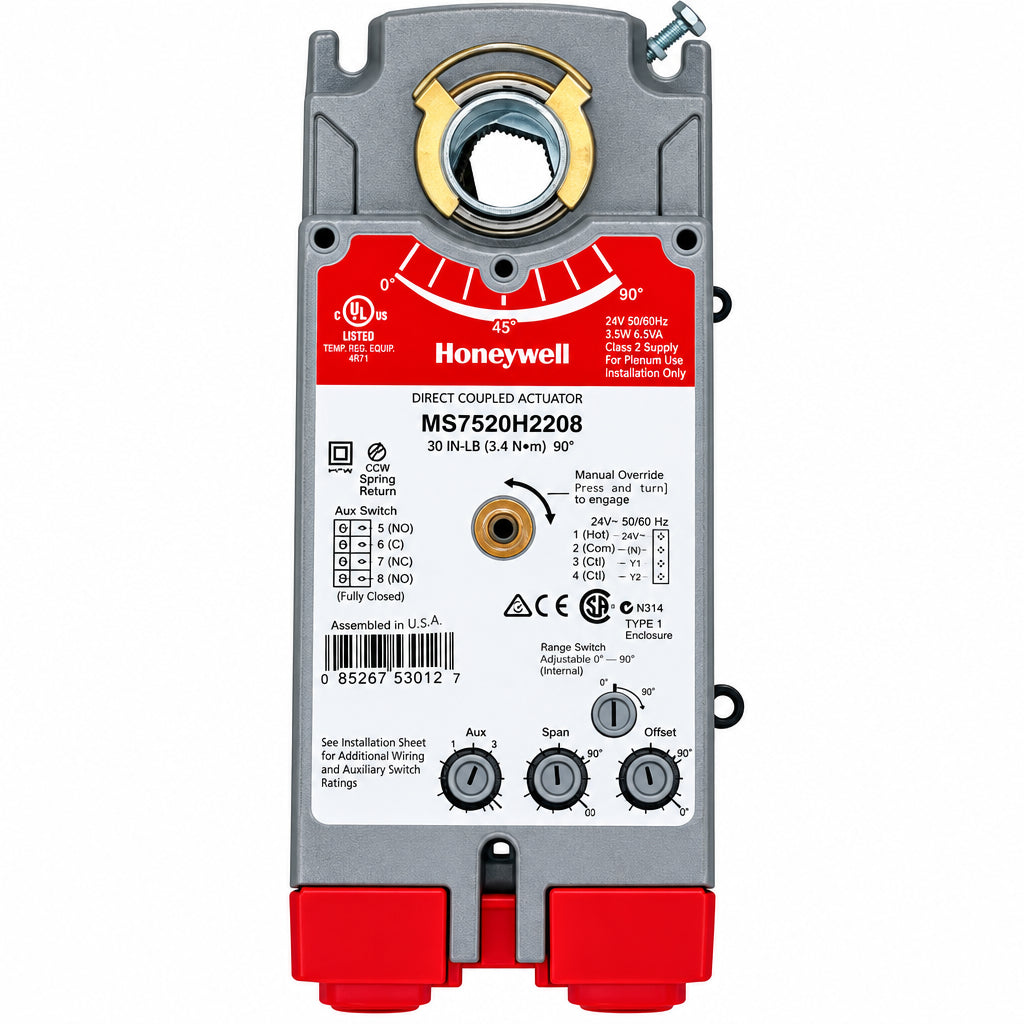

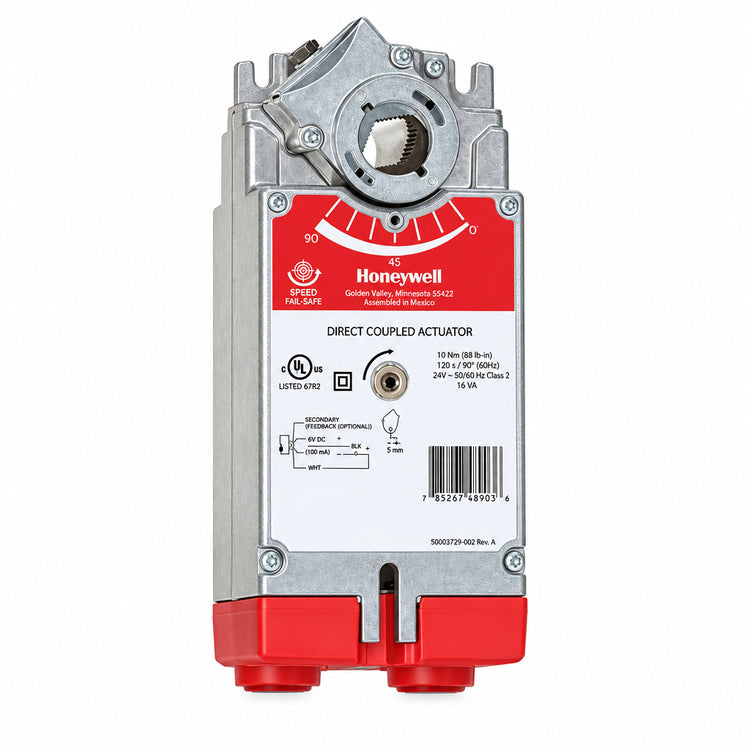

Honeywell MS7520H2208 175 lb-in Spring Return HVAC Actuator
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS7520H2208
Description
The Honeywell MS7520H2208 is an S20 Series direct-coupled spring-return actuator designed for controlling dampers and valves in HVAC and building automation systems. It provides 175 lb-in (20 Nm) of torque, 95° rotational travel, and operates from 24 VAC/VDC. The actuator supports floating-point and 2–10 VDC proportional control and includes two internal auxiliary switches.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Building Automation |
| Part Number | MS7520H2208 |
| Subcategory | Damper & Valve Actuators |
| Series | S20 |
| Device Type | Direct-Coupled Spring-Return Actuator |
| Application | Dampers and Valves |
| Supply Voltage | 24 VAC ±20% / 24 VDC |
| Frequency | 50/60 Hz |
| Torque Rating | 175 lb-in / 20 Nm |
| Control Signal | Floating / 2–10 VDC |
| Feedback | 2–10 VDC |
| Rotational Stroke | 95° ±3° |
| Nominal Timing | 90 seconds |
| Spring Return Timing | Approx. 20 seconds |
| Auxiliary Switches | 2 SPDT |
| Housing Rating | NEMA 2 |
| IP Rating | IP54 |
| Shaft Type | Self-Centering Clamping |
| Round Shaft Range | 3/8–1.06 in. |
| Square Shaft Range | 3/8–11/16 in. |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Humidity | 5–95% RH, non-condensing |
| Mounting | Direct Coupled |
| Weight | 6.18 lb |
Information About MS7520H2208
The MS7520H2208 is a Honeywell direct-coupled actuator with spring-return fail-safe operation. It is designed for quarter-turn dampers, ball valves, butterfly valves, cage valves, and globe valves. The actuator provides 175 lb-in of torque and a nominal 90-second operating time, with a 95° maximum rotational stroke. It also provides 2–10 VDC feedback and two adjustable auxiliary switches for position indication or control.
Key Features:
- 175 lb-in Torque: Provides approximately 20 Nm of torque for damper and valve positioning.
- Spring Return: Returns the controlled device to a fail-safe position when power is removed.
- Floating/Proportional Control: Supports floating-point and 2–10 VDC control signals.
- 24 VAC/VDC Operation: Designed for 24 VAC or 24 VDC power.
- 95° Rotation: Provides up to 95° of rotational travel for quarter-turn applications.
- Two Auxiliary Switches: Includes two internal SPDT auxiliary switches for position signaling.
- Direct Coupling: Mounts directly to compatible damper and valve shafts.
- Wide Shaft Compatibility: Supports round shafts from 3/8 to 1.06 inches and square shafts from 3/8 to 11/16 inches.
The MS7520H2208 delivers the control and positioning functions required for HVAC damper and valve applications.
