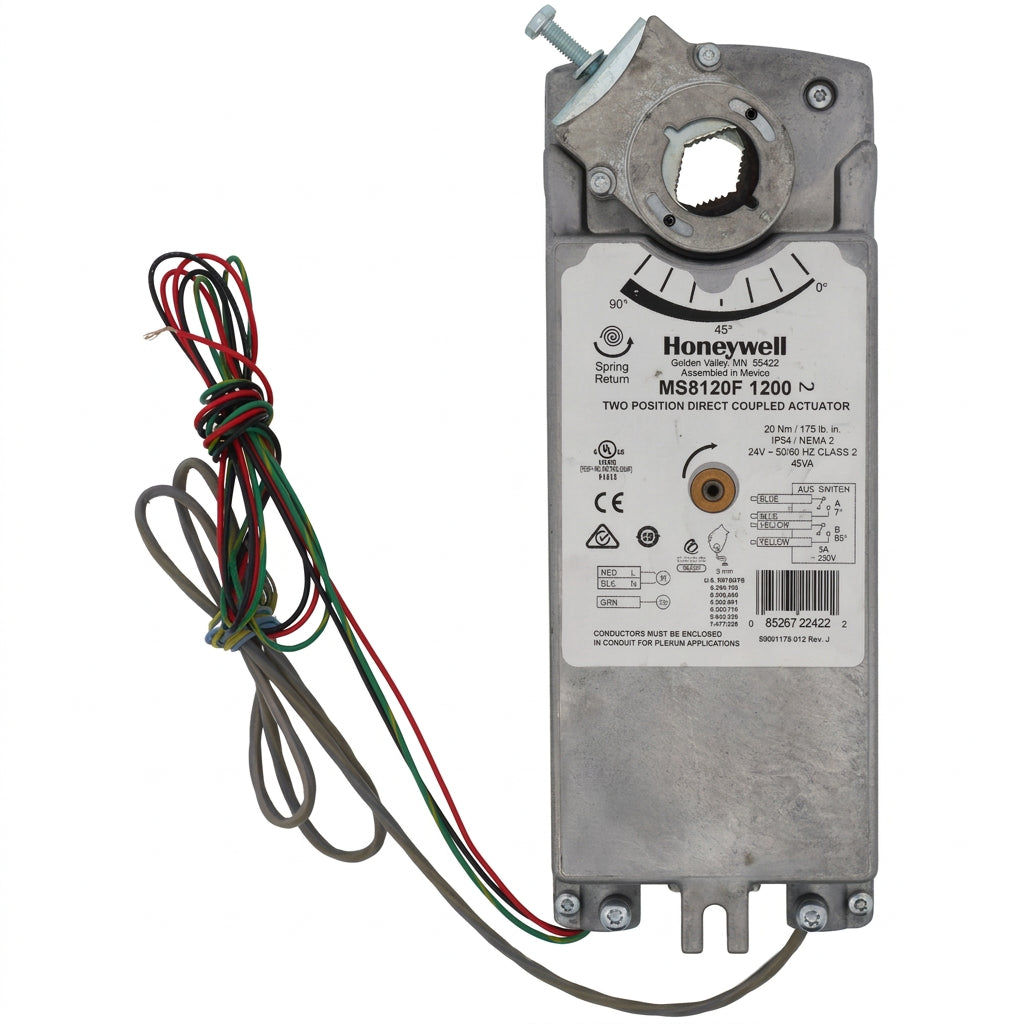

Honeywell MS8120F1200 Spring Return Fire and Smoke Damper Actuator with Auxiliary Switches
- Regular price
- $707.00
- Sale price
- $707.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS8120F1200
Description
The Honeywell MS8120F1200 is a fast-acting, two-position actuator for fire and smoke damper control. It provides 175 lb-in of torque from a 24 VAC supply and combines mechanical spring return with two internal auxiliary switches for position indication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | MS8120F1200 |
| Subcategory | Fire and Smoke Damper Actuators |
| Series | MS8120F |
| Control Type | Two-position, SPST |
| Supply Voltage | 24 VAC +20%/−10%, Class 2 |
| Frequency | 50/60 Hz |
| Rated Torque | 175 lb-in (20 N·m) |
| Fail-Safe Mechanism | Spring return |
| Spring-Return Direction | CW or CCW, determined by mounting orientation |
| Typical Operating Time | Powered opening: 15 seconds; spring closing: 15 seconds |
| Internal Auxiliary Switches | 2 SPST; fixed nominal switching positions of 7° and 85° |
| Auxiliary Switch Rating | 250 VAC, 5 A resistive maximum |
| Mounting Type | Direct coupled with self-centering shaft adapter |
| Angular Stroke | 95° ±3°, mechanically limited |
| Ambient Operating Conditions | −40°F to 130°F; 5–95% RH, non-condensing |
| Enclosure Rating | NEMA 2 / IP54 when mounted on a horizontal shaft with actuator base below the shaft |
| Weight | 6.25 lb (2.8 kg) |
Information About MS8120F1200
The MS8120F1200 is part of Honeywell’s MS8120F direct-coupled actuator range. Its self-centering shaft adapter connects the motor directly to a compatible damper shaft. Reversible mounting determines whether spring-return movement is clockwise or counterclockwise. Teflon-insulated lead wires provide electrical connections, while the internal switches indicate positions near either end of travel.
Key Features:
- Two-Position Control: Accepts an SPST on/off signal for powered opening and spring-return closing.
- Rated Torque: Provides 175 lb-in (20 N·m) for compatible fire and smoke dampers.
- Fast Operation: Typical powered opening and spring closing times are 15 seconds each.
- Internal Auxiliary Switches: Includes two SPST switches for damper position indication.
- Reversible Spring Return: Supports clockwise or counterclockwise return according to mounting orientation.
- Self-Centering Adapter: Clamps directly onto a compatible damper shaft.
- Angular Travel: Provides a mechanically limited stroke of 95° ±3°.
- Insulated Wiring: Includes Teflon-insulated leads for power and switch connections.
The MS8120F1200 delivers the reliability and precision required for rapid damper operation and position indication in compatible fire and smoke control systems.
