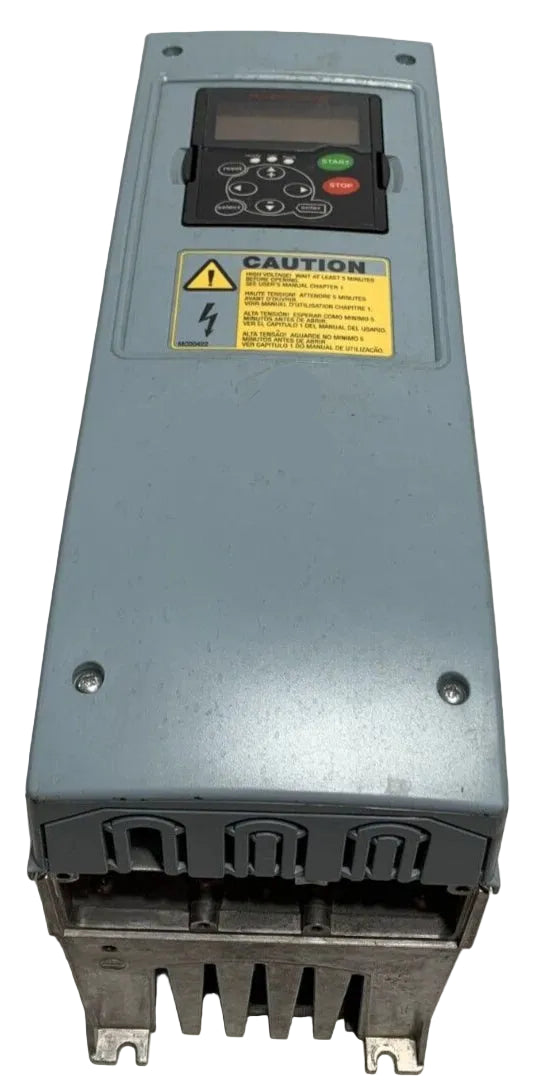

Honeywell NXS0200A1002 Variable Frequency Drive 20HP 460VAC NEMA 1 Industrial VFD
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NXS0200A1002
Description
The Honeywell NXS0200A1002 Variable Frequency Drive is a high-performance motor control solution engineered for demanding industrial and HVAC applications. Designed for 460VAC systems, this 20 HP drive delivers precise speed regulation, high starting torque, and reliable overload protection for pumps, fans, compressors, conveyors, and other automation equipment. The Honeywell NXS0200A1002 combines compact construction with advanced IGBT technology and flexible communication capabilities for dependable long-term operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Drives & Motor Controls |
| Part Number | NXS0200A1002 |
| Subcategory | Variable Frequency Drives |
| Series | NXS Series |
| Drive Type | Stand-Alone Variable Frequency Drive |
| Horsepower Rating | 20 HP |
| Input Voltage | 460 VAC |
| Current Rating | 31 A |
| Frequency Range | 0 Hz to 320 Hz |
| Enclosure Type | NEMA 1 |
| Frame Type | FR5 |
| Starting Torque | 200% High Starting Torque |
| Continuous Output Current | 1.5 × High Overload Current (1 min/10 min) |
| Peak Current | 2 × High Overload Current for 2 sec every 20 sec |
| Acceleration Time | 0 to 3000 sec |
| Deceleration Time | 0 to 3000 sec |
| Analog Voltage Input | 0–10 VDC, 200K ohm |
| Analog Current Input | 0(4)–20 mA, 250 ohm differential |
| Analog Current Output | 0(4)–20 mA, max 500 ohm |
| Relay Output | 24 VDC / 8 A |
| Digital Output | 50 mA / 48V Open Collector |
| Reference Output Voltage | +10V, ±3%, max 10mA |
| Auxiliary Voltage | 24V, ±15%, max 250mA |
| Communication Options | Modbus, BACnet, DeviceNet, Profibus, LonWorks, NS |
| Mounting Options | Wall Mount or Panel Mount |
| Operating Temperature | -10°C to 40°C (Low Overload) |
| Dimensions | 144.8 x 391.2 x 213.4 mm |
| Weight | 17.9 lb / 8.1 kg |
Information About NXS0200A1002
The NXS0200A1002 is a standalone variable frequency drive from the Honeywell NXS drive family designed for both HVAC and constant torque industrial applications. Built with integrated EMI/RFI filtering and AC choke protection, the drive minimizes electrical interference while improving system reliability in industrial environments. Its compact FR5 frame supports wall-mounted or panel-mounted installation and offers compatibility with optional fieldbus communication protocols including Modbus, BACnet, DeviceNet, Profibus, and LonWorks. The drive also features configurable application programming, advanced overload protection, and precise acceleration and deceleration control for optimized motor performance.
Key Features:
- 20 HP Motor Control: Supports industrial motors up to 20 horsepower for demanding automation systems.
- 460VAC Operation: Designed for three-phase 460VAC industrial power distribution systems.
- High Starting Torque: Provides up to 200% starting torque for heavy-load applications.
- Wide Frequency Range: Adjustable output frequency from 0 Hz to 320 Hz for flexible motor speed control.
- Integrated EMI/RFI Protection: Built-in industrial filters and AC chokes reduce electrical interference.
- IGBT Technology: Utilizes insulated gate bipolar transistor technology for efficient and stable drive operation.
- Multiple Communication Options: Compatible with Modbus, BACnet, DeviceNet, Profibus, LonWorks, and NS option cards.
- Advanced Overload Capability: Supports 150% overload current for 1 minute and 200% peak current for short-duration loads.
- Flexible Mounting Design: Suitable for wall-mounted or panel-mounted industrial installations.
- Configurable Applications: Includes seven programmable application configurations for versatile deployment.
- Comprehensive Protective Functions: Features eleven built-in protection functions for enhanced equipment safety.
- Compact NEMA 1 Enclosure: Provides durable indoor protection while maintaining a compact footprint.
The NXS0200A1002 delivers the reliability and precision required for industrial motor speed control, HVAC automation, and demanding variable torque applications.
