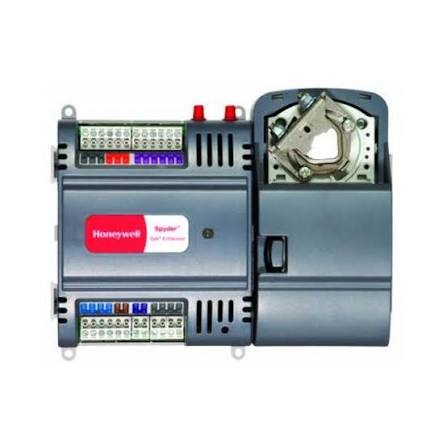

Honeywell PVL4022AS Spyder Lon Programmable VAV Controller
- Regular price
- $430.00
- Sale price
- $430.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PVL4022AS
Description
The Honeywell PVL4022AS is a Spyder Lon programmable VAV controller designed for variable-air-volume HVAC applications. It combines four universal inputs, two analog outputs, two digital outputs, an integrated Series 60 floating actuator, and a Microbridge velocity-pressure sensor in one controller. It operates from 20β30 VAC and communicates through a 78 kbps Echelon LONWORKS network.Β
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Building Automation |
| Part Number | PVL4022AS |
| Subcategory | VAV Controllers |
| Series | Spyder Lon |
| Device Type | Programmable VAV Controller |
| Supply Voltage | 20β30 VAC |
| Frequency | 50/60 Hz |
| Universal Inputs | 4 |
| Digital Inputs | 0 |
| Analog Outputs | 2 |
| Digital Outputs | 2 |
| Communication | Echelon LONWORKS / FTT-10A |
| Network Speed | 78 kbps |
| Velocity Pressure Sensor | Microbridge |
| Pressure Range | 0β1.5 in. HβO / 0β374 Pa |
| Actuator Type | Series 60 Floating |
| Actuator Torque | 44 lb-in. / 5 Nm |
| Actuator Stroke | 95Β° Β±3Β° |
| 90Β° Run Time | 90 seconds at 60 Hz |
| External Sensor Power | 20 VDC Β±10%, 75 mA max. |
| Operating Temperature | 32Β°F to 122Β°F / 0Β°C to 50Β°C |
| Relative Humidity | 5β95% RH, non-condensing |
| Mounting | Panel / DIN Rail / Field |
| Status Indicator | LED |
| Weight | 3.63 lb |
Information About PVL4022AS
The PVL4022AS is a Honeywell Spyder Lon VAV controller intended for field-mounted, panel, or DIN-rail installation. It provides four universal inputs, two analog outputs, and two digital outputs for controlling VAV equipment. The integrated actuator provides up to 44 lb-in (5 Nm) of torque with a 90Β° rotation time of 90 seconds at 60 Hz. The controller also includes a Microbridge velocity-pressure sensor with a 0β1.5 in. HβO operating range.Β
Key Features:
- VAV Controller: Provides programmable control for variable-air-volume HVAC applications.
- Four Universal Inputs: Supports configurable temperature, voltage, resistance, dry-contact, and pulse inputs.
- Dual Analog Outputs: Provides two configurable analog outputs for connected HVAC devices.
- Dual Digital Outputs: Provides two digital outputs for staged or floating control applications.
- Integrated Actuator: Includes a Series 60 floating actuator rated at up to 44 lb-in (5 Nm).
- Velocity-Pressure Sensor: Includes an integrated Microbridge sensor for airflow measurement.
- LONWORKS Communication: Communicates through a 78 kbps Echelon LONWORKS FTT-10A interface.
- Flexible Mounting: Supports field, panel, and 35 mm DIN-rail mounting.
The PVL4022AS delivers the control and monitoring functions required for VAV systems and building automation applications.
