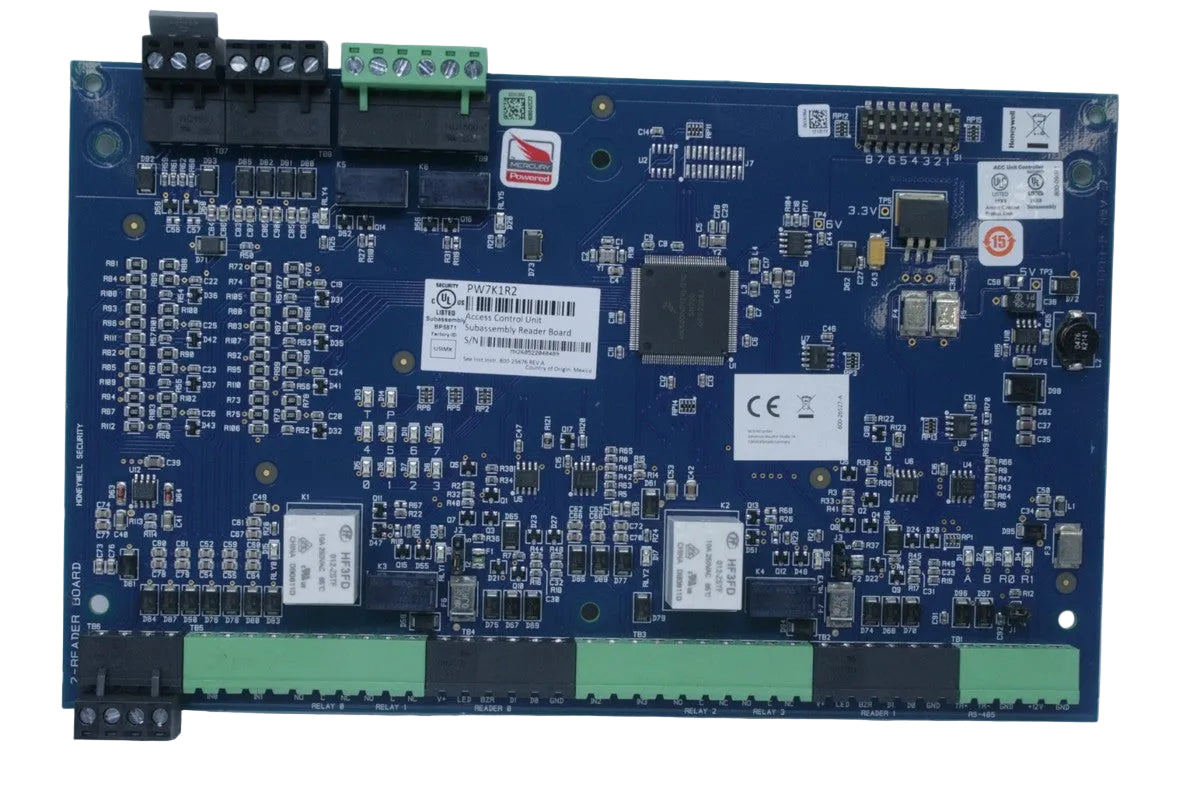

Honeywell PW7K1R2 Pro-Watch 7000 Two-Reader Access Control Module
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PW7K1R2
Description
The Honeywell PW7K1R2 is a Pro-Watch 7000 two-reader access control module designed to connect card readers, door inputs, and relay-controlled locking devices to a compatible Pro-Watch controller. It communicates through an RS-485 bus and provides local input and output resources for managing two controlled access points.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | PLCs/Machine Control |
| Part Number | PW7K1R2 |
| Subcategory | Access Control Reader Module |
| Product Series | Pro-Watch 7000 |
| Product Type | Two-Reader Access Control Module |
| Reader Capacity | 2 Readers |
| Monitored Inputs | 8 Configurable Inputs |
| Relay Outputs | 6 Relay Outputs |
| Reader Signaling | Data 1/Data 0, Clock/Data, Two-Wire RS-485 |
| Reader Power | Selectable 5 Volts Direct Current or 12 Volts Direct Current Pass-Through |
| Controller Communication | RS-485 |
| Reader Cable Distance | Up to 500 Feet with Specified 18 American Wire Gauge Cable |
| Dimensions | 5.5 × 9 × 1 Inches |
| Operating Temperature | 0 to 49 Degrees Celsius |
| Storage Temperature | -55 to 85 Degrees Celsius |
| Operating Humidity | 0 to 93 Percent Relative Humidity, Non-Condensing |
| Weight | 0.75 lbs |
Information About PW7K1R2
The PW7K1R2 is a Honeywell Security Pro-Watch 7000 series two-reader module for modular electronic access control systems. Its circuit-board design incorporates two configurable reader ports, eight monitored inputs, six relay outputs, RS-485 controller communication, address switches, and termination provisions. Each reader interface supports transistor-transistor logic signaling, including Data 1/Data 0 and Clock/Data, as well as two-wire RS-485 reader communication, with selectable reader power. The module integrates with compatible Pro-Watch 7000 controllers and is intended for door access applications requiring centralized reader, request-to-exit, door-status, alarm, and lock-control functions.
Key Features:
- Two-Reader Architecture: Provides two independent reader interfaces for controlling two access points from one module.
- Eight Configurable Inputs: Inputs 0 through 7 can be configured for normally open or normally closed contacts and supervised or non-supervised operation.
- Six Relay Outputs: Six onboard relays provide switching interfaces for door locks and other access-control devices.
- Multiple Reader Interfaces: Reader ports support Data 1/Data 0, Clock/Data, and two-wire RS-485 signaling for compatible readers.
- Selectable Reader Power: Reader supply can be configured for 5 volts direct current or pass-through 12 volts direct current.
- RS-485 Controller Bus: Uses an RS-485 communication interface for connection with the associated Pro-Watch access controller.
- Supervised Door Monitoring: Inputs can monitor door status, request-to-exit devices, and general-purpose sensors using supervised circuits.
- Pro-Watch 7000 Integration: Honeywell identifies PW7K1R2 as the dual-reader module within the Pro-Watch 7000 access-control hardware family.
The PW7K1R2 delivers the reliability and precision required for reader management, door monitoring, and relay-based access control in compatible Pro-Watch systems.
