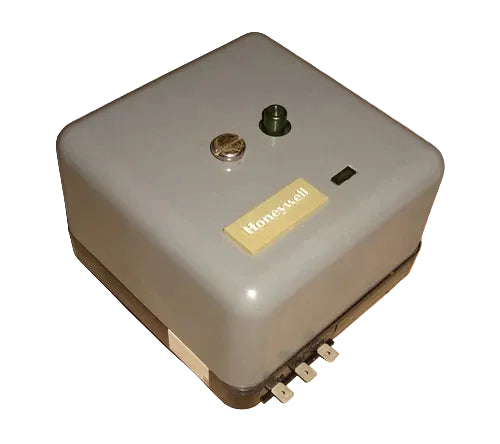

Honeywell RA890F1338 Protectorelay Primary Burner Control 120 VAC
- Regular price
- $4,099.00
- Sale price
- $4,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RA890F1338
Description
The Honeywell RA890F1338 is a Protectorelay primary control designed to provide electronic flame safeguard protection for industrial and commercial single- or dual-fuel burners. It uses flame rectification for flame detection and provides a 30-second safety switch timing with rapid flame-failure response for burner safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | RA890F1338 |
| Subcategory | Burner Controls |
| Product Type | Protectorelay Primary Control |
| Voltage | 120 VAC |
| Frequency | 60 Hz |
| Flame Failure Response | 0.8 sec |
| Safety Switch Timing | 30 sec |
| Alarm Relay | SPDT |
| Application | Single- or dual-fuel burners |
| Temperature Range, 50 Hz | -20°F to +105°F |
| Dimensions | 127 × 127 × 121 mm including subbase |
| Approvals | Factory Mutual, Reports 17678, 19417, 19784 |
| Weight | 2.50 lb |
Information About RA890F1338
The RA890F1338 is a solid-state Honeywell flame safeguard control intended for rectification-based flame detection, such as flame-rod applications. It operates from a 120 VAC, 60 Hz supply and incorporates a safe-start check to prevent burner startup when a false flame signal is detected. The control can relight once following flame failure in an attempt to re-establish the pilot before initiating lockout. Built-in protection against ignition crossover in flame-rod systems further supports reliable operation in commercial and industrial burner installations.
Key Features:
- Protectorelay Primary Control: Provides electronic flame safeguard control for industrial and commercial burner systems.
- Flame Rectification: Uses the rectification principle to electronically detect the presence of a burner flame.
- 30-Second Safety Switch: Provides a 30-second safety switch timing for burner control sequences.
- Rapid Flame Failure Response: Responds to flame failure in approximately 0.8 seconds.
- Safe-Start Check: Prevents startup when a flame-simulating signal is detected in the flame detector circuit.
- Automatic Relight: Attempts to re-establish the pilot once after flame failure before lockout.
- Ignition Crossover Protection: Includes protection against ignition crossover in flame-rod systems.
- SPDT Alarm Relay: Provides SPDT alarm relay switching for associated monitoring and control circuits.
The RA890F1338 delivers electronic flame supervision and protective burner control for rectification-based flame detection systems.
