Honeywell RM7838C1012 Enhanced Semi-Automatic Burner Programmer with Display
- Regular price
- $2,422.00
- Sale price
- $2,422.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RM7838C1012
Description

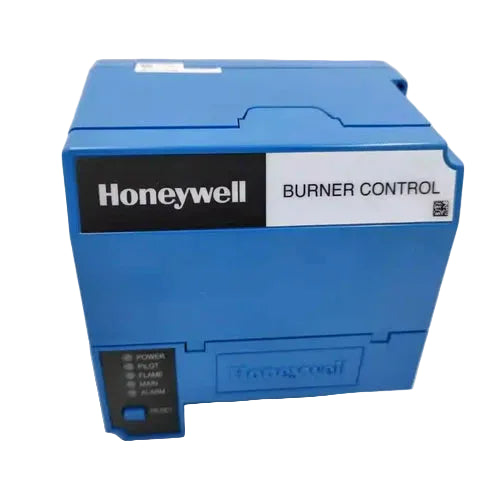

The Honeywell RM7838C1012 is an enhanced semi-automatic flame safeguard programmer designed for industrial single-burner applications using gas, oil, coal, or combination fuels. It provides sequenced burner management with a 120 VAC supply, interrupted pilot operation, selectable flame-establishing periods, and an included S7800 display module for status and diagnostics.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | RM7838C1012 |
| Subcategory | Burner Controls |
| Product Type | Enhanced Semi-Automatic Programmer |
| Supply Voltage | 120 VAC |
| Pilot Type | Interrupted |
| Pilot Flame Period | 4 sec or 10 sec |
| Early Spark Termination | 5 sec |
| Display | S7800 included |
| Temperature Range | -40°F to +140°F |
| Approvals | FCC Part 15 Class B; UL Component Recognized |
| Dimensions | 8 × 8 × 6 in |
| Weight | 4 lb |
Information About RM7838C1012
The RM7838C1012 is a Honeywell industrial burner control that provides manual-start operation and programmed flame-safety sequencing. It supports a 10-second or intermittent main flame establishing period and a 4-second or 10-second pilot flame establishing period. The control uses an interrupted pilot configuration and provides a 5-second early spark termination function for the ignition sequence. Its non-volatile memory retains historical information and lockout status after power loss, while compatibility with Honeywell flame detectors and interchangeable flame amplifiers supports flexible burner system configurations.
Key Features:
- Manual Start Operation: Provides operator-controlled initiation of the burner ignition sequence.
- 120 VAC Supply: Designed for industrial burner systems using 120 VAC power.
- Interrupted Pilot: Automatically terminates the pilot after the main flame is established.
- Selectable Flame Periods: Supports 4- or 10-second pilot and 10-second or intermittent main flame establishing periods.
- S7800 Display Module: Provides sequence information, fault codes, status monitoring, and diagnostic information.
- Non-Volatile Memory: Retains history files and lockout status following loss of power.
- Flame Amplifier Compatibility: Uses interchangeable plug-in flame amplifiers and supports existing Honeywell flame detectors.
- Valve Proving and Post-Purge: Supports valve proving and programmable post-purge functions for burner management.
The RM7838C1012 delivers the flame-safety control and diagnostic functionality required for demanding industrial burner applications.
