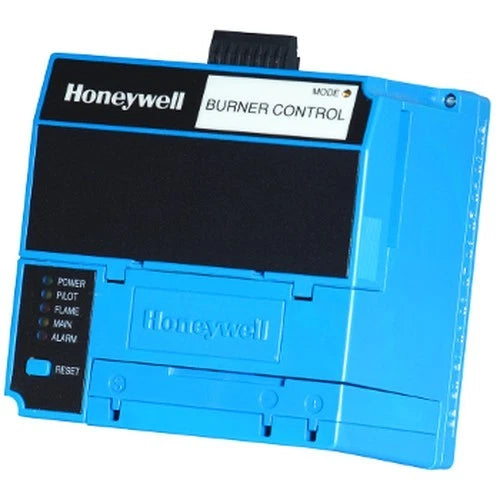

Honeywell RM7838C1020 7800 Series Burner Control Relay Module
- Regular price
- $3,212.00
- Sale price
- $3,212.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RM7838C1020
Description
The Honeywell RM7838C1020 is a 7800 Series microprocessor-based burner control relay module designed for semi-automatic industrial burner applications. It provides burner sequencing, flame supervision, system-status indication, diagnostics, and safety shutdown functions for gas, oil, coal, or combination-fuel burners. The RM7838C1020 operates at 120 VAC, 50/60 Hz and is designed for use with compatible Honeywell flame amplifiers and purge-timer components.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Burner Controls |
| Part Number | RM7838C1020 |
| Subcategory | Burner Control Relay Modules |
| Series | 7800 |
| Device Type | Microprocessor-Based Burner Control |
| Application | Semi-Automatic Burner Control |
| Fuel Type | Gas, Oil, Coal, or Combination Fuel |
| Supply Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Pilot Flame Establishing Period | Selectable 4 or 10 seconds |
| Main Flame Establishing Period | 5 seconds |
| Modulation | Four-Wire |
| Pilot Type | Interrupted |
| Preignition | Yes |
| Interlocks | Lockout |
| Prepurge | Determined by ST7800C Purge Timer |
| Compatible Flame Amplifiers | R7847, R7848, R7849, R7851, R7852, R7861, R7886 |
| Display Module | S7800A1142 / compatible display |
| Required Purge Timer | ST7800C |
| Maximum Power Dissipation | 10 W |
| Maximum Connected Load | 2000 VA |
| Operating Temperature | -40°C to +60°C |
| Humidity | 85% RH, non-condensing |
| Safety Capability | SIL 3 capable |
| Dimensions | Approx. 127 × 127 × 133 mm |
| Weight | 1.54 lb |
Information About RM7838C1020
The RM7838C1020 is a Honeywell 7800 Series semi-automatic programmer with four-wire modulation and a 5-second main flame establishing period. It uses a selectable 4- or 10-second pilot flame establishing period and requires an ST7800C purge timer for the purge sequence. The module supports flame supervision, preignition, lockout interlocks, high/low-fire control, and diagnostic functions. Honeywell identifies the RM7838C1020 as SIL 3 capable when used within a properly designed safety instrumented system.
Key Features:
- Burner Control: Provides microprocessor-based sequencing and supervision for industrial combustion systems.
- Semi-Automatic Operation: Designed for semi-automatic burner programming and control.
- Four-Wire Modulation: Supports four-wire modulating burner control with high- and low-fire functions.
- Flame Supervision: Works with compatible Honeywell flame amplifiers for continuous flame monitoring.
- Selectable Timing: Provides selectable 4- or 10-second pilot flame establishing periods.
- 5-Second MFEP: Provides a 5-second main flame establishing period for this C1020 model.
- Diagnostic Functions: Provides system status indication, self-diagnostics, and troubleshooting capabilities.
- Safety Functions: Includes preignition and lockout interlocks for burner safety control.
The RM7838C1020 delivers the control and monitoring functions required for industrial burner management, flame supervision, and combustion-system applications.
Description
The Honeywell RM7838C1020 is a 7800 Series microprocessor-based burner control relay module designed for semi-automatic industrial burner applications. It provides burner sequencing, flame supervision, system-status indication, diagnostics, and safety shutdown functions for gas, oil, coal, or combination-fuel burners. The RM7838C1020 operates at 120 VAC, 50/60 Hz and is designed for use with compatible Honeywell flame amplifiers and purge-timer components.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Burner Controls |
| Part Number | RM7838C1020 |
| Subcategory | Burner Control Relay Modules |
| Series | 7800 |
| Device Type | Microprocessor-Based Burner Control |
| Application | Semi-Automatic Burner Control |
| Fuel Type | Gas, Oil, Coal, or Combination Fuel |
| Supply Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Pilot Flame Establishing Period | Selectable 4 or 10 seconds |
| Main Flame Establishing Period | 5 seconds |
| Modulation | Four-Wire |
| Pilot Type | Interrupted |
| Preignition | Yes |
| Interlocks | Lockout |
| Prepurge | Determined by ST7800C Purge Timer |
| Compatible Flame Amplifiers | R7847, R7848, R7849, R7851, R7852, R7861, R7886 |
| Display Module | S7800A1142 / compatible display |
| Required Purge Timer | ST7800C |
| Maximum Power Dissipation | 10 W |
| Maximum Connected Load | 2000 VA |
| Operating Temperature | -40°C to +60°C |
| Humidity | 85% RH, non-condensing |
| Safety Capability | SIL 3 capable |
| Dimensions | Approx. 127 × 127 × 133 mm |
| Weight | 1.54 lb |
Information About RM7838C1020
The RM7838C1020 is a Honeywell 7800 Series semi-automatic programmer with four-wire modulation and a 5-second main flame establishing period. It uses a selectable 4- or 10-second pilot flame establishing period and requires an ST7800C purge timer for the purge sequence. The module supports flame supervision, preignition, lockout interlocks, high/low-fire control, and diagnostic functions. Honeywell identifies the RM7838C1020 as SIL 3 capable when used within a properly designed safety instrumented system.
Key Features:
- Burner Control: Provides microprocessor-based sequencing and supervision for industrial combustion systems.
- Semi-Automatic Operation: Designed for semi-automatic burner programming and control.
- Four-Wire Modulation: Supports four-wire modulating burner control with high- and low-fire functions.
- Flame Supervision: Works with compatible Honeywell flame amplifiers for continuous flame monitoring.
- Selectable Timing: Provides selectable 4- or 10-second pilot flame establishing periods.
- 5-Second MFEP: Provides a 5-second main flame establishing period for this C1020 model.
- Diagnostic Functions: Provides system status indication, self-diagnostics, and troubleshooting capabilities.
- Safety Functions: Includes preignition and lockout interlocks for burner safety control.
The RM7838C1020 delivers the control and monitoring functions required for industrial burner management, flame supervision, and combustion-system applications.
