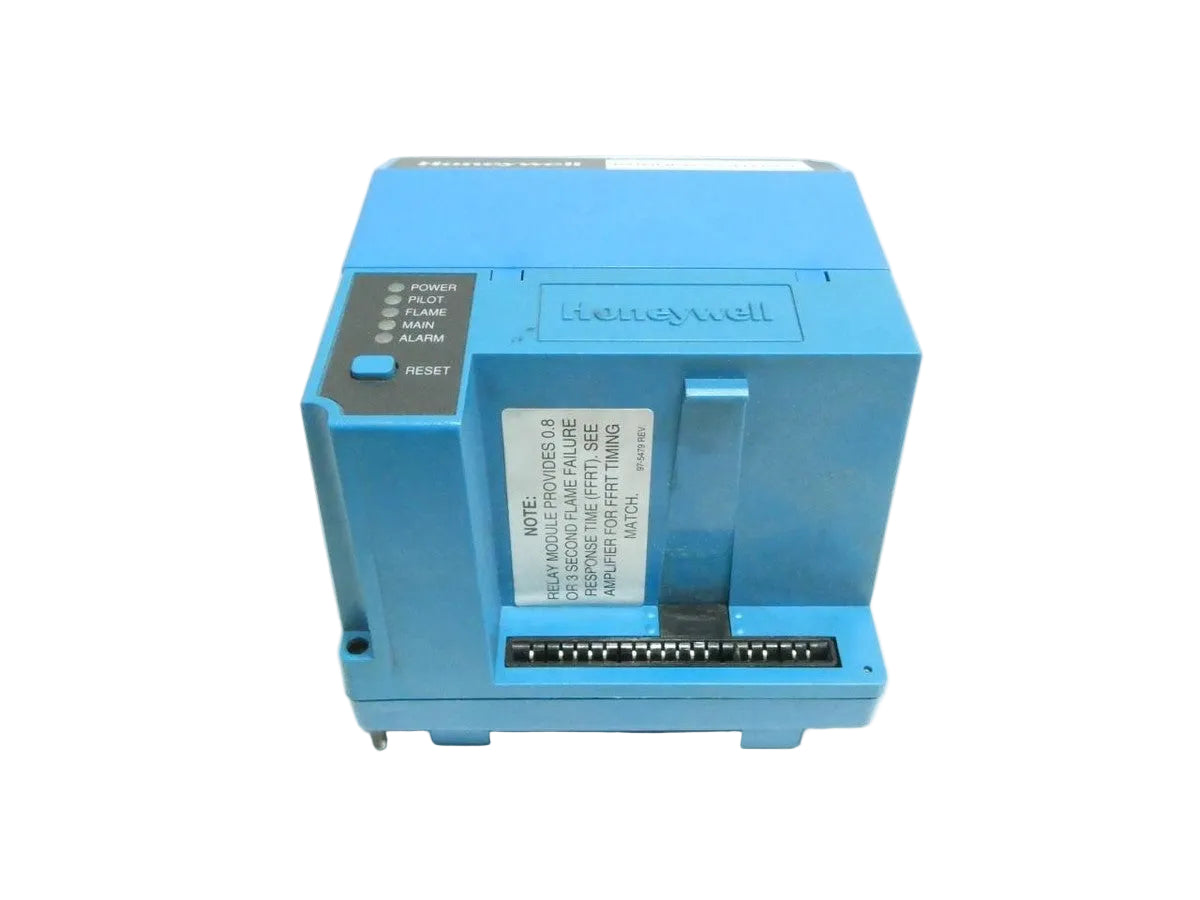

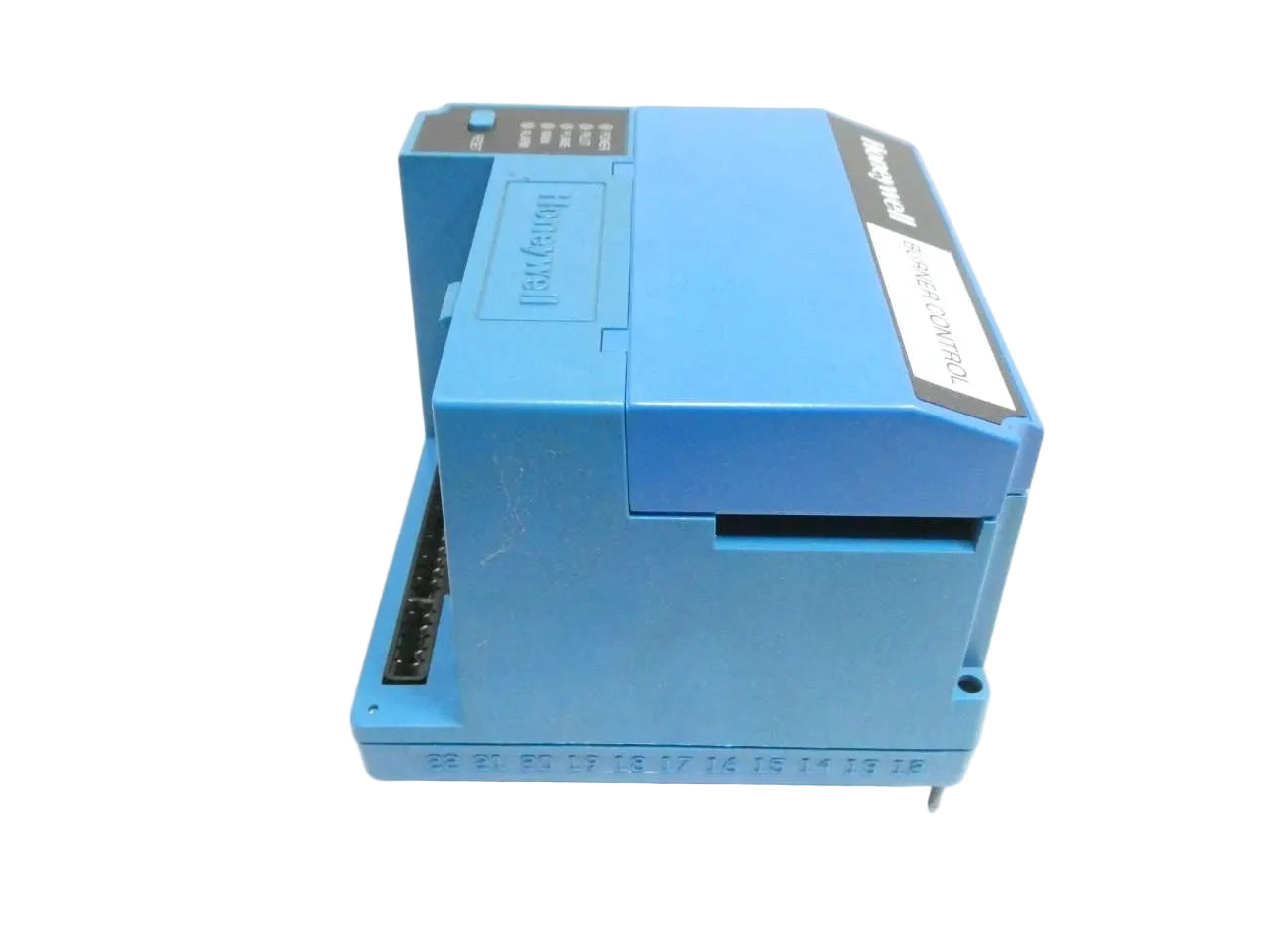

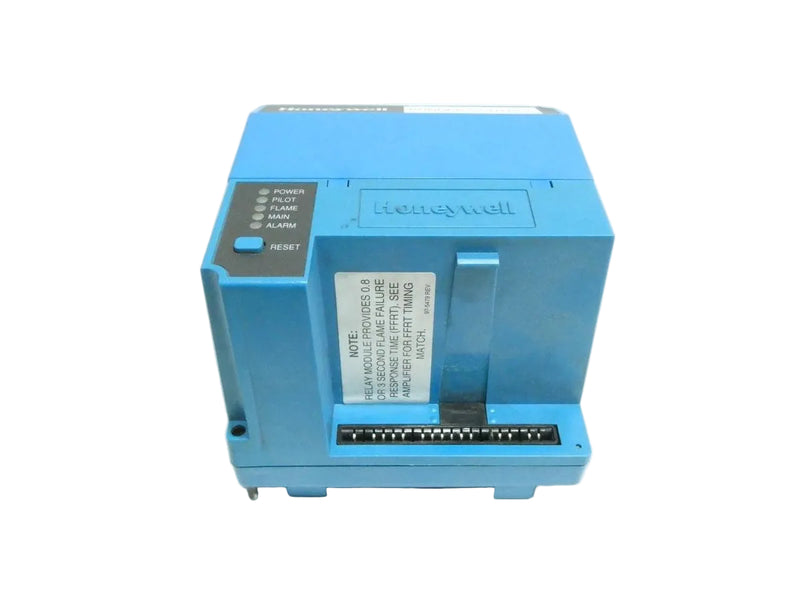

Honeywell RM7840G1022 Integrated Burner Control with Valve Proving
- Regular price
- $3,499.00
- Sale price
- $3,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RM7840G1022
Description
The Honeywell RM7840G1022 is a microprocessor-based integrated burner control designed for automatically fired single-burner applications using gas, oil, coal, or combination fuels. It operates at 120 VAC and provides configurable flame-establishing periods, valve proving, interrupted pilot operation, airflow checking, and burner running interlocks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | RM7840G1022 |
| Subcategory | Burner Controls |
| Control Type | Microprocessor-Based |
| Application | Automatically Fired Single Burners |
| Fuel Compatibility | Gas, Oil, Coal, or Combination Fuel |
| Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Main Flame Period | 10, 15, 30 sec or intermittent |
| Pilot Flame Period | 4 sec or 10 sec |
| Pilot Type | Interrupted |
| Second-Stage Pilot Valve | Selectable |
| Early Spark Termination | 5 sec |
| Pre-Purge | ST7800A Pre-Purge Timer Card |
| Post-Purge | Programmable with S7800A1142 Display |
| Valve Proving | LHL-LF Proven Purge |
| Interlocks | Preignition and Running Interlocks |
| Weight | 1 lb |
Information About RM7840G1022
The RM7840G1022 integrates burner sequencing and flame safeguard functions into a single control module for industrial and commercial combustion systems. It supports 10-, 15-, or 30-second or intermittent main flame establishing periods and 4- or 10-second pilot flame establishing periods. The control includes a selectable second-stage pilot valve, 5-second early spark termination, and user-selectable airflow checking for configurable burner sequences. Pre-purge timing is determined by the ST7800A pre-purge timer card, while post-purge can be programmed through the S7800A1142 display.
Key Features:
- Microprocessor-Based Control: Provides integrated burner sequencing and flame safeguard functions for automatically fired single-burner applications.
- Valve Proving: Incorporates valve proving functionality with LHL-LF proven purge operation.
- Flexible Flame Timing: Supports 10-, 15-, and 30-second or intermittent main flame establishing periods.
- Selectable Pilot Period: Provides 4- or 10-second pilot flame establishing periods.
- Interrupted Pilot: Uses an interrupted pilot sequence for burner ignition control.
- Second-Stage Pilot Valve: Allows selection of a second-stage pilot valve configuration.
- Early Spark Termination: Provides a 5-second early spark termination period.
- Burner Interlocks: Includes running interlocks and a user-selectable airflow check.
The RM7840G1022 delivers configurable burner sequencing, valve proving, and flame-safety control for demanding combustion applications.
