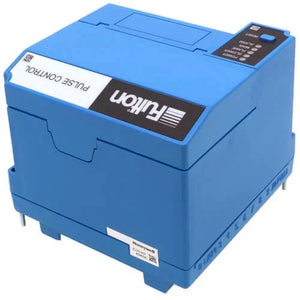

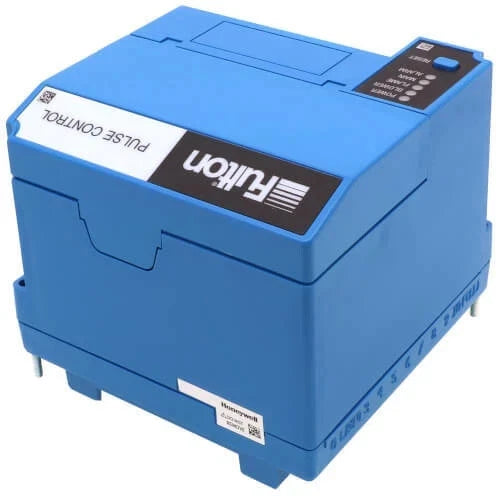

Honeywell RM7865C1007 7800 Series Fulton Pulse Boiler Primary Burner Control
- Regular price
- $1,682.00
- Sale price
- $1,682.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RM7865C1007
Description
The Honeywell RM7865C1007 is a 7800 Series primary burner control designed specifically for Fulton Companies Pulse Boiler applications. It uses microcomputer technology to provide burner sequencing, flame safeguard functions, diagnostics, and lockout interlock management, with a 120 VAC supply and configurable purge and flame-establishing periods.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | RM7865C1007 |
| Subcategory | Burner Controls |
| Product Line | 7800 Series |
| Application | Fulton Companies Pulse Boiler |
| Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Post-Purge / Pre-Purge | 35 sec |
| Main Flame Period | 4 sec |
| Pilot Flame Period | 2 sec |
| Display Type | Vacuum Fluorescent Display, optional |
| Mounting | Requires compatible subbase |
| Dimensions | 8 × 7 × 6 in |
| Weight | 1.57 lb |
Information About RM7865C1007

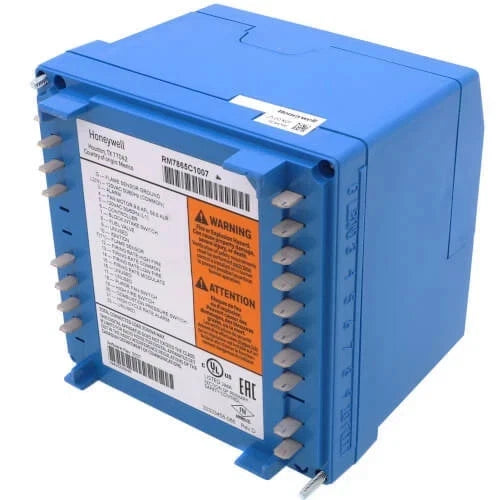

The RM7865C1007 is a Honeywell 7800 Series relay module that requires a compatible subbase and flame amplifier to complete the burner control system. It provides access for external electrical voltage checks, nonvolatile memory for retaining history and sequencing status, and five LEDs for sequence and fault information. An optional Keyboard Display Module provides a two-row, 20-column Vacuum Fluorescent Display for first-out annunciation and system diagnostics. The control also supports optional communication, remote reset, and local or remote annunciation functions for compatible installations.
Key Features:
- 7800 Series Relay Module: Provides primary burner control and flame safeguard functions within the Honeywell 7800 Series.
- Fulton Pulse Boiler Application: Designed for use with Fulton Companies Pulse Boiler systems.
- 120 VAC Operation: Uses a 120 VAC supply with 50/60 Hz input frequency.
- Purge Timing: Provides a 35-second post-purge/pre-purge function for the burner sequence.
- Flame Establishing Periods: Provides a 4-second main flame establishing period and 2-second pilot flame establishing period.
- Diagnostic LEDs: Includes five LEDs for sequence information and fault diagnostics, with optional expanded annunciation.
- Nonvolatile Memory: Retains history files and sequencing status following loss of power.
- External Voltage Checks: Provides access for electrical voltage checks during installation and service.
The RM7865C1007 delivers integrated burner sequencing, flame safeguarding, and diagnostic functions for Fulton Pulse Boiler applications.
