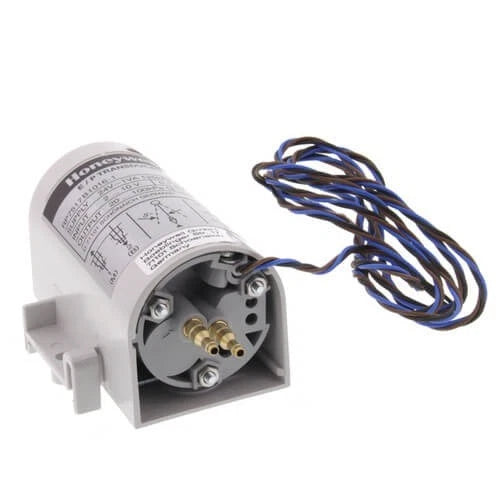

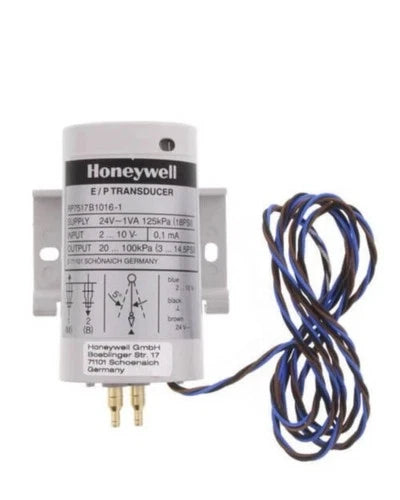

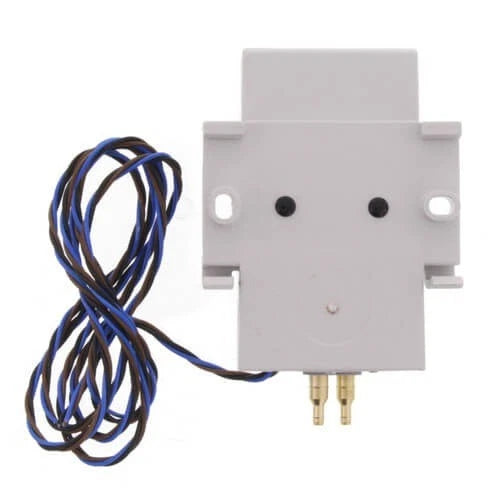

Honeywell RP7517B1016 Electronic-Pneumatic Transducer
- Regular price
- $855.00
- Sale price
- $855.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RP7517B1016
Description
Honeywell RP7517B1016 is an electronic-pneumatic transducer designed to convert electrical control signals into proportional pneumatic pressure for HVAC and building control systems. It accepts a 2–10 VDC input signal and provides a nominal 3–15 psi pneumatic output range for direct-acting control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | RP7517B1016 |
| Subcategory | Electronic-Pneumatic Transducers |
| Product Type | Electronic-Pneumatic Transducer |
| Application | Electronic-Pneumatic Control Systems |
| Control Signal | Proportional |
| Control Action | Direct Acting |
| Input Signal Type | Current / Voltage |
| Input Voltage Signal | 2–10 VDC |
| Input Current Signal Maximum | 0.1 mA |
| Supply Voltage | 24 VAC |
| Nominal Pressure Range | 3–15 psi |
| Control Air Pressure | 18 psi |
| Maximum Operating Pressure | 30 psi |
| Air Consumption | 0.025 scfm |
| Air Connection | 1/4 in Barbed Hose |
| Operating Temperature Range | 41°F to 131°F |
| Electrical Lead Length | 30 in |
| Dimensions | 3-5/8 × 2-7/16 × 2 in |
| Weight | 0.5 lb |
Information About RP7517B1016
The RP7517B1016 is a Honeywell electronic-pneumatic transducer designed for integration into electronic-pneumatic control systems. Its three-wire design operates from 24 VAC power and provides proportional direct-acting control through a barbed 1/4-inch pneumatic connection. The transducer operates across a nominal 3–15 psi range, with a maximum operating pressure of 30 psi and low air consumption. An integrated amplifier, protective cover, and 30-inch electrical leads provide the components required for installation in compatible HVAC and building automation applications.
Key Features:
- Electronic-Pneumatic Conversion: Converts an electrical input signal into proportional pneumatic pressure for compatible control equipment.
- 2–10 VDC Input: Accepts a standard analog voltage signal for proportional pneumatic control.
- Direct-Acting Control: Increases pneumatic output pressure in response to an increasing electrical input signal.
- 3–15 psi Output Range: Provides a nominal pneumatic pressure range commonly used in HVAC control systems.
- 24 VAC Operation: Uses standard 24 VAC control power with a three-wire electrical configuration.
- Low Air Consumption: Consumes approximately 0.025 scfm during operation to support efficient pneumatic control.
- Integrated Amplifier: Includes an amplifier as part of the transducer assembly for signal processing and control.
- Compact Construction: Measures approximately 3-5/8 × 2-7/16 × 2 inches for installation in limited control-panel spaces.
The RP7517B1016 delivers the reliability and precision required for proportional electronic-to-pneumatic signal conversion in HVAC and building control systems.
