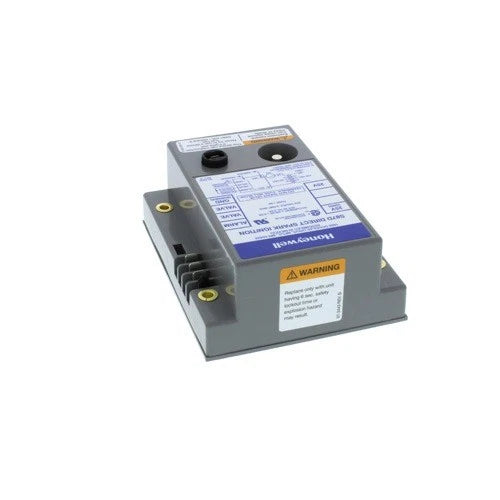

Honeywell S87D1004 24V Direct Spark Ignition Control Module
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S87D1004
Description
The Honeywell S87D1004 is a dependable direct spark ignition control module utilized in commercial gas-fired appliances. Operating on a 24-volt electrical circuit, it provides instantaneous high-voltage sparking and continuous flame monitoring during heating cycles. It is precision-engineered to ensure rapid gas ignition and eliminate hazardous unburned fuel accumulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Refrigeration |
| Part Number | S87D1004 |
| Subcategory | Ignition Controls |
| Control Type | Direct Spark Ignition |
| Operating Voltage | 24V AC |
| Flame Monitoring | Rectification Sensing |
| Safety Logic | Automated Lockout |
| Application | Commercial Heating / Cooking |
| Weight | 0.55 lbs |
Information About S87D1004
The S87D1004 is a robust solid-state module built to govern the critical startup sequences of commercial HVAC and food service equipment. It utilizes internal timing algorithms to trigger the main gas valve simultaneously with the high-voltage spark generation. Designed to endure the extreme ambient temperatures of commercial kitchens and mechanical rooms, this controller features an unyielding plastic enclosure to protect sensitive microprocessors. It relies on immediate flame rectification sensing to maintain operational continuity, locking out the system automatically if a flame is not established within the designated trial period.
Key Features:
-
Instantaneous Sparking: Generates high-voltage electrical arcs to ignite commercial gas burners rapidly.
-
Simultaneous Valve Actuation: Opens the main gas valve concurrently with the spark to ensure smooth burner ignition.
-
Continuous Flame Monitoring: Uses advanced rectification circuitry to verify flame presence throughout the entire heating cycle.
-
Automated Safety Lockout: Disables gas flow completely if the flame fails to ignite or extinguishes unexpectedly.
-
24-Volt Operation: Connects flawlessly to standard low-voltage commercial control transformers and thermostats.
-
Durable Enclosure: Shields sensitive solid-state logic from aggressive industrial vibrations and high ambient heat.
The S87D1004 delivers the reliability and precision required for the safe, automated ignition of commercial gas appliances.
