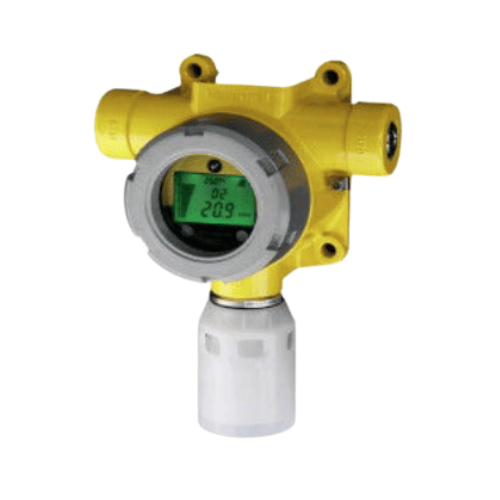

Honeywell SPXCDULNTXTM Sensepoint XCD Toxic Gas Transmitter MODBUS 4-20mA
- Regular price
- $2,774.00
- Sale price
- $2,774.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SPXCDULNTXTM
Description
The Honeywell SPXCDULNTXTM Sensepoint XCD Toxic Transmitter is an industrial fixed gas detection transmitter designed for continuous monitoring of toxic gases in hazardous environments. Engineered with integrated 4–20 mA and MODBUS RTU communication outputs, this transmitter provides reliable gas detection integration for industrial safety and process monitoring systems. The Honeywell SPXCDULNTXTM combines rugged marine-grade aluminum construction, programmable relays, and advanced diagnostic capabilities for dependable operation in demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell Analytics |
| Category | Industrial Safety & Gas Detection |
| Part Number | SPXCDULNTXTM |
| Subcategory | Gas Detection Transmitters |
| Product Series | Sensepoint XCD |
| Product Type | Toxic Gas Transmitter |
| Supply Voltage | 16 to 32 VDC |
| Operating Current | 208.3 mA |
| Inrush Current | 800 mA @ 24 VDC Maximum |
| Output Signal | 4–20 mA Sink or Source |
| Communication Protocol | RS485, MODBUS RTU |
| Relay Outputs | 3 x 5A @ 250VAC |
| Relay Configuration | Programmable NO/NC and Energized/De-Energized |
| Display Type | Tri-Color Backlit LCD |
| Configuration Method | Magnetic Switches |
| Sensor Compatibility | Sensepoint XCD Toxic Sensors |
| Enclosure Material | Epoxy Painted Marine Grade Aluminum |
| Conduit Entries | 2 x 3/4" NPT |
| Terminal Type | 15 Screw Terminals |
| Supported Wire Size | 20 to 14 AWG |
| Mounting Type | Integral Mounting Plate |
| Hazardous Area Ratings | Class I Div 1 & 2, Class II Div 1 & 2 |
| Certifications | UL File #E186567, CE |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Dimensions | 8.9 x 6.5 x 3.9 in |
| Dimensions Metric | 22.5 x 16.4 x 9.9 cm |
| Weight | 4.4 lb (2 kg) |
Information About SPXCDULNTXTM
The SPXCDULNTXTM is part of the Honeywell Analytics Sensepoint XCD gas detection series developed for toxic gas monitoring in industrial facilities, chemical plants, refineries, and hazardous process environments. Designed as a configurable transmitter platform, the unit automatically recognizes compatible sensors and adjusts operational parameters for simplified commissioning and maintenance. Its tri-color backlit display and magnetic switch configuration allow non-intrusive local setup and diagnostics without opening the enclosure in hazardous locations. Built with explosion-resistant aluminum housing and industrial communication support, the transmitter integrates seamlessly into plant safety systems for continuous environmental gas monitoring and alarm management.
Key Features:
- Continuous Toxic Gas Monitoring: Designed for real-time industrial toxic gas detection applications.
- 4–20 mA Analog Output: Supports selectable sink or source current loop integration.
- MODBUS RTU Communication: Enables remote diagnostics, monitoring, and system configuration.
- Hazardous Location Certified: Suitable for Class I and Class II hazardous industrial environments.
- Rugged Aluminum Housing: Epoxy-painted marine-grade aluminum enclosure resists harsh conditions.
- Tri-Color Backlit Display: Provides clear status indication with digits, icons, and bar graph visualization.
- Magnetic Switch Configuration: Allows non-intrusive local programming and setup.
- Integrated Alarm Relays: Includes three programmable relay outputs for alarms and fault conditions.
- Flexible Conduit Entries: Supports dual 3/4" NPT or M20 cable connections.
- Automatic Sensor Recognition: Detects and configures compatible Sensepoint XCD sensors automatically.
- Wide Temperature Operation: Operates reliably in extreme industrial temperatures from -40°C to 65°C.
- Removable Plug-In Display Module: Simplifies access to terminal connections and maintenance.
The SPXCDULNTXTM delivers the reliability and precision required for hazardous-area toxic gas detection and industrial safety monitoring applications.
