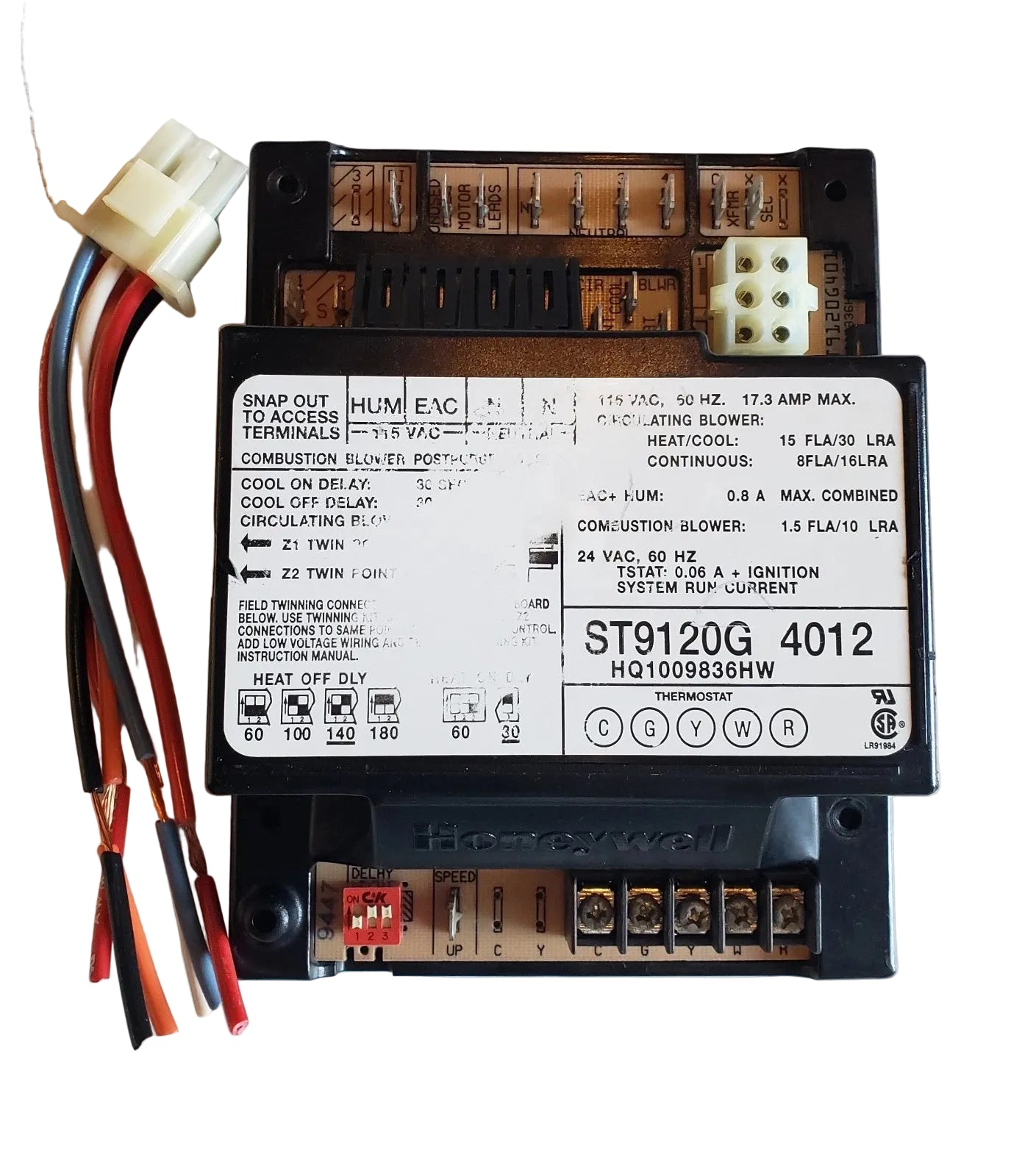

Honeywell ST9120G4012 Electronic Fan Timer Control Board for ICP HVAC
- Regular price
- $257.00
- Sale price
- $257.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ST9120G4012
Description
Honeywell ST9120G4012 is an electronic fan timer control board designed for ICP furnace and HVAC equipment. It controls blower operation and associated heating-system sequences using predefined timing parameters for the specific ICP configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Building Automation / HVAC Controls |
| Part Number | ST9120G4012 |
| Subcategory | HVAC Control Boards / Fan Timer Boards |
| Product Type | Electronic Fan Timer Control Board |
| OEM Application | ICP |
| Replacement Part | HQ1009836HW / 1009836 |
| Heat-On Delay | 30 seconds |
| Heat-Off Delay | 140 seconds |
| Cooling Timing | 30-second timing configuration |
| Series | ST9120 Electronic Fan Timers |
| Application | Furnace and HVAC blower control |
| Control Function | Fan timing and equipment sequence control |
| Weight | 1.00 lb |
Information About ST9120G4012
The ST9120G4012 belongs to the Honeywell ST9120 electronic fan timer series and is identified for ICP equipment. The control board coordinates blower operation with the furnace heating and cooling sequence and monitors connected system controls. For this specific model, the documented timing configuration includes a 30-second heat-on delay, 140-second heat-off delay, and 30-second cooling-related timing values. It is also identified as an OEM-equivalent replacement for ICP part HQ1009836HW / 1009836.
Key Features:
- Electronic Fan Timer: Controls blower operation within compatible furnace sequences.
- ICP Configuration: Specifically configured for ICP HVAC equipment.
- Heating Sequence Control: Uses defined timing parameters for furnace blower operation.
- Cooling Sequence Control: Provides timing functions for compatible cooling operation.
- System Coordination: Interfaces with furnace controls, safety switches, and connected HVAC components.
- OEM Replacement: Identified as an equivalent for ICP HQ1009836HW / 1009836.
- Control Board Design: Provides centralized electronic control for compatible furnace functions.
- Compact HVAC Component: Intended for installation as part of the furnace control system.
The ST9120G4012 delivers the reliability and precision required for furnace blower control and HVAC equipment sequencing.
