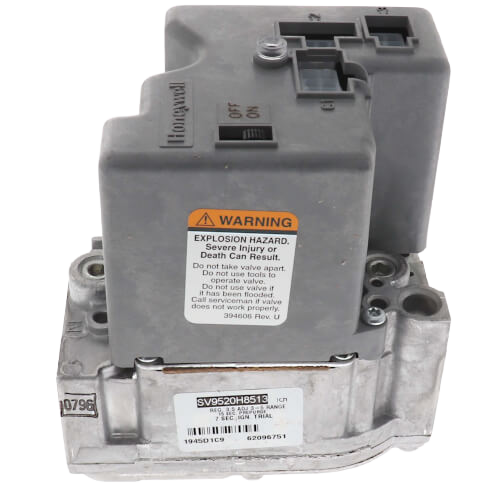

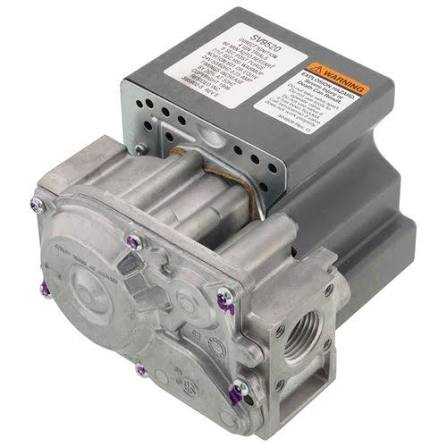

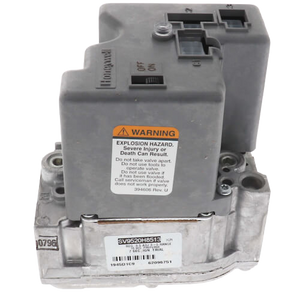

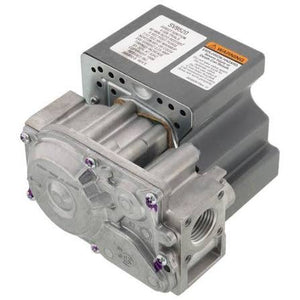

Honeywell SV9520H8513 SmartValve Fast-Slow Opening Gas Control
- Regular price
- $605.00
- Sale price
- $605.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SV9520H8513
Description
The Honeywell SV9520H8513 SmartValve is a combination gas control and electronic ignition module designed for gas-fired heating appliances. It uses a 120 V hot-surface igniter for direct main-burner ignition and a 24 V AC control circuit. The fast-slow opening valve includes a pressure regulator and supports integrated ignition sequencing and safety monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell / Resideo |
| Category | HVAC Equipment and Controls |
| Part Number | SV9520H8513 |
| Subcategory | Smart Gas Valves and Ignition Controls |
| Product Series | SmartValve |
| Product Type | Combination gas valve and ignition control |
| Fuel Type | Natural gas |
| Control Voltage | 24 V AC |
| Igniter Voltage | 120 V AC |
| Valve Opening | Fast-slow |
| Regulator Setting | 3.5 in. WC |
| Inlet Connection | 1/2 in. NPT |
| Outlet Connection | 1/2 in. NPT |
| Maximum Gas Capacity | 200 ft³/hr |
| Minimum Gas Capacity | 20 ft³/hr |
| Pre-Purge Time | 15 seconds |
| Ignition Trials Before Lockout | 4 |
| Dimensions (H × W × L) | 4.9 × 3.2 × 4.1 in |
| Weight | 2.01 lb |
Information About SV9520H8513
The SV9520H8513 belongs to Honeywell's SmartValve gas control series, now marketed under Resideo. It combines gas flow regulation with electronic ignition control in a single assembly. The valve is designed for natural gas applications and has a 3.5-inch water-column regulator setting. It also supports pre-purge, ignition trials, and diagnostic indication when installed in a compatible heating system.
Key Features:
-
SmartValve Control: Combines gas regulation and electronic ignition sequencing.
-
Fast-Slow Opening: Provides staged valve opening behavior during operation.
-
Hot-Surface Ignition: Uses a 120 V igniter to light the main burner.
-
24 V AC Control: Operates with compatible low-voltage control systems.
-
Integrated Pressure Regulator: Factory setting of 3.5 in. WC.
-
Natural Gas Application: Designed for compatible gas-fired appliances.
-
Ignition Safety Functions: Includes pre-purge and multiple ignition trials.
-
Diagnostic Indicator: Provides a status indication for troubleshooting.
The SV9520H8513 delivers the gas-flow control and ignition management required for compatible furnace and heating applications.
