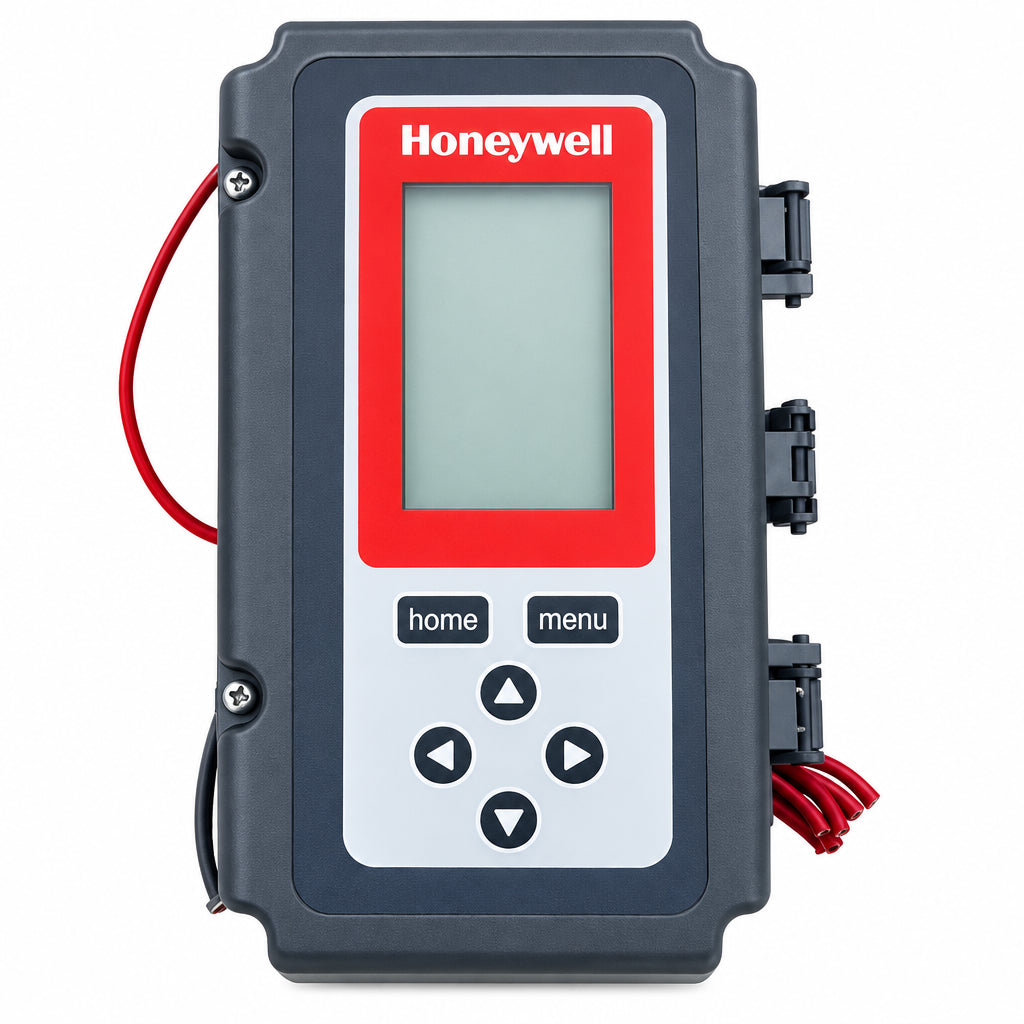

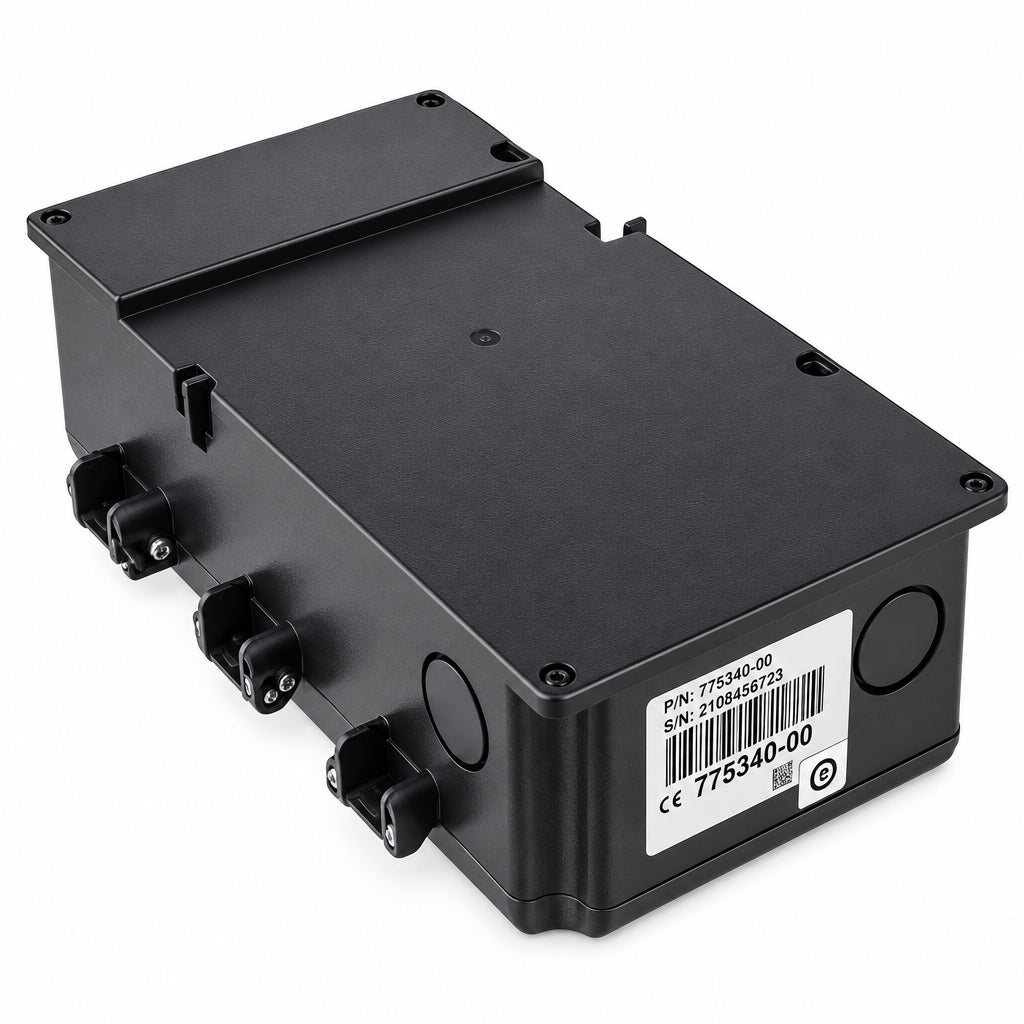

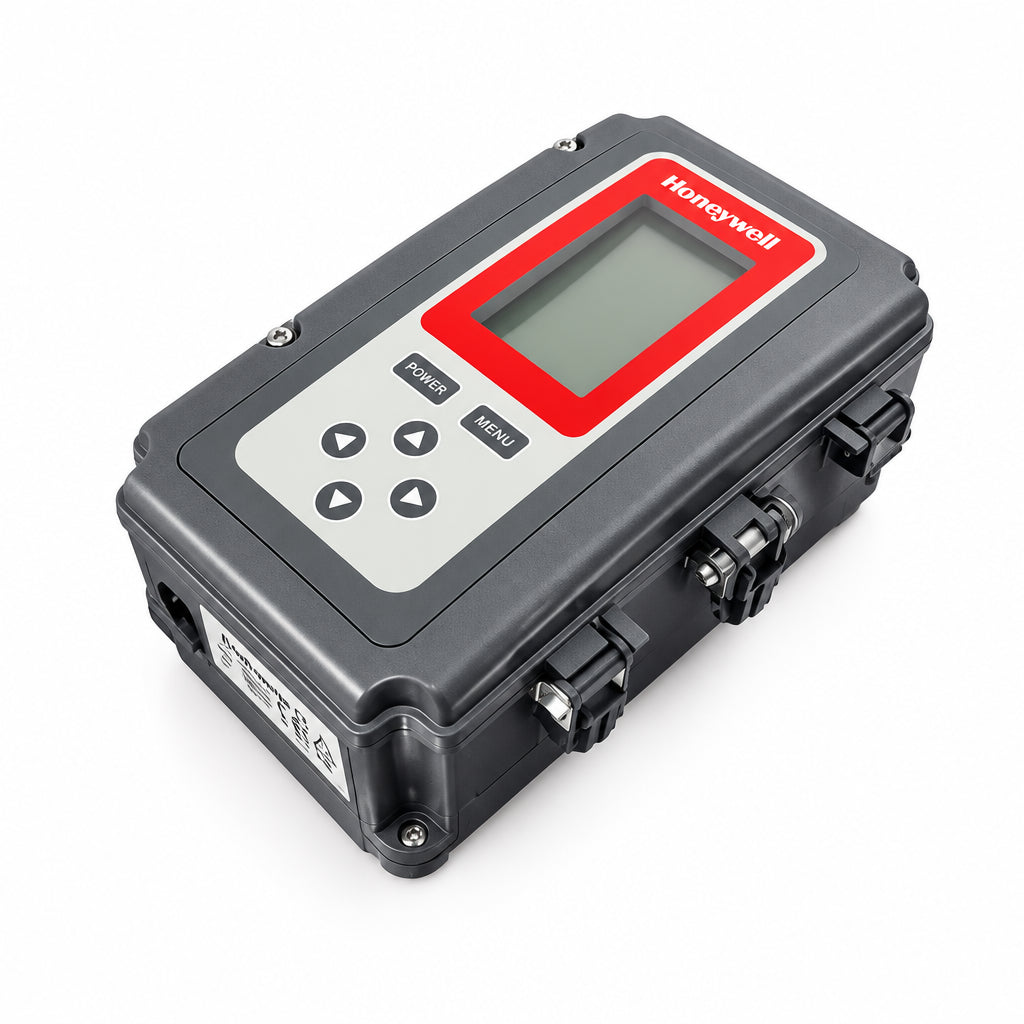

Honeywell T775B2040 Electronic Temperature Controller with 2 Sensor Inputs and 4 SPDT Relays
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T775B2040
Description
Honeywell T775B2040 is an electronic temperature controller designed for accurate on/off and analog temperature control with remote sensing capability. It supports two temperature sensor inputs and four SPDT relay outputs for controlling HVAC and other temperature-dependent equipment across a wide operating range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | T775B2040 |
| Subcategory | Electronic Temperature Controllers |
| Application | Electronic remote temperature control |
| Controller Type | Standard, NEMA 1 |
| Relay Outputs | 4 SPDT |
| Sensor Inputs | 2 |
| Floating Outputs | 2 |
| Voltage | 24 VAC or 120/240 VAC |
| Frequency | 50/60 Hz |
| Sensor Element | 1097 ohm PTC at 77°F (25°C) |
| Included Sensor | 50021579-001 (1 included) |
| Maximum Sensor Distance | Up to 1,000 ft (304 m) |
| Setpoint Temperature Range | -40°F to 248°F (-40°C to 120°C) |
| Accuracy | ±1°F at 77°F |
| Differential Temperature Range | 1°F to 150°F |
| Dimensions | 8-5/32 in H × 4-13/32 in W × 2-15/16 in D |
| Weight | 1.13 lb |
Information About T775B2040
The T775B2040 is a Honeywell T775 Series electronic remote temperature controller designed for applications requiring centralized temperature monitoring and equipment control. Its NEMA 1 enclosure contains four SPDT relay outputs, two sensor inputs, and two floating outputs for flexible control configurations. The controller operates from 24 VAC or 120/240 VAC power and accepts a 1097-ohm PTC temperature sensor, with one 50021579-001 sensor included. Remote sensor wiring can extend up to 1,000 ft, supporting installations where temperature measurements must be taken away from the controller location.
Key Features:
- Dual Sensor Inputs: Supports two temperature inputs for remote temperature sensing and control.
- Four SPDT Relays: Provides four relay outputs for switching connected HVAC or temperature-control equipment.
- Wide Temperature Range: Supports setpoints from -40°F to 248°F (-40°C to 120°C).
- Multi-Voltage Operation: Compatible with 24 VAC and 120/240 VAC electrical systems.
- Remote Sensor Capability: Supports sensor installation at distances up to 1,000 ft (304 m).
- Accurate Temperature Control: Provides ±1°F accuracy at 77°F for precise temperature monitoring.
- Adjustable Differential: Supports a differential temperature range from 1°F to 150°F.
- NEMA 1 Enclosure: Designed for protected indoor temperature-control installations.
The T775B2040 delivers the reliability and precision required for electronic temperature monitoring and automated HVAC equipment control.
