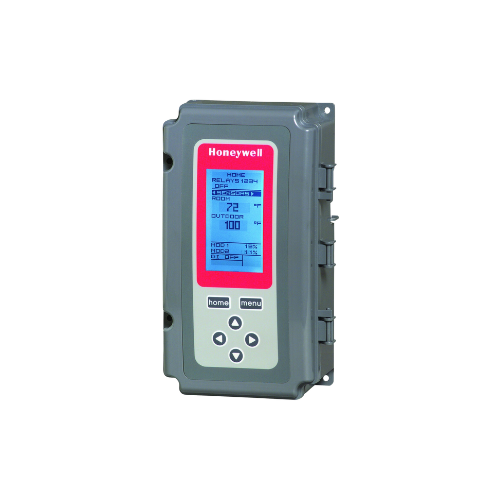

Honeywell T775M2014 Electronic Temperature Controller NEMA 4X 4 SPDT Relays 2 Analog Outputs
- Regular price
- $1,087.00
- Sale price
- $1,087.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T775M2014
Description
The Honeywell T775M2014 is an electronic temperature controller designed for remote temperature sensing and proportional control in commercial HVAC, refrigeration, and industrial applications. Featuring two sensor inputs, four SPDT relay outputs, and two configurable analog outputs, it provides precise temperature regulation through a NEMA 4X-rated enclosure.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Honeywell |
|
Category |
HVAC & Building Automation |
|
Part Number |
T775M2014 |
|
Subcategory |
Electronic Temperature Controllers |
|
Series |
T775 |
|
Product Type |
Electronic Remote Temperature Controller |
|
Control Type |
On/Off and Modulating |
|
Sensor Inputs |
2 |
|
Relay Outputs |
4 SPDT |
|
Analog Outputs |
2 |
|
Analog Output Signals |
Electronic Series 90, 4–20 mA, 0–10 VDC, 2–10 VDC |
|
Supply Voltage |
24 VAC or 120/240 VAC |
|
Supply Frequency |
50/60 Hz |
|
Enclosure Rating |
NEMA 4X; IP65 |
|
Temperature Setpoint Range |
-40°C to +120°C (-40°F to +248°F) |
|
Temperature Accuracy |
±1°C at 25°C; ±1°F at 77°F |
|
Temperature Differential |
0.5°C to 66°C (1°F to 150°F) |
|
Throttling Range |
0.5°C to 66°C (1°F to 150°F) |
|
Operating Ambient Temperature |
-40°C to +52°C at 50 Hz; -40°C to +60°C at 60 Hz |
|
Relay Rating at 24 VAC |
10 A Resistive |
|
Relay Rating at 120 VAC |
1/2 HP; 9.8 AFL; 58.8 ALR; 125 VA Pilot Duty |
|
Relay Rating at 240 VAC |
1/2 HP; 4.9 AFL; 29.4 ALR; 125 VA Pilot Duty |
|
Sensor Element |
1097 Ohm PTC at 25°C (77°F) |
|
Included Sensor |
T775-SENS-WR (1) |
|
Sensor Bulb Dimensions |
1/4 in Diameter × 2 in Length |
|
Maximum Sensor Distance |
1,000 ft (304 m) |
|
Control Functions |
PI/PID Modulation, Scheduling, Setback, Minimum Off-Time |
|
User Interface |
Digital Display with Programmable Controls |
|
Primary Applications |
HVAC Systems, Refrigeration, Heating Equipment, Industrial Temperature Control |
|
Weight |
3.5 lb |
Information About T775M2014
The T775M2014 is part of the Honeywell T775 Series of electronic remote temperature controllers developed for commercial, industrial, and agricultural temperature control applications. Its NEMA 4X enclosure incorporates a digital display, programmable control functions, and connections for remote temperature sensors, relay-controlled equipment, and modulating actuators. The controller supports two temperature sensor inputs, four SPDT relay outputs, and two analog outputs compatible with Electronic Series 90, 4–20 mA, 0–10 VDC, and 2–10 VDC control signals. With programmable scheduling, adjustable control parameters, and support for sensor distances up to 1,000 feet, it provides centralized temperature regulation for heating, cooling, and process control systems.
Key Features:
-
Dual Temperature Sensor Inputs: Supports two remote temperature sensors for monitoring and control applications.
-
Four SPDT Relay Outputs: Provides four changeover relay contacts for switching connected equipment.
-
Two Modulating Outputs: Supports proportional control through two configurable analog output channels.
-
Multiple Analog Signal Types: Compatible with Electronic Series 90, 4–20 mA, 0–10 VDC, and 2–10 VDC signals.
-
NEMA 4X Enclosure: Provides protection against dust, splashing water, and corrosion in suitable installations.
-
Wide Temperature Setpoint Range: Supports adjustable temperature settings from -40°C to +120°C (-40°F to +248°F).
-
Remote Sensor Compatibility: Allows temperature sensors to be installed up to 1,000 feet (304 m) from the controller.
-
Programmable PI/PID Control: Supports adjustable integral and derivative parameters for modulating temperature regulation.
-
Scheduling and Setback Functions: Includes time-based scheduling and digital input options for temperature setback and output control.
-
Adjustable Temperature Differential: Provides configurable switching differentials from 0.5°C to 66°C (1°F to 150°F).
-
Equipment Protection Functions: Includes minimum off-time control to help reduce excessive equipment cycling.
-
Included Temperature Sensor: Supplied with one T775-SENS-WR remote temperature sensor.
The T775M2014 delivers the reliability and precision required for commercial HVAC temperature regulation, remote sensing, and coordinated control of heating and cooling equipment.
