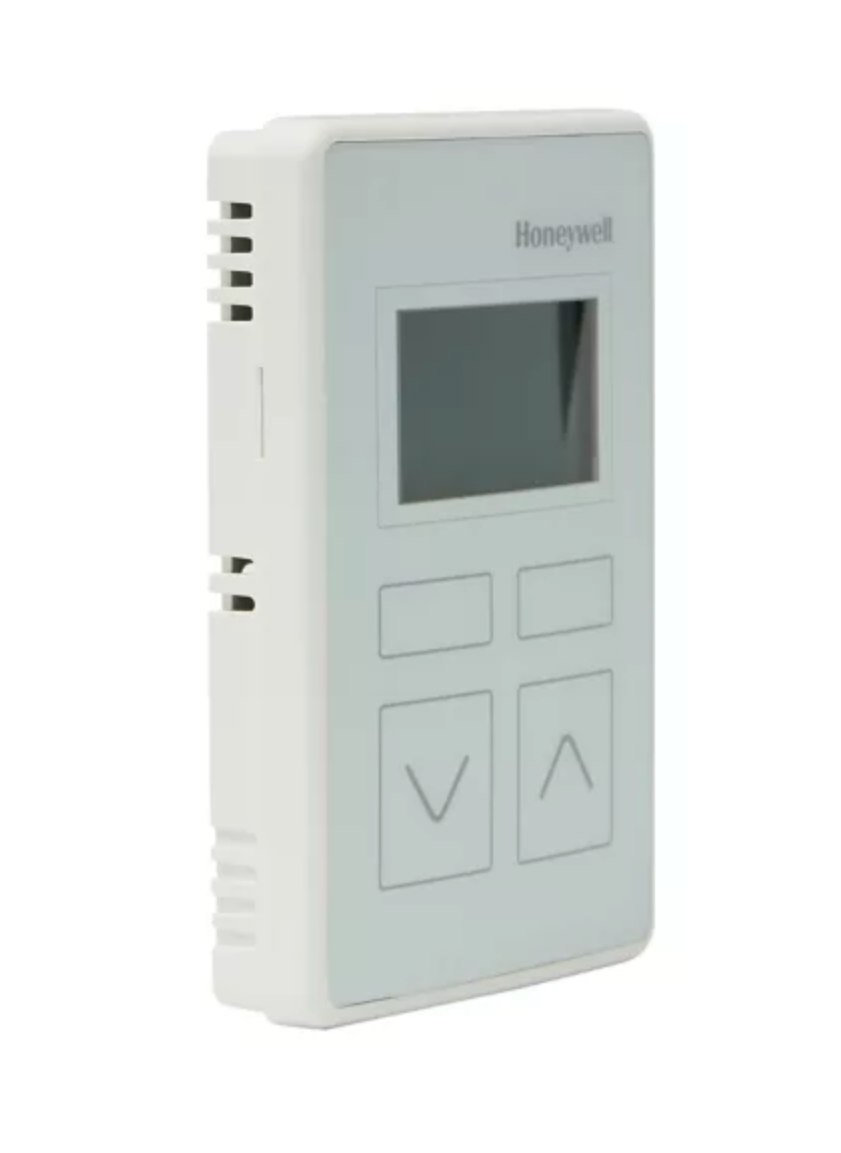

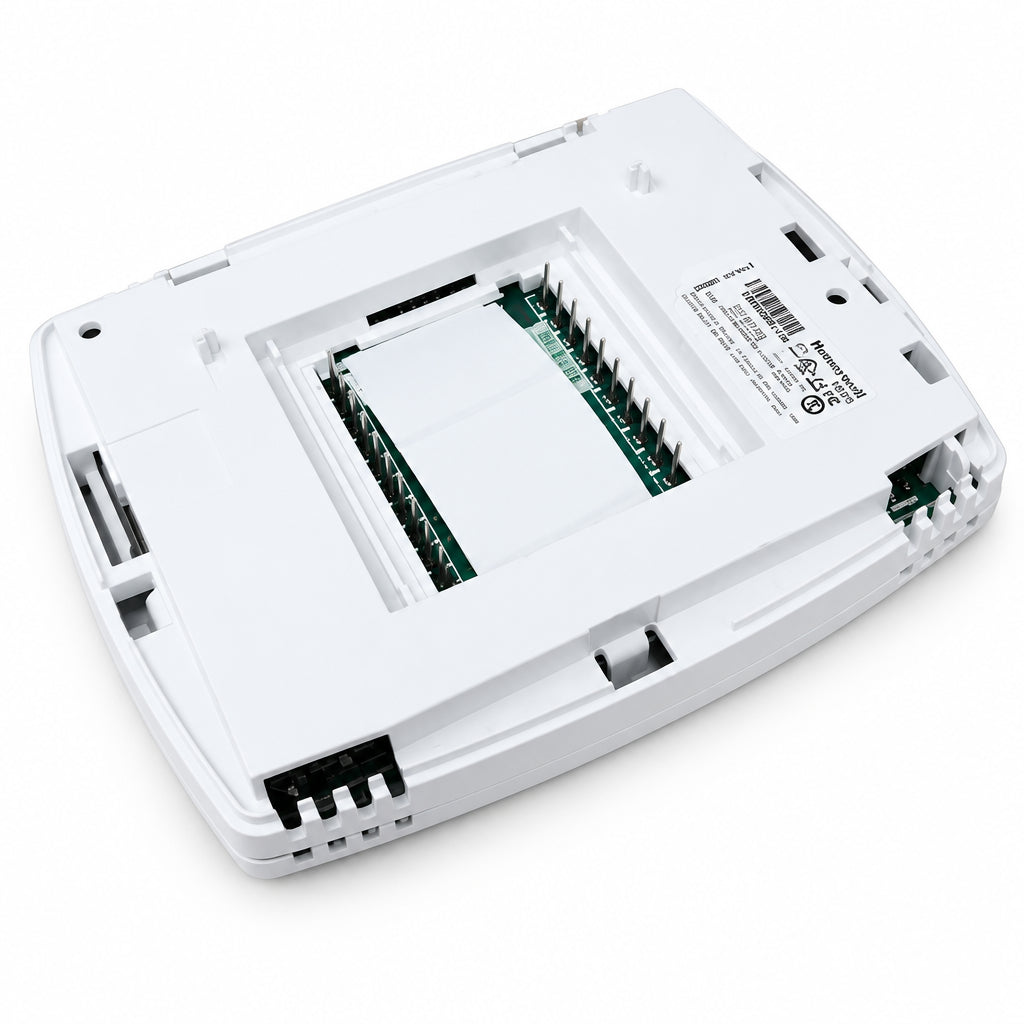

Honeywell TB3026B BACnet Fixed Function Thermostat for Fan Coil, RTU and Heat Pump
- Regular price
- $407.00
- Sale price
- $407.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TB3026B
Description
Honeywell TB3026B is a BACnet fixed-function thermostat designed for HVAC control in fan coil, rooftop unit, and heat pump applications. It combines integrated temperature and humidity sensing with configurable inputs, analog outputs, and relay outputs for centralized room and equipment control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | TB3026B |
| Subcategory | BACnet Thermostats |
| Product Type | BACnet Fixed Function Thermostat |
| Application | Fan Coil, Rooftop Unit, Heat Pump |
| Supply Voltage | 20–30 VAC |
| Frequency | 50/60 Hz |
| Integrated Sensors | Temperature and Humidity |
| Universal Inputs | 3 |
| Analog Outputs | 2 |
| Relay Outputs | 6 |
| Conventional System Stages | Up to 2 Heat / 2 Cool |
| Heat Pump Stages | Up to 2 Auxiliary Heat / 1 Compressor |
| Fan Coil Stages | 1 Heat / 1 Cool |
| System Switch Positions | OFF, AUTO |
| Fan Switch Positions | OFF, AUTO, LOW, MED, HI |
| Electrical Connections | Screw Terminals |
| Operating Temperature Range | 0°F to 120°F (-17°C to 48.9°C) |
| Operating Humidity | 5–95% RH, Non-Condensing |
| Dimensions | 4-5/8 in H × 6-1/32 in W |
| Weight | 0.76 lb |
Information About TB3026B
The TB3026B is a Honeywell BACnet thermostat designed for integration with compatible building automation systems, including WEBs-AX environments. Its fixed-function architecture incorporates integral temperature and humidity sensors along with three universal inputs, two analog outputs, and six relay outputs. The thermostat supports fan coil units, conventional heating and cooling systems, and heat pump configurations with multiple operating stages. It operates from a 20–30 VAC supply and provides wall or electrical-box mounting for commercial HVAC installations.
Key Features:
- BACnet Communication: Supports integration with compatible BACnet building automation and HVAC control systems.
- Integrated Sensors: Includes built-in temperature and humidity sensing for room condition monitoring.
- Flexible I/O Configuration: Provides three universal inputs, two analog outputs, and six relay outputs.
- Multiple HVAC Applications: Supports fan coil units, rooftop equipment, conventional systems, and heat pumps.
- Multi-Stage Control: Supports up to 2 heat/2 cool conventional stages and up to 2 auxiliary heat/1 compressor heat pump configurations.
- Fan Control: Provides OFF, AUTO, LOW, MED, and HI fan selection for compatible equipment.
- Wide Supply Range: Operates from a 20–30 VAC power source at 50 or 60 Hz.
- Flexible Mounting: Installs horizontally on a wall plate, directly to a wall, or on a 2 × 4-inch wiring box.
The TB3026B delivers the reliability and precision required for BACnet-connected temperature, humidity, and HVAC equipment control.
