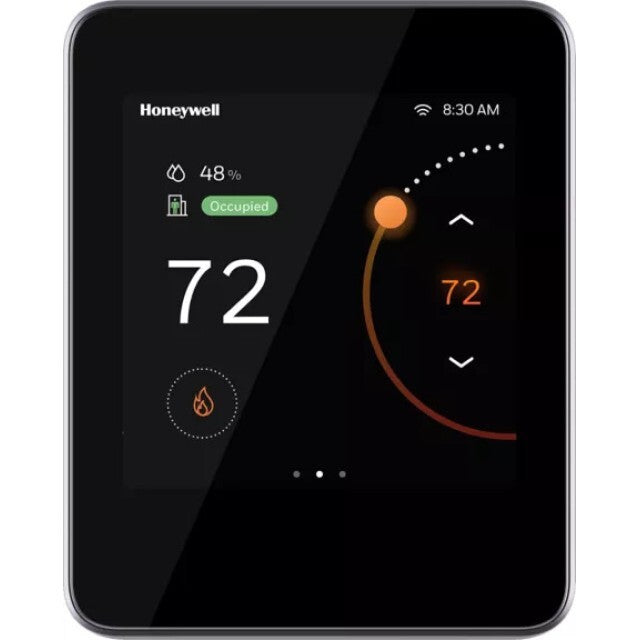

Honeywell TC500A-N Connected Commercial Thermostat with BACnet and Wi-Fi
- Regular price
- $552.00
- Sale price
- $552.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TC500A-N
Description
The Honeywell TC500A-N is a connected commercial thermostat designed to monitor and control RTU, AHU, and heat pump equipment. It combines a touchscreen interface with Wi-Fi, Bluetooth, BACnet IP, BACnet MS/TP, and Sylk communication for integration with commercial building automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Building Automation |
| Part Number | TC500A-N |
| Subcategory | Commercial Thermostats |
| Power Supply | 24 VAC, 50/60 Hz |
| Display | 4 in. Color Touchscreen |
| Resolution | 480 × 480 pixels |
| Universal Inputs | 2 |
| Communication | Wi-Fi, Bluetooth, BACnet IP, BACnet MS/TP, Sylk |
| Wi-Fi Standard | 802.11 b/g/n |
| Bluetooth | BLE 4.2 / Classic Bluetooth |
| BACnet MS/TP Interface | RS-485 |
| Integrated Sensors | Temperature, Humidity, Proximity |
| Mounting | Wall Mount |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Operating Humidity | 10–90% RH, non-condensing |
| Protection Class | IP20 |
| Dimensions | 4.469 × 3.594 × 1.05 in. |
| Weight | 0.585 lb |
Information About TC500A-N
The TC500A-N is part of the Honeywell TC500A commercial thermostat family and is intended for configurable commercial HVAC applications. It provides four configurable input terminals, consisting of two universal inputs and two universal input/output points, along with Sylk connections for compatible sensors and accessories. The thermostat includes integrated temperature, humidity, and proximity sensing and supports remote configuration through the Honeywell ConnectMe application. Its control functions include automatic changeover, scheduling, economizer coordination, demand limiting, staging, and PID control.
Key Features:
- Commercial HVAC Control: Controls and monitors RTU, AHU, and heat pump equipment.
- Touchscreen Interface: Provides a 4-inch color touchscreen with configurable user controls.
- Wi-Fi Connectivity: Supports 802.11 b/g/n wireless communication.
- BACnet Communication: Supports BACnet IP over Wi-Fi and BACnet MS/TP over RS-485.
- Universal I/O: Provides two universal inputs and two universal input/output points.
- Sylk Bus: Supports compatible Honeywell Sylk sensors and accessories.
- Integrated Sensors: Includes built-in temperature, humidity, and proximity sensors.
- Scheduling Functions: Supports weekly, holiday, and special-event scheduling.
The TC500A-N delivers the reliability and precision required for commercial HVAC monitoring, control, and building automation integration.
