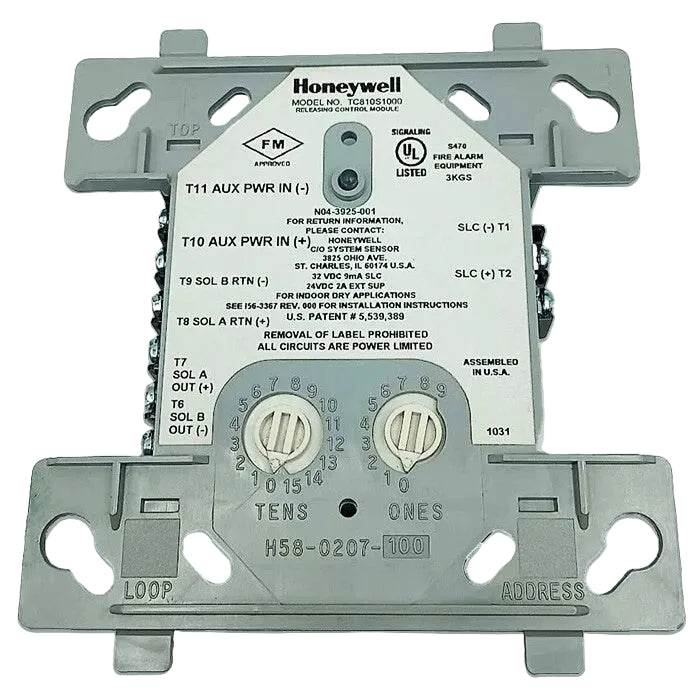

Honeywell TC810S1000 Intelligent FlashScan Releasing Control Module
- Regular price
- $692.00
- Sale price
- $692.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TC810S1000
Description
The Honeywell TC810S1000 is an intelligent releasing control module designed for fire suppression applications in FlashScan® systems. It provides supervised control of connected release-agent solenoids and monitors the releasing circuit for normal, open, or short-circuit conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm |
| Part Number | TC810S1000 |
| Subcategory | Releasing Control Module |
| Module Type | Intelligent Releasing Control Module |
| System Compatibility | FlashScan® |
| Application | Fire Suppression Releasing |
| Activation Method | Redundant Activation Protocol |
| Confirmation Window | 3 Seconds |
| Solenoid Configuration | One 24 VDC Solenoid or Two 12 VDC Solenoids in Series |
| Circuit Supervision | Normal, Open, Short Circuit |
| Output Termination | Two Pairs |
| Wiring | Fault-Tolerant |
| Status Indicator | Panel-Controlled LED |
| Compatible Control Panel | Honeywell Compatible System Control Panel |
| Weight | 1 lbs |
Information About TC810S1000
The TC810S1000 is an addressable releasing module intended for use with compatible Honeywell fire alarm control panels. Its redundant activation protocol requires a pair of activation signals followed by a pair of confirmation signals before releasing occurs. The module supports connection to one 24 VDC solenoid or up to two 12 VDC solenoids connected in series. Two pairs of output termination points are provided for fault-tolerant wiring, along with a panel-controlled LED for status indication.
Key Features:
- Releasing Control: Provides addressable control for fire suppression release-agent solenoids.
- FlashScan Compatibility: Designed for compatible Honeywell FlashScan® fire alarm systems.
- Redundant Activation: Requires paired activation and confirmation signals before initiating release.
- Circuit Supervision: Monitors connected load wiring and reports NORMAL, OPEN, or SHORT CIRCUIT status.
- Solenoid Support: Controls one 24 VDC solenoid or up to two 12 VDC solenoids in series.
- Fault-Tolerant Wiring: Provides two pairs of output termination points for redundant wiring configurations.
- Automatic Reset: Resets automatically when the required confirmation signals are not received within the activation window.
- Status Indicator: Includes a panel-controlled LED for operating and system status indication.
The TC810S1000 delivers the reliability and precision required for fire suppression releasing and monitored life-safety control applications.
