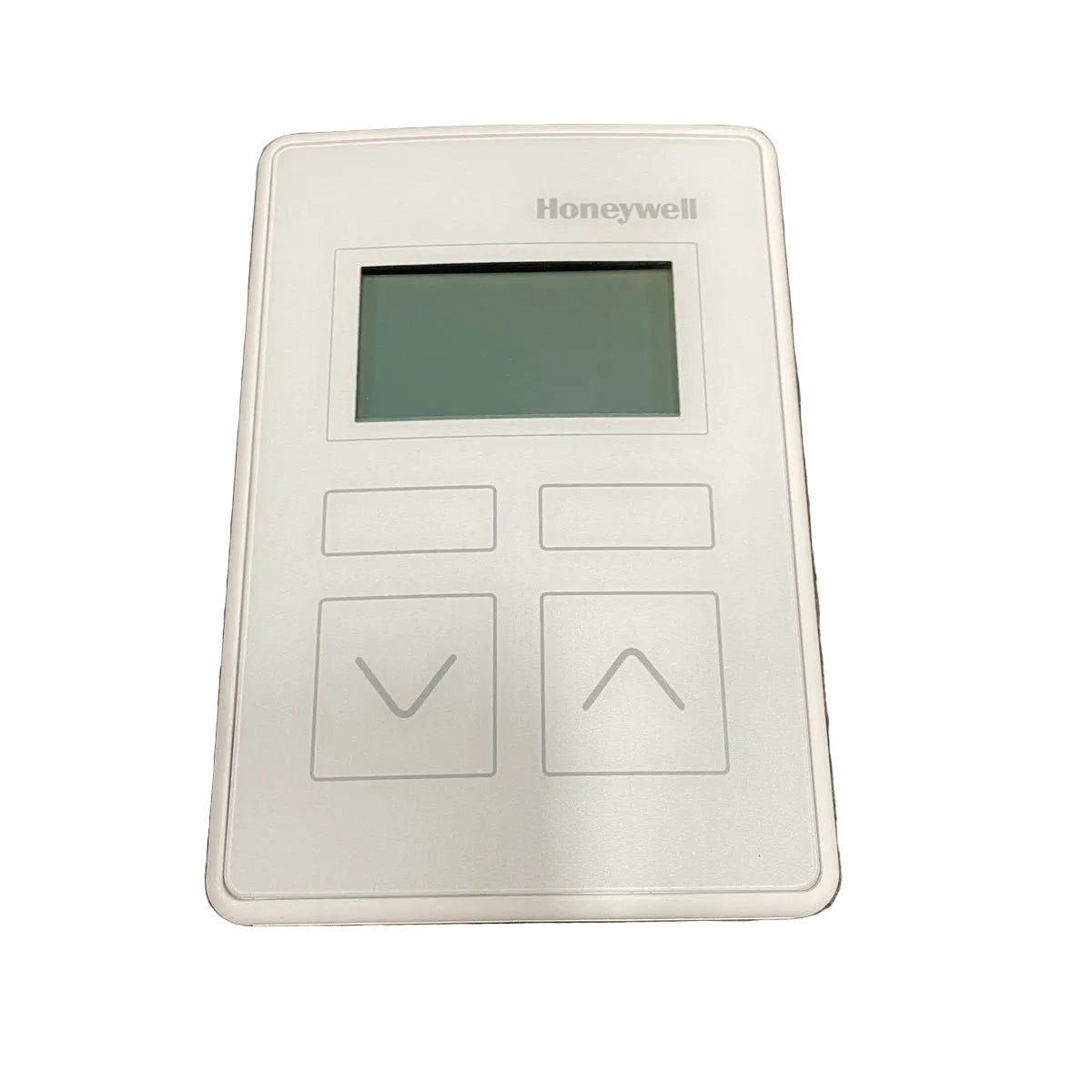

Honeywell TR42-CO2 LCD Wall Module Temperature and CO₂ Sensor
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TR42-CO2
Description
The Honeywell TR42-CO2 is an LCD wall module designed to measure room temperature and carbon dioxide concentration in commercial HVAC applications. It communicates with compatible Honeywell controllers through a two-wire Sylk bus and provides a backlit LCD interface for displaying sensor information and user-adjustable settings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Building Automation |
| Part Number | TR42-CO2 |
| Subcategory | Air Quality Sensors |
| Product Type | LCD Wall Module |
| Sensor Type | Temperature and CO₂ |
| CO₂ Measurement Range | 0–2,000 ppm |
| CO₂ Accuracy | ±(30 ppm + 3% of measured value) |
| Temperature Range | 0–52°C (32–125°F) |
| Temperature Accuracy | ±0.5°C at 25°C (±0.36°F at 77°F) |
| Display | Backlit Monochrome LCD |
| Setpoint Range | 10–65°C (55–150°F), configurable |
| Mounting | Wall / Vertical |
| Dimensions | 84 × 121 × 21 mm (3.30 × 4.76 × 0.83 in.) |
| Material | ABS Plastic |
| Approvals | CE, UL94-V0, FCC Part 15 Class B |
| Weight | 0.103 kg |
Information About TR42-CO2
The TR42-CO2 is part of the Honeywell TR42 series of LCD wall modules for building automation systems. It combines an integral temperature sensor with a CO₂ concentration sensor and supports connection to compatible controllers through the Sylk bus. The CO₂ sensor measures from 0 to 2,000 ppm and uses automatic background calibration to maintain measurement performance. Its LCD interface can display sensor readings and provide temperature setpoint, fan-speed, and occupancy controls depending on the controller configuration.
Key Features:
- Temperature Sensing: Measures room temperature with an integral temperature sensor.
- CO₂ Sensing: Measures carbon dioxide concentration from 0 to 2,000 ppm.
- LCD Interface: Provides a backlit monochrome display for sensor and control information.
- Sylk Communication: Uses a two-wire Sylk bus for power and data communication.
- Setpoint Adjustment: Supports configurable temperature setpoint adjustment.
- Fan Control: Provides configurable fan-speed control through the wall-module interface.
- Automatic Calibration: Uses automatic background calibration for the CO₂ sensor.
- Wall Mounting: Designed for vertical wall installation in commercial HVAC spaces.
The TR42-CO2 delivers the reliability and precision required for room temperature and CO₂ monitoring in building automation systems.
Description
The Honeywell TR42-CO2 is an LCD wall module designed to measure room temperature and carbon dioxide concentration in commercial HVAC applications. It communicates with compatible Honeywell controllers through a two-wire Sylk bus and provides a backlit LCD interface for displaying sensor information and user-adjustable settings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Building Automation |
| Part Number | TR42-CO2 |
| Subcategory | Air Quality Sensors |
| Product Type | LCD Wall Module |
| Sensor Type | Temperature and CO₂ |
| CO₂ Measurement Range | 0–2,000 ppm |
| CO₂ Accuracy | ±(30 ppm + 3% of measured value) |
| Temperature Range | 0–52°C (32–125°F) |
| Temperature Accuracy | ±0.5°C at 25°C (±0.36°F at 77°F) |
| Display | Backlit Monochrome LCD |
| Setpoint Range | 10–65°C (55–150°F), configurable |
| Mounting | Wall / Vertical |
| Dimensions | 84 × 121 × 21 mm (3.30 × 4.76 × 0.83 in.) |
| Material | ABS Plastic |
| Approvals | CE, UL94-V0, FCC Part 15 Class B |
| Weight | 0.103 kg |
Information About TR42-CO2
The TR42-CO2 is part of the Honeywell TR42 series of LCD wall modules for building automation systems. It combines an integral temperature sensor with a CO₂ concentration sensor and supports connection to compatible controllers through the Sylk bus. The CO₂ sensor measures from 0 to 2,000 ppm and uses automatic background calibration to maintain measurement performance. Its LCD interface can display sensor readings and provide temperature setpoint, fan-speed, and occupancy controls depending on the controller configuration.
Key Features:
- Temperature Sensing: Measures room temperature with an integral temperature sensor.
- CO₂ Sensing: Measures carbon dioxide concentration from 0 to 2,000 ppm.
- LCD Interface: Provides a backlit monochrome display for sensor and control information.
- Sylk Communication: Uses a two-wire Sylk bus for power and data communication.
- Setpoint Adjustment: Supports configurable temperature setpoint adjustment.
- Fan Control: Provides configurable fan-speed control through the wall-module interface.
- Automatic Calibration: Uses automatic background calibration for the CO₂ sensor.
- Wall Mounting: Designed for vertical wall installation in commercial HVAC spaces.
The TR42-CO2 delivers the reliability and precision required for room temperature and CO₂ monitoring in building automation systems.
