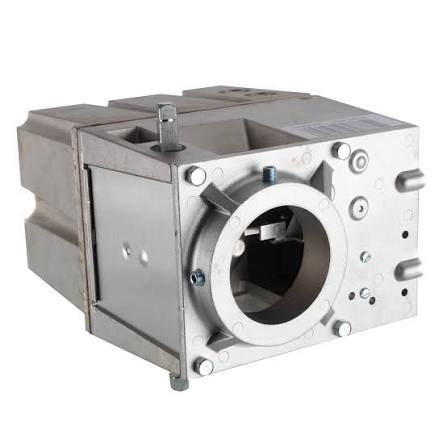

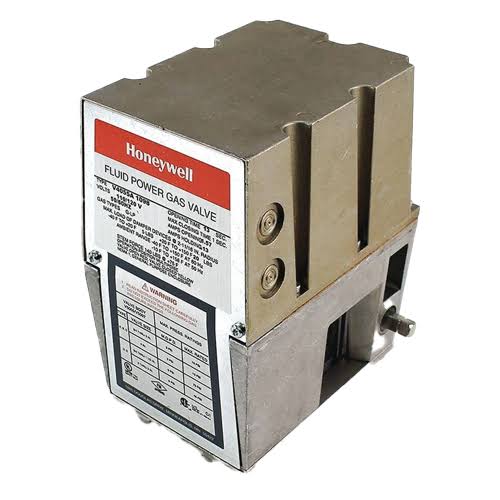

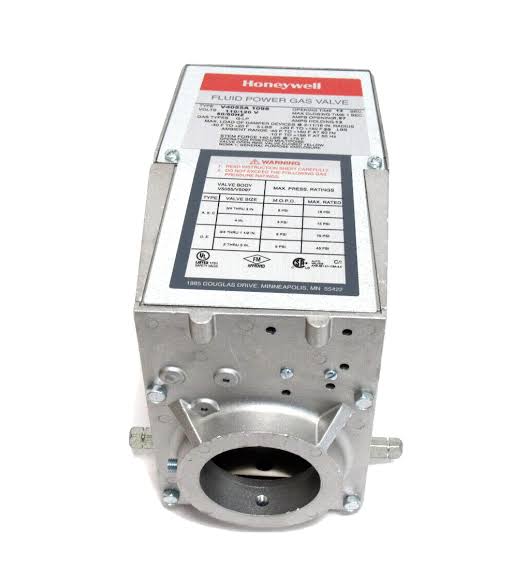

Honeywell V4055A1098 On-Off Fluid Power Gas Valve Actuator with Damper Shaft
- Regular price
- $1,177.00
- Sale price
- $1,177.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V4055A1098
Description
The Honeywell V4055A1098 is an on-off fluid power gas valve actuator designed to operate compatible V5055 and V5097 gas valve bodies in commercial and industrial burner systems. It operates from a 120 volt alternating current supply and provides a 13-second opening time with rapid closing for gas supply and safety shutoff control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Flame Safety Products |
| Part Number | V4055A1098 |
| Subcategory | Valve Actuator |
| Product Series | V4055 |
| Product Type | On-Off Fluid Power Gas Valve Actuator |
| Supply Voltage | 120 Volts Alternating Current |
| Frequency | 50 or 60 Hertz |
| Opening Time | 13 Seconds |
| Closing Time | Less Than 1 Second |
| Maximum Safe Operating Pressure | 5 Pounds per Square Inch |
| Compatible Valve Bodies | Honeywell V5055 and V5097 |
| Damper Shaft | Included |
| Internal Auxiliary Switch | No |
| Operating Temperature Range | -10 to 158 Degrees Fahrenheit |
| Mounting | Direct to Valve Bonnet with Three Setscrews |
| Weight | 14.16 lbs |
Information About V4055A1098
The V4055A1098 is a Honeywell V4055 series fluid power actuator engineered for low-pressure industrial gas valve applications. Its assembly mounts directly to a compatible valve bonnet using three setscrews and includes a damper shaft for coordinated combustion-air control arrangements. The actuator is compatible with Honeywell V5055 and V5097 valve bodies and supports natural gas and liquefied petroleum gas burner applications when installed with the appropriate valve assembly. Its on-off mechanism opens in approximately 13 seconds and closes in less than one second, providing controlled opening with rapid safety shutoff.
Key Features:
- On-Off Fluid Power Operation: Provides electrically controlled actuation for compatible industrial gas valve bodies used in burner fuel systems.
- 13-Second Opening Time: The actuator reaches the open position in approximately 13 seconds at its specified operating frequency.
- Rapid Closing: Closing time is less than one second for prompt interruption of gas flow when the actuator is de-energized.
- 120 Volt Power Supply: Designed for operation from a 120 volt alternating current electrical source at 50 or 60 hertz.
- Damper Shaft Included: The V4055A1098 incorporates a damper shaft for applications requiring associated combustion-air damper operation.
- Valve Body Compatibility: Designed for use with Honeywell V5055 and V5097 industrial gas valve families.
- Low-Pressure Application: Rated for a maximum safe operating pressure of 5 pounds per square inch, equivalent to 34 kilopascals.
- Position Indication: The actuator and valve arrangement provides visual indication of valve position, using red for open and yellow for closed.
The V4055A1098 delivers the reliability and precision required for controlled gas valve operation and rapid safety shutoff in commercial and industrial burner systems.
