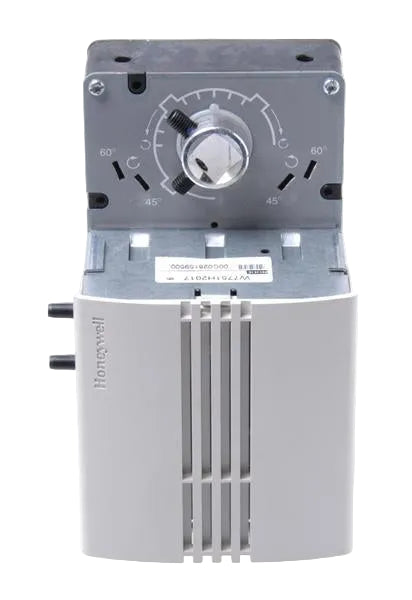

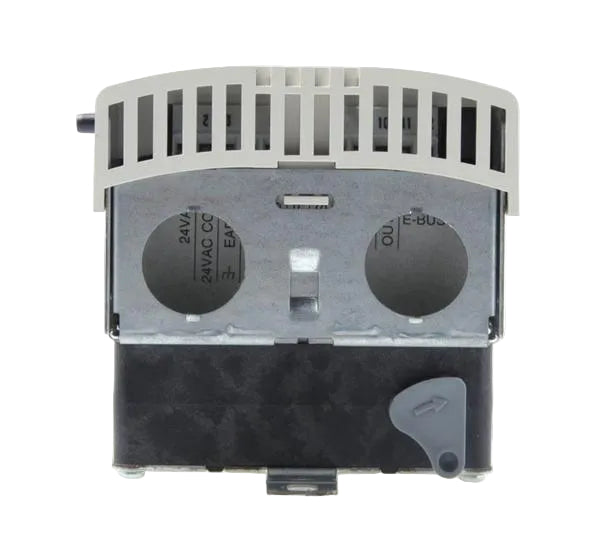

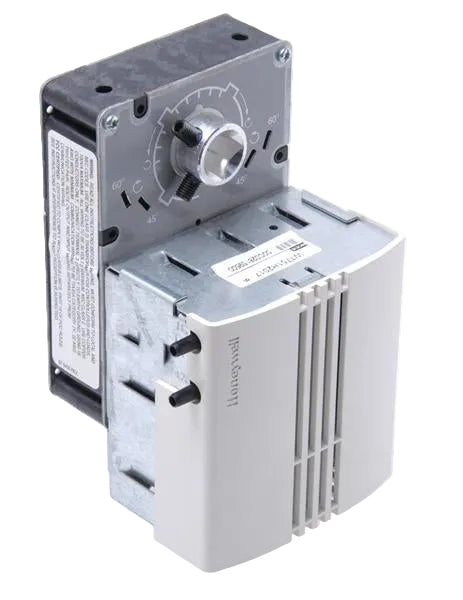

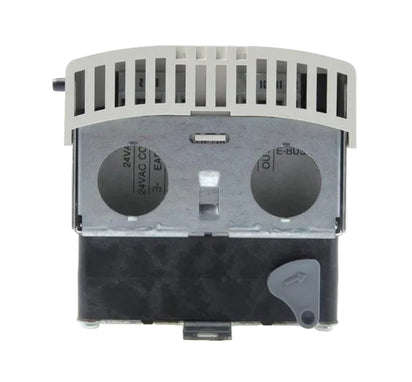

Honeywell W7751H2017 Excel 10 Smart VAV Box Controller and Actuator
- Regular price
- $8,099.00
- Sale price
- $8,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: W7751H2017
Description
Honeywell W7751H2017 is an Excel 10 Smart VAV Actuator that combines a variable air volume box controller with a direct-coupled actuator for HVAC zone airflow and damper control. It provides pressure-independent airflow control, pressure-dependent damper control, and additional outputs for fan or VAV box reheat applications. The unit operates on a 20–30 VAC supply and communicates through the Echelon LonWorks network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | W7751H2017 |
| Subcategory | VAV Controllers & Actuators |
| Product Series | Excel 10 |
| Product Type | Smart VAV Actuator / VAV Box Controller |
| Power Supply | 20–30 VAC |
| Power Consumption | 8 VA maximum at 50/60 Hz |
| Ambient Temperature Rating | 32°F to 122°F |
| Actuator Torque | 70 lb-in |
| Stroke | 45° / 60° / 90° |
| Actuator Timing | 90 seconds |
| Communication Speed | 78 kilobits |
| Airflow Control | Pressure-independent and pressure-dependent |
| Weight | 5 lbs |
Information About W7751H2017
The W7751H2017 is part of Honeywell’s Excel 10 family of integrated VAV control devices designed for zone-level HVAC applications. Its factory-integrated controller and actuator assembly mounts directly to a VAV box damper shaft and provides up to 70 lb-in of actuator torque with 90-second timing. The controller uses a Microbridge airflow sensing technology and supports both standalone operation and E-Bus network communications through a high-speed 78 kilobit LonWorks protocol. The device can also control series or parallel fan functions and staged electric or modulating hot-water reheat equipment within suitable VAV configurations.
Key Features:
- Integrated VAV Control: Combines the Excel 10 VAV box controller and direct-coupled actuator in one factory-integrated assembly.
- Airflow Regulation: Supports pressure-independent airflow control and pressure-dependent damper control for zone HVAC applications.
- Actuator Output: Provides up to 70 lb-in of torque for direct damper positioning.
- Fast Actuation: Uses a 90-second actuator timing with selectable 45°, 60°, or 90° stroke positions.
- LonWorks Communication: Uses Echelon LonWorks E-Bus protocol with a 78 kilobit communications network.
- Standalone Operation: Can function independently while also supporting networked control through the E-Bus.
- Reheat and Fan Outputs: Provides two additional outputs for fan operation or VAV box reheat control.
- Flow Sensing: Incorporates an airflow sensor for regulated VAV control and zone-level operation.
The W7751H2017 delivers the reliability and precision required for VAV airflow regulation, damper positioning, and integrated zone HVAC control.
