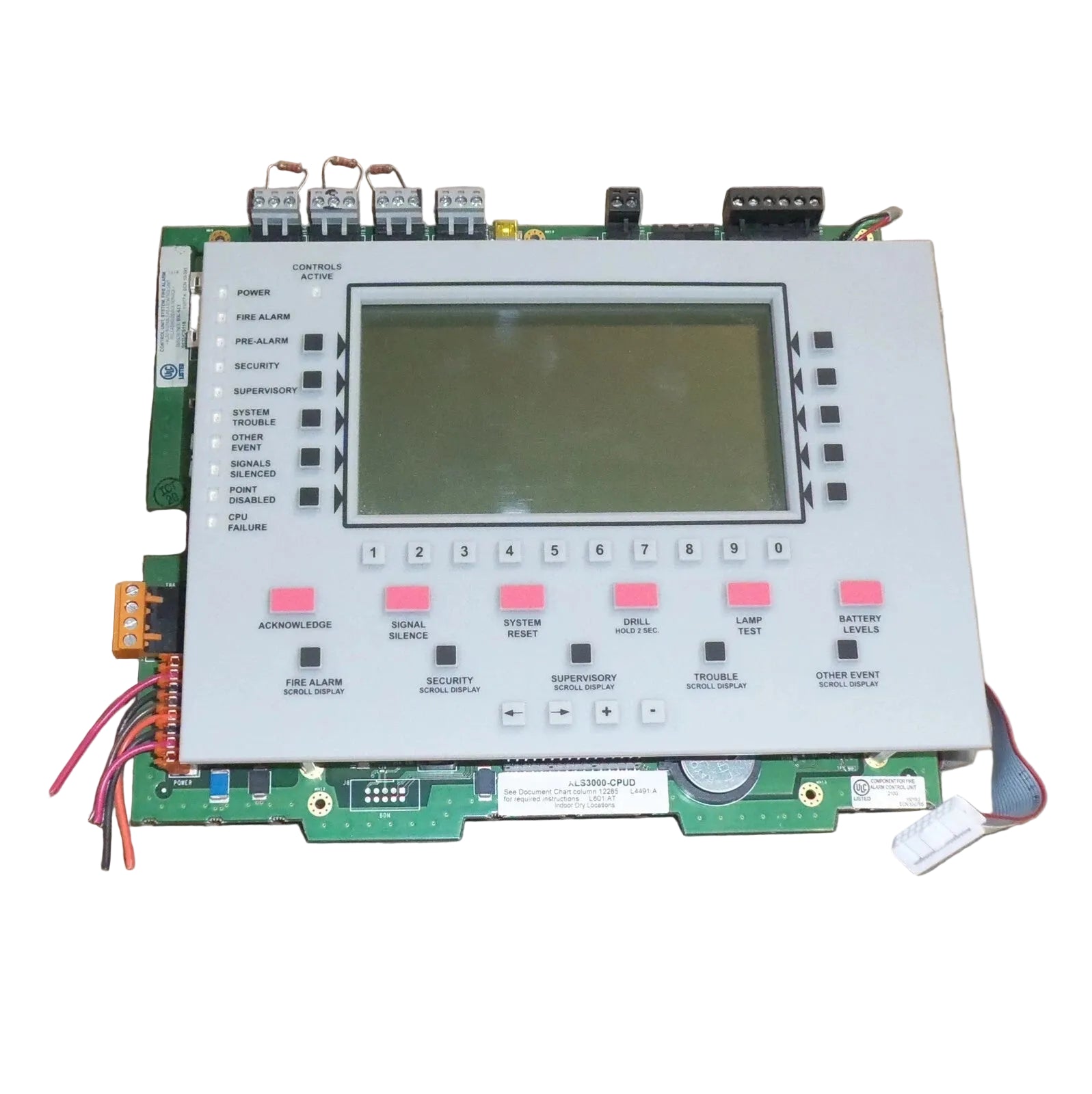

Honeywell XLS3000-CPUD Intelligent Fire Alarm CPU and Display Assembly
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XLS3000-CPUD
Description
The Honeywell XLS3000-CPUD is the central processing unit and operator display assembly for the XLS3000 intelligent addressable fire alarm control system. It combines the system CPU with a 640-character display and keypad, providing centralized processing, programming, event monitoring, and operator control for large fire alarm installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | XLS3000-CPUD |
| Subcategory | Fire Alarm CPU Modules |
| Product Series | XLS3000 |
| Product Type | CPU and Display Assembly |
| Display | 640-Character Display with Keypad |
| SLC Capacity | 1 Loop, Expandable to 10 |
| Intelligent Detectors | Up to 159 per Loop |
| Addressable Modules | Up to 159 per Loop |
| Programmable Software Zones | More than 2,000 |
| ACS Annunciator Capacity | Up to 32 Addresses |
| Board Current Draw | 0.340 A Standby/Alarm |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 10%–93%, Non-Condensing |
| Country of Origin | USA |
| Weight | 5.95 lb (2.70 kg) |
Information About XLS3000-CPUD
The XLS3000-CPUD is a Honeywell XLS3000 Series CPU assembly configured with an integrated display and keypad for intelligent addressable fire alarm applications. Its architecture supports one intelligent signaling line circuit and can be expanded to as many as 10 loops, with each loop supporting up to 159 intelligent detectors and 159 addressable monitor or control modules. The controller provides capacity for more than 2,000 programmable software zones and supports ACS annunciation equipment for distributed system indication and control. Unlike the XLS3000-CPUND CPU-only version, the CPUD configuration includes the 640-character operator display required for local system interaction.
Key Features:
- Integrated CPU and Display: Combines the XLS3000 central processor with a 640-character operator display and keypad.
- Expandable SLC Architecture: Provides one intelligent signaling line circuit expandable to a maximum of 10 loops.
- High Device Capacity: Supports up to 159 intelligent detectors and 159 addressable monitor/control modules per loop.
- Extensive Zone Programming: Accommodates more than 2,000 programmable software zones for system configuration.
- ACS Annunciator Support: Supports up to 32 ACS annunciator addresses for distributed indication and control.
- Operator Interface: Integrated keypad and display provide access to alarm information, system status, programming, and operating functions.
- Modular System Design: Integrates with XLS3000 power supplies, loop control modules, annunciators, and other compatible system hardware.
- Fire Alarm Processing: Provides centralized processing for intelligent detection, alarm signaling, supervision, and programmed control functions.
The XLS3000-CPUD delivers the reliability and precision required for centralized processing, monitoring, and control in large intelligent addressable fire alarm systems.
