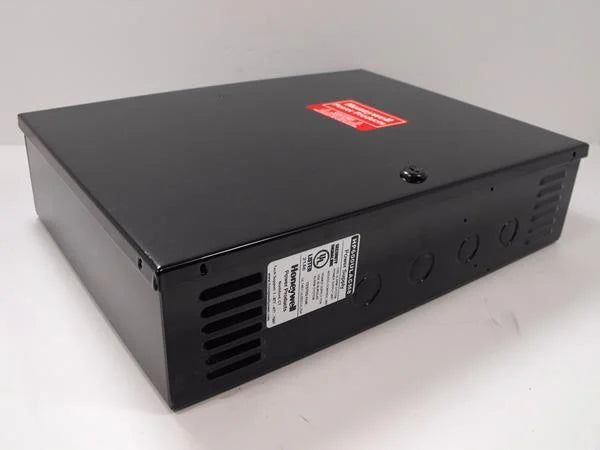

HP600ULACM8 | Honeywell Power Supplies with Controllers
- Regular price
- $569.00
- Sale price
- $569.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HP600ULACM8
Description
The HP600ULACM8 is a dual-voltage 12/24VDC power supply and access control distribution unit, designed for use in card access systems. It features eight individually controlled outputs, integrated battery charging, and selectable power distribution modes for maximum flexibility and reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Power Supplies
|
| Part Number | HP600ULACM8 |
| Subcategory | Power Supply |
| Product Type | Power Supply with Access Controller |
| Output Voltage | Jumper-selectable 12VDC or 24VDC |
| Output Current | 6.0A continuous at 12VDC or 24VDC |
| Input Voltage | 120 VAC, 60 Hz, 2.5 A |
| Outputs | 8 independently controlled PTC-protected circuits |
| Output Configuration | Power or dry Form C contacts (user-selectable) |
| Control Inputs | NO dry contact or open collector |
| Battery Charging | Built-in charger for SLA or gel batteries |
| Battery Capacity | Supports up to 18 Ah in-cabinet; expandable to 120 Ah externally |
| AC Failure Detection | Fail-safe dry contact within 1 minute |
| Enclosure Dimensions | 13 in (H) x 13.5 in (W) x 3.25 in (D) |
| Controller Dimensions | 8 in x 4.5 in x 1.25 in (20.32 cm x 11.43 cm x 3.175 cm) |
| Indicators | AC (green), DC (red), Battery Disconnected (yellow), Fault LEDs |
| Safety Features | Thermal overload, short circuit, polarity reverse, high/low voltage |
| Certifications | UL 294, UL 603, UL 1481, CSFM 7300-1637:101, MEA 114-07-E |
| Product Status | Active |
| Weight | 13 lbs |
Information About HP600ULACM8
The HP600ULACM8 is part of Honeywell’s access power controller product line, combining a robust 12VDC/24VDC power supply with an HPACM8 access controller module. Designed for integration with keypads, card readers, PIR sensors, and request-to-exit devices, the unit provides eight power-limited, PTC-protected outputs configurable via open-collector sink or NO dry contact inputs. Each output can switch power independently or be set as an isolated dry contact (Form C). Built-in support for fail-safe dry contacts, automatic battery switchover, and status-indicating LEDs makes it ideal for access control systems requiring secure and uninterrupted power delivery. The system is UL-listed and housed in a durable metal cabinet with a field-serviceable disconnect switch and battery charging capabilities for sealed lead-acid batteries.
Key Features:
- Dual Voltage Output: Selectable 12VDC or 24VDC via onboard jumper.
- 8 Power-Limited Outputs: Independently controlled and PTC-protected.
- Dry Contact Input Triggering: Supports NO dry contacts or open-collector inputs.
- Form C Output Configurations: Each output may be set as isolated relay contact.
- Battery Backup Support: Instant switchover on AC loss with low-voltage disconnect.
- Visual Status LEDs: Indicators for AC, DC, battery presence, and output faults.
- Service Switch & Cord: Built-in disconnect and 3-conductor power cord for ease of maintenance.
- Overcurrent and Thermal Protection: Secures components from overload and short circuit.
- Field-Wired Compatibility: Works with access readers, push-to-exit devices, and FACPs.
- UL Certified: Listed under UL 294, UL 603, UL 1481 for access control, burglar, and fire signaling.
The HP600ULACM8 delivers reliable multi-output power distribution for modern access control systems, with integrated supervision and field configurability.
