HPD63F160 | Siemens Molded Case Circuit Breaker
- Regular price
- $5,549.00
- Sale price
- $5,549.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HPD63F160
Description

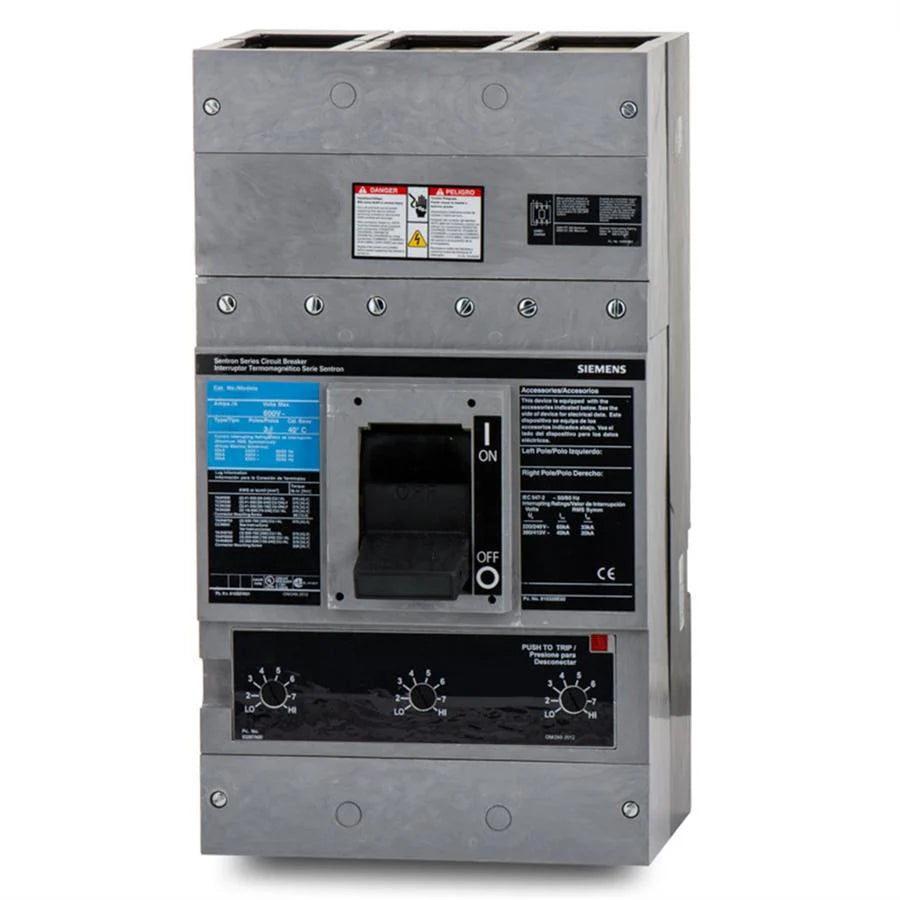

The HPD63F160 by Siemens is a molded case circuit breaker from the Sentron Series. It features a 3-pole configuration for 3-phase systems, rated at 1600A and 600V. This circuit breaker is designed with a high interrupting capacity of 65kA at 480V, ensuring robust protection against overcurrents. Operating at a temperature of up to 40 degrees Celsius, it is suitable for feed-thru applications and is characterized by its thermal magnetic operation within a molded case configuration.
Technical Specifications
|
Part Number |
HPD63F160 |
|
Manufacturer |
Siemens Breakers |
|
Family |
Sentron Series |
|
Pole |
3 |
|
Amp |
1600 |
|
Volt |
600 |
|
Phase |
3 |
|
Category |
Molded Case / 3-Pole |
|
Connection |
Bolt-On |
|
Type |
HRD |
|
Protection |
Thermal Magnetic |
|
AIC Ratings |
65kA 240V |
Information About HPD63F160
The Siemens HPD63F160 molded case circuit breaker belongs to the Sentron Series, specifically designed as type HPD for three poles (3P) in a three-phase (3PH) configuration. It is rated for 1600A current capacity and operates at a voltage of 600V. The circuit breaker boasts a high interrupting capacity of 65kA at 480V, ensuring robust protection against short circuits and overloads in industrial applications.
Engineered for reliability in demanding environments, the HPD63F160 features a thermal magnetic trip unit mechanism, combining thermal protection against overcurrents with magnetic protection against short-circuit faults. It is designed to maintain operational integrity at ambient temperatures up to 40 degrees Celsius, suitable for a wide range of industrial settings where varying environmental conditions may apply.
The breaker is equipped with feed-thru terminals, facilitating straightforward electrical connections in electrical distribution systems. It is a frame-only unit, indicating it lacks additional components such as auxiliary switches or shunt trips, focusing solely on its primary function of circuit protection.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
