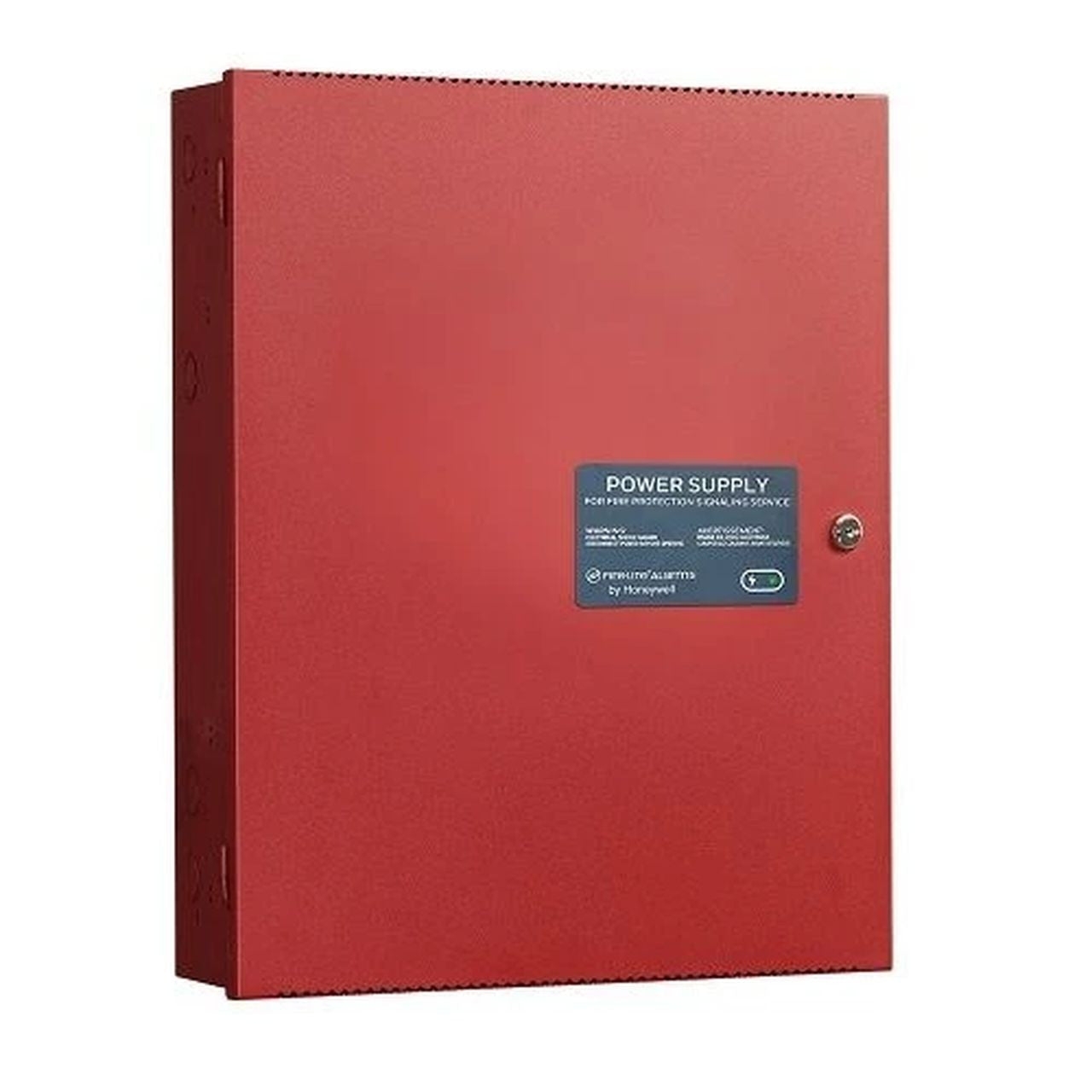

HPF-PS10 | Honeywell 10-Amp Remote Power Supply with Battery Charging Capability
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HPF-PS10
Description
The Honeywell HPF-PS10 is a 10-amp, 120 VAC remote power supply designed for fire alarm and auxiliary system applications. It supports up to seven configurable output circuits, integral battery charging, and Class A/B wiring options with synchronization for multiple notification appliances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | HPF-PS10 |
| Subcategory | Remote Power Supply |
| Output Capacity | 10 A total, 3 A maximum per circuit |
| Output Circuits | Up to 7 independently configurable (NACs, auxiliary power, door holder) |
| Input Voltage | 120 VAC |
| Wiring Support | Class A or Class B (via ZNAC-PS converter card, sold separately) |
| Synchronization | Compatible with System Sensor, Wheelock, Gentex, AMSECO |
| Configurable Codes | ANSI Temporal 3 or Temporal 4 |
| Input/Control Circuits | Three fully-isolated circuits (programmable) |
| Relays | Two Form C relays (AC Trouble, General Trouble); Ground Fault relay (Canada only) |
| Supervision | End-of-line 2K–27K ohms |
| Protection | Selectable earth fault detection, AC trouble reporting |
| Battery Charger | Integral charger, up to 33 AH |
| Battery Housing | Two 7 AH or two 18 AH batteries |
| Cabinet | Locking steel enclosure with corrosion/scratch-resistant finish |
| Cabinet Dimensions | 20.0”H x 14.5”W x 3.5”D (50.8 x 36.83 x 8.9 cm) |
| Weight | 24 lbs (10.9 kg) with two 7 AH batteries; 39 lbs (17.7 kg) with two 18 AH batteries |
Information About HPF-PS10
The HPF-PS10 is a Honeywell 10-amp remote power supply built to extend fire alarm control panel power capabilities. It can operate up to seven independent output circuits configured as NACs, auxiliary power, or door holder outputs, supporting both Class A and Class B wiring. This power supply integrates an onboard battery charger with capacity for up to 33 AH and accommodates two 7 AH or two 18 AH batteries inside its steel cabinet. With selectable synchronization, ANSI-coded outputs, and diagnostic indicators, the HPF-PS10 ensures seamless integration with notification appliances and system peripherals across commercial and institutional fire safety environments.
Key Features:
- High-Capacity Power: Provides 10 amps of regulated 24 VDC power with up to seven configurable outputs.
- Flexible Wiring Options: Supports Class A or Class B configurations with optional ZNAC-PS converter card.
- Device Compatibility: Synchronizes with System Sensor, Wheelock, Gentex, and AMSECO appliances.
- Programmable Outputs: Configurable NACs and auxiliary circuits support a wide range of fire system devices.
- Integrated Battery Charging: Built-in charger supports up to 33 AH batteries for extended backup power.
- Rugged Enclosure: Heavy-gauge steel cabinet with corrosion-resistant finish and locking door.
- Diagnostic Functions: Includes LEDs for NAC power/trouble, selectable earth fault detection, and trouble history modes.
- Scalable Power Distribution: Cascadable with up to four power supplies for expanded system capacity.
- Easy Configuration: Fully adjustable through onboard DIP switches without external software.
The HPF-PS10 delivers the reliability and precision required for powering fire alarm notification appliances and auxiliary devices in large-scale safety systems.
Description
The Honeywell HPF-PS10 is a 10-amp, 120 VAC remote power supply designed for fire alarm and auxiliary system applications. It supports up to seven configurable output circuits, integral battery charging, and Class A/B wiring options with synchronization for multiple notification appliances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | HPF-PS10 |
| Subcategory | Remote Power Supply |
| Output Capacity | 10 A total, 3 A maximum per circuit |
| Output Circuits | Up to 7 independently configurable (NACs, auxiliary power, door holder) |
| Input Voltage | 120 VAC |
| Wiring Support | Class A or Class B (via ZNAC-PS converter card, sold separately) |
| Synchronization | Compatible with System Sensor, Wheelock, Gentex, AMSECO |
| Configurable Codes | ANSI Temporal 3 or Temporal 4 |
| Input/Control Circuits | Three fully-isolated circuits (programmable) |
| Relays | Two Form C relays (AC Trouble, General Trouble); Ground Fault relay (Canada only) |
| Supervision | End-of-line 2K–27K ohms |
| Protection | Selectable earth fault detection, AC trouble reporting |
| Battery Charger | Integral charger, up to 33 AH |
| Battery Housing | Two 7 AH or two 18 AH batteries |
| Cabinet | Locking steel enclosure with corrosion/scratch-resistant finish |
| Cabinet Dimensions | 20.0”H x 14.5”W x 3.5”D (50.8 x 36.83 x 8.9 cm) |
| Weight | 24 lbs (10.9 kg) with two 7 AH batteries; 39 lbs (17.7 kg) with two 18 AH batteries |
Information About HPF-PS10
The HPF-PS10 is a Honeywell 10-amp remote power supply built to extend fire alarm control panel power capabilities. It can operate up to seven independent output circuits configured as NACs, auxiliary power, or door holder outputs, supporting both Class A and Class B wiring. This power supply integrates an onboard battery charger with capacity for up to 33 AH and accommodates two 7 AH or two 18 AH batteries inside its steel cabinet. With selectable synchronization, ANSI-coded outputs, and diagnostic indicators, the HPF-PS10 ensures seamless integration with notification appliances and system peripherals across commercial and institutional fire safety environments.
Key Features:
- High-Capacity Power: Provides 10 amps of regulated 24 VDC power with up to seven configurable outputs.
- Flexible Wiring Options: Supports Class A or Class B configurations with optional ZNAC-PS converter card.
- Device Compatibility: Synchronizes with System Sensor, Wheelock, Gentex, and AMSECO appliances.
- Programmable Outputs: Configurable NACs and auxiliary circuits support a wide range of fire system devices.
- Integrated Battery Charging: Built-in charger supports up to 33 AH batteries for extended backup power.
- Rugged Enclosure: Heavy-gauge steel cabinet with corrosion-resistant finish and locking door.
- Diagnostic Functions: Includes LEDs for NAC power/trouble, selectable earth fault detection, and trouble history modes.
- Scalable Power Distribution: Cascadable with up to four power supplies for expanded system capacity.
- Easy Configuration: Fully adjustable through onboard DIP switches without external software.
The HPF-PS10 delivers the reliability and precision required for powering fire alarm notification appliances and auxiliary devices in large-scale safety systems.
