Product Description P/N: HPF-PS10B
Description

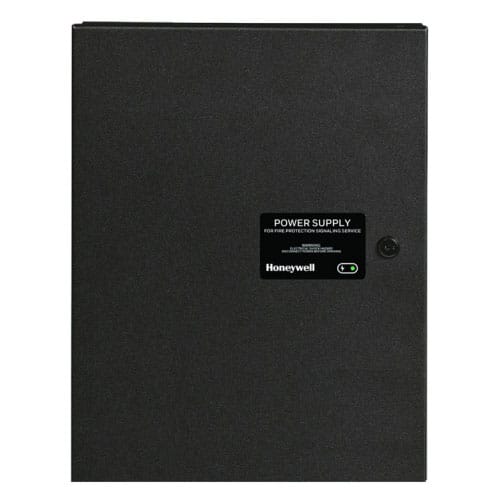

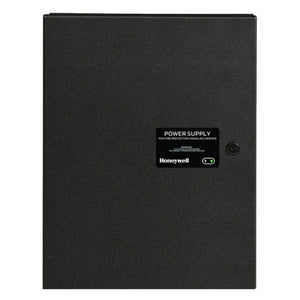

The Honeywell HPF-PS10B is a 10-amp, 120 VAC remote power supply designed for fire alarm systems and auxiliary applications. Housed in a black lockable metal enclosure, it offers up to seven configurable circuits, integrated synchronization, and an onboard battery charger for reliable operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | HPF-PS10B |
| Subcategory | Remote Power Supply |
| Output Capacity | 10 A total, 3 A maximum per circuit |
| Output Circuits | Up to 7 independently configurable (NACs, auxiliary power, door holder) |
| Input Voltage | 120 VAC |
| Wiring Support | Class A or Class B (via ZNAC-PS converter card, sold separately) |
| Synchronization | UL-listed sync for System Sensor, Wheelock, Gentex, AMSECO |
| Configurable Codes | ANSI Temporal 3 or Temporal 4 |
| Control Inputs | Triggered from FACP NACs, cascaded supply, or control module |
| Relays | Two Form C trouble relays (AC Trouble, General Trouble) |
| Supervision | End-of-line 2 kΩ to 27 kΩ |
| Protection | Selectable earth fault detection, AC trouble reporting |
| Battery Charger | Integral charger, supports up to 33 AH |
| Battery Housing | Two 7 AH or two 18 AH batteries |
| Cabinet | Black lockable steel enclosure |
| Cabinet Dimensions | 20 in H x 14.5 in W x 3.5 in D (50.8 x 36.83 x 8.9 cm) |
| Weight | 16 lbs |
Information About HPF-PS10B
The HPF-PS10B is a Honeywell remote power supply and NAC expander designed to extend the capacity of fire alarm control panels or function as a standalone unit. With up to seven independently configurable outputs, it supports Class A or Class B wiring for NACs, auxiliary power, and door holders. It synchronizes seamlessly with System Sensor, Wheelock, Gentex, and AMSECO appliances while offering ANSI Temporal 3 and 4 coding for alarm signaling. Its black metal cabinet houses two internal batteries, includes an integral charger for up to 33 AH, and simplifies setup with DIP-switch configuration and built-in trouble monitoring.
Key Features:
- High Output Capacity: Provides 10 amps of regulated 24 VDC across seven configurable outputs.
- Wiring Flexibility: Supports Class A and Class B wiring, convertible with ZNAC-PS card.
- Synchronization Support: UL-listed sync for leading appliance brands including System Sensor and Wheelock.
- ANSI Coding: Configurable for ANSI Temporal 3 and Temporal 4 coded alarm outputs.
- Integrated Charging: Built-in battery charger supports internal and external charging up to 33 AH.
- Rugged Enclosure: Black lockable steel cabinet ensures durability and system security.
- Scalable Design: Can be triggered by FACP NACs, cascaded supplies, or control modules.
- Simplified Installation: DIP-switch programming eliminates the need for external software.
- Diagnostic Features: Includes supervision, AC trouble reporting, and earth fault detection.
The HPF-PS10B delivers the reliability and precision required for powering notification appliances and auxiliary devices in modern fire alarm systems.
