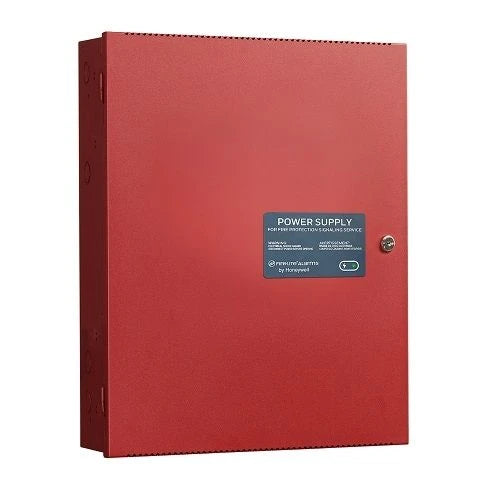

HPF-PS6 | Honeywell 6-Amp Remote Power Supply and NAC Expander
- Regular price
- $452.00
- Sale price
- $452.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HPF-PS6
Description
The Honeywell HPF-PS6 is a 6-amp remote power supply and NAC expander that delivers regulated 24 VDC across up to five configurable outputs. It supports Class A or Class B wiring, UL-listed synchronization, ANSI Temporal 3/4 coding, and includes an integral battery charger for extended backup capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | HPF-PS6 |
| Subcategory | Remote Power Supply |
| Output Capacity | 6 A total, 3 A maximum per circuit |
| Output Circuits | Up to 5 independently configurable (NACs or auxiliary power) |
| Input Voltage | 120 VAC ±10 %, 50/60 Hz, 5.0 A max |
| Wiring Support | Class A or Class B (via ZNAC-PS converter card, sold separately) |
| Synchronization | UL-listed sync for System Sensor, Wheelock, Gentex, AMSECO |
| Configurable Codes | ANSI Temporal 3 or Temporal 4 |
| Control Inputs | Two isolated inputs (reverse-polarity NAC or dry contact, 9–32 VDC) |
| Relays | Dual Form C trouble relays (AC Trouble, General Trouble) |
| Supervision | End-of-line 2 kΩ to 27 kΩ |
| Protection | Selectable earth fault detection (enable/disable) |
| Battery Charger | Integral charger, supports up to 33 AH external |
| Battery Housing | Two 7 AH or two 18 AH batteries inside cabinet |
| Diagnostic Features | Individual NAC power/trouble LEDs, trouble history mode |
| Cabinet | Red steel enclosure with plug-in terminal blocks |
| Weight | 24 lbs |
Information About HPF-PS6
The HPF-PS6 is a Honeywell PS Series 6-amp remote power supply and NAC expander designed to extend fire alarm system capacity. It provides five configurable 24 VDC outputs that can be wired as Class A or Class B, with up to 3 A per circuit and 6 A total output. The unit supports synchronized operation with System Sensor, Wheelock, Gentex, and AMSECO notification appliances and can apply ANSI Temporal 3 or Temporal 4 coding. Built with DIP-switch configuration, dual Form C trouble relays, and diagnostic LEDs, the HPF-PS6 simplifies setup, reduces commissioning time, and ensures reliable monitoring for commercial fire alarm applications.
Key Features:
- Five Configurable Outputs: Provides up to 5 NAC or auxiliary circuits rated at 3 A each, 6 A combined.
- Class A/B Flexibility: Converts from Class B to Class A wiring with ZNAC-PS card without reducing outputs.
- Appliance Synchronization: UL-listed sync with System Sensor, Wheelock, Gentex, and AMSECO devices.
- Coding Options: Configurable for ANSI Temporal 3 or Temporal 4 signaling patterns.
- Diagnostic Tools: Includes NAC power/trouble LEDs and trouble history mode for service support.
- Integrated Charging: Built-in battery charger supports charging up to 33 AH for extended operation.
- Battery Housing: Accommodates two 7 AH or two 18 AH batteries internally for backup power.
- Flexible Control: Accepts two isolated inputs, supporting NAC triggers or dry contact activation.
- Enhanced Safety: Dual Form C trouble relays monitor AC power and general system conditions.
- Simplified Setup: DIP-switch programming eliminates the need for external software configuration.
The HPF-PS6 delivers the reliability and precision required for powering fire alarm notification appliances and system peripherals in commercial and institutional facilities.
