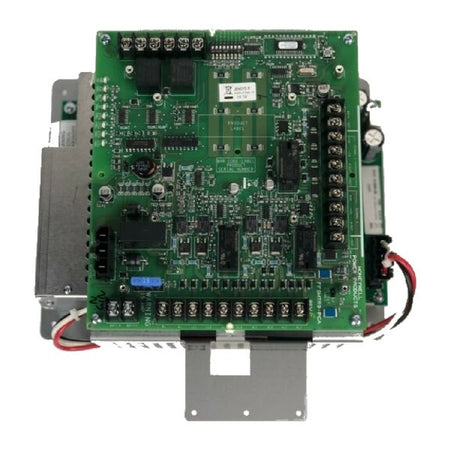

HPFF12CM | Notifier 12A 24V Fire Rated Power Supply for NAC and Auxiliary Circuits
- Regular price
- $1,015.00
- Sale price
- $1,015.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: HPFF12CM
Description
The Notifier HPFF12CM is a 12-amp, 24VDC fire-rated power supply designed for use with Notifier fire alarm and emergency communication systems. It provides regulated output for notification appliance circuits (NACs) and auxiliary power, ensuring reliable system operation and supervision.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Power Supplies |
| Part Number | HPFF12CM |
| Subcategory | Fire Rated Power Supply |
| Product Type | Notification Appliance Circuit (NAC) Expander / Auxiliary Power Supply |
| Operating Voltage | 24 VDC regulated output |
| Primary Power Input | 120VAC, 60Hz, 5.0A OR 240VAC, 50Hz, 2.8A (E suffix) |
| Total Output Current | 12.0A maximum |
| Output Circuits | 4 × 3A NACs (Class A or B) |
| Auxiliary Power Output | 2.0A continuous |
| Standby Current | 0.075A |
| Input Control | 12 or 24VDC panel NAC compatible |
| Input Control Current | 5.68mA @12VDC; 12.28mA @24VDC |
| Battery Charging Capacity | Up to 26AH total |
| Internal Battery Support | Two 12AH max inside HPFF12CM cabinet |
| End-of-Line Resistor Range | 1.9K–25K ohm, ½ watt |
| Trouble/Fail Relay | 2A @ 30VDC |
| Operating Temperature | 32°F–120°F (0°C–49°C) |
| Relative Humidity | 10%–93% RH (non-condensing) |
| Cabinet Dimensions | 16.65" W × 19.0" H × 5.2" D (42.29 × 48.26 × 13.23 cm) |
| Color | Red |
| Enclosure Options | EQBB-B4, EQBB-C4, EQBB-D4 (for larger battery storage) |
| Battery Type | Sealed lead-acid |
| Compliance | UL listed (where applicable) |
| Weight | 30 lbs (approx.) |
Information About HPFF12CM
The HPFF12CM is part of Notifier’s HPFF12 Series of notification appliance circuit expanders and auxiliary power supplies, built for high-performance fire alarm and life safety systems. It delivers a total output current of 12 amps across four Class B or two Class A NACs, each rated for up to 3 amps. Operating from 120VAC or 240VAC input, it features a fully regulated 24VDC output and includes battery charging capacity for up to two 12AH sealed lead-acid batteries within the cabinet. The HPFF12CM can operate as a standalone power supply or as a NAC expander under panel supervision, providing dependable power distribution in commercial, institutional, and industrial installations.
Key Features:
- High Output Power: Provides up to 12A total output at 24VDC for notification appliances.
- Multiple NAC Circuits: Four 3A circuits configurable as Class A or Class B.
- Auxiliary Power Output: 2A continuous regulated output under all conditions.
- Battery Charging: Supports up to two 12AH batteries internally; charges up to 26AH externally.
- Dual Input Options: Operates on 120VAC/60Hz or 240VAC/50Hz input.
- Supervised Operation: Monitors AC failure, battery trouble, and NAC faults.
- Compact Cabinet Design: Red enclosure sized to hold internal batteries.
- Temperature Range: Operates from 32°F to 120°F (0°C to 49°C).
The HPFF12CM delivers the reliability and precision required for powering fire alarm notification circuits and auxiliary devices.
