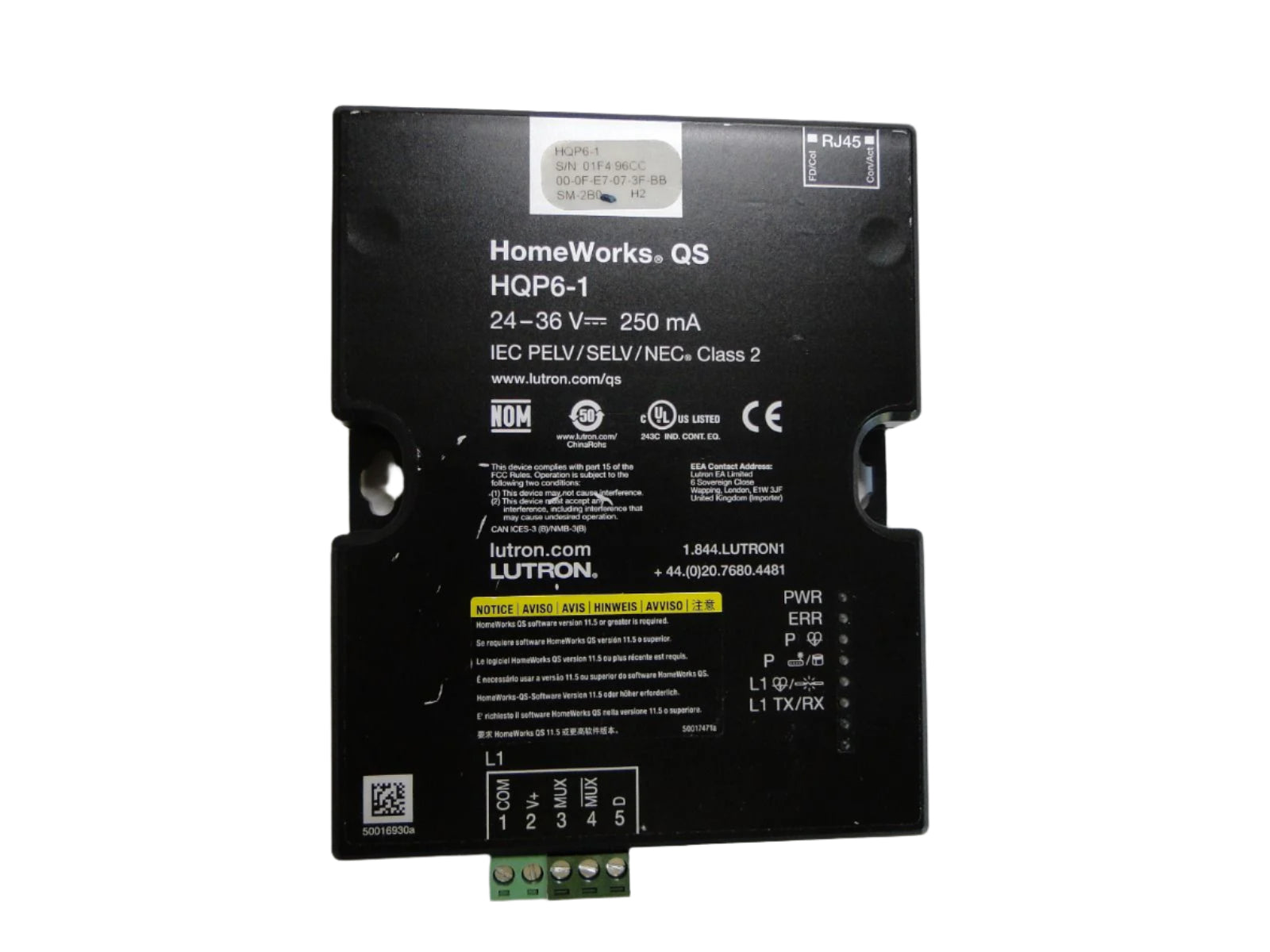

HQP6-1 | Lutron HomeWorks QS 1-Link Processor with Ethernet & RS485 System Integration
- Regular price
- $1,259.00
- Sale price
- $1,259.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HQP6-1
Description
The Lutron HQP6-1 HomeWorks QS Processor is the central control unit for HomeWorks QS systems, enabling system-wide communication, integration, and automation. With support for Ethernet and RS485 connectivity, it manages wireless and wired zones, dimmers, and third-party interfaces. Designed for flexible mounting in various Lutron enclosures, it ensures reliable performance for complex residential and commercial lighting control setups.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | HQP6-1 |
| Subcategory | Processors |
| Series | HomeWorks QS |
| Processor Type | 1-Link Processor |
| Link Capacity | RF (99 devices/100 zones), QS (99/512), Power Panel (16/256) |
| Communication | Ethernet, RS485 (QS, RF, Power Panel) |
| Input Power | 24–36 VDC, 250 mA max (from QSPS-DH-1-75) |
| Power Consumption | 5 W typical (8 PDUs), 17–24 BTU/hr heat generation |
| Cooling Method | Passive cooling |
| Memory | Non-volatile memory with 10-year timeclock retention |
| Surge/ESD Protection | IEC 61000-4-2, ANSI/IEEE C62.41 compliant |
| Environment | Indoor use only, 32°F–104°F (0–40°C), 0–90% RH non-condensing |
| Mounting Options | HQ-LV21, L-LV14, L-LV21, PNL-8, PDx-36/64 DIN control panels |
| Terminal Block Capacity | 5-pin removable, up to two 18 AWG wires per terminal |
| Connections | One RJ45 Ethernet, one removable terminal block |
| Enclosure Dimensions | 4.27 in x 5.63 in (with terminals) |
| Wire Type – Link | Two-pair: one 18 AWG, one 18–22 AWG twisted shielded |
| Wire Type – Power | 18 AWG (0.75 mm²) |
| Certifications | UL508, CSA, IEC/EN 60669, NOM |
| Weight | 0.8 lbs |
Information About HQP6-1
The HQP6-1 is a 1-link processor from the Lutron HomeWorks QS series, built to handle advanced lighting and system integration in intelligent control systems. This processor supports one configurable link, which may be used for RF, wired device, power panel, or dimmer connections, offering versatile deployment. It is compatible with standard and ad-hoc networking setups and integrates seamlessly with HomeWorks QS software and third-party automation systems. Designed for DIN rail or enclosure installation, it features passive cooling, non-volatile memory, and system-level miswire protection.
Key Features:
- 1-Link Configurable Processor: Supports RF, QS wired, power panel, or H48 dimmer link configurations.
- Flexible Networking: Communicates via Ethernet with standard or ad-hoc networking topologies.
- Integration Ready: Interfaces with third-party automation and control systems using Ethernet and RS485.
- Non-Volatile Memory: Retains full system data and timeclock settings even during power outages.
- Passive Cooling: Fanless design for silent operation and minimal maintenance.
- System Mounting Options: Fits HQ-LV21, L-LV21, L-LV14, PNL-8, and compatible DIN panels.
- Miswire and Surge Protected: Built-in over-voltage, ESD, and surge protection ensures system safety.
- Wide Link Support: Up to 512 zones with QS wired devices or 256 zones with power panel interfaces.
The HQP6-1 delivers the reliability and scalability required for high-end HomeWorks QS lighting control and automation systems.
