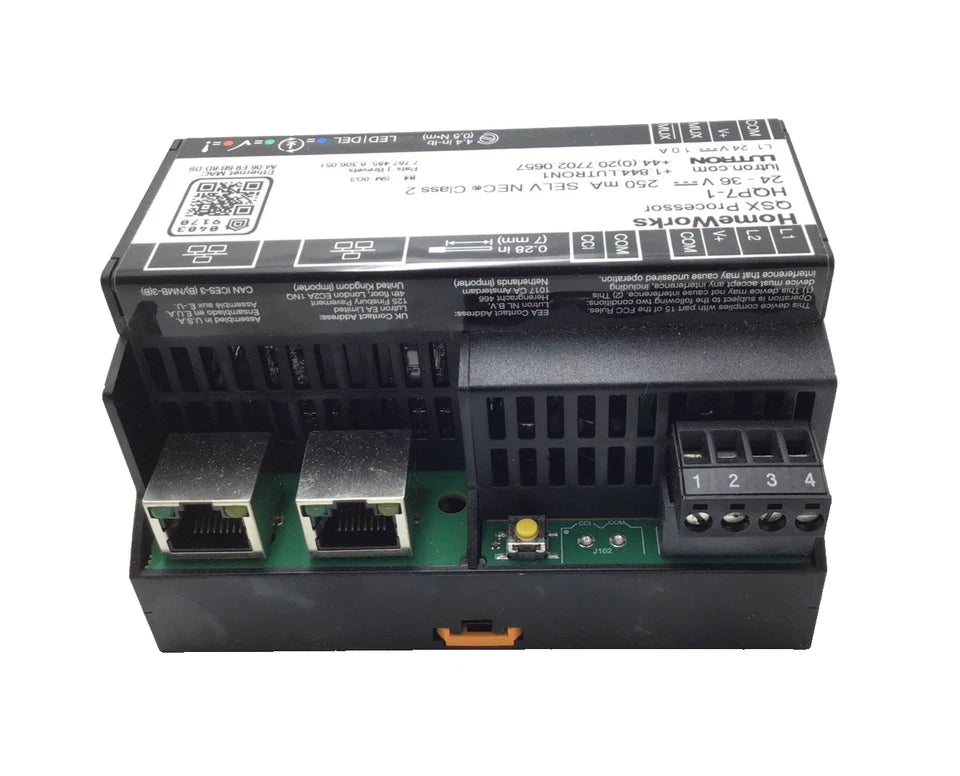

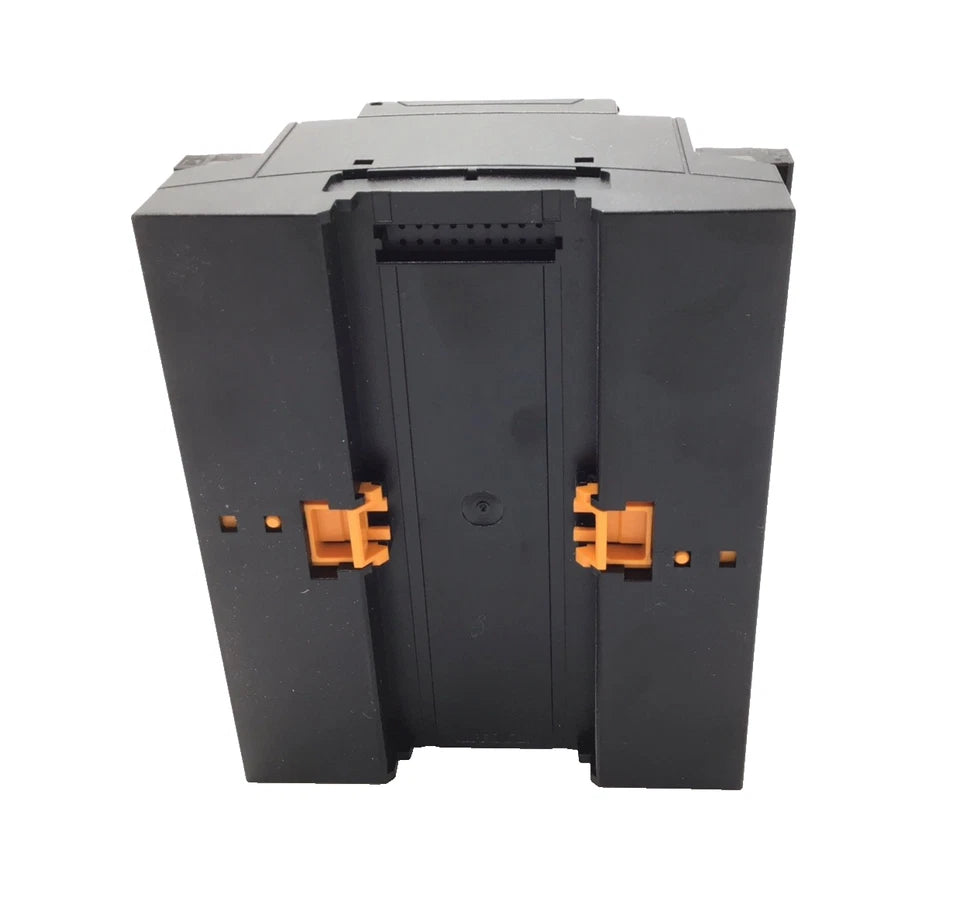

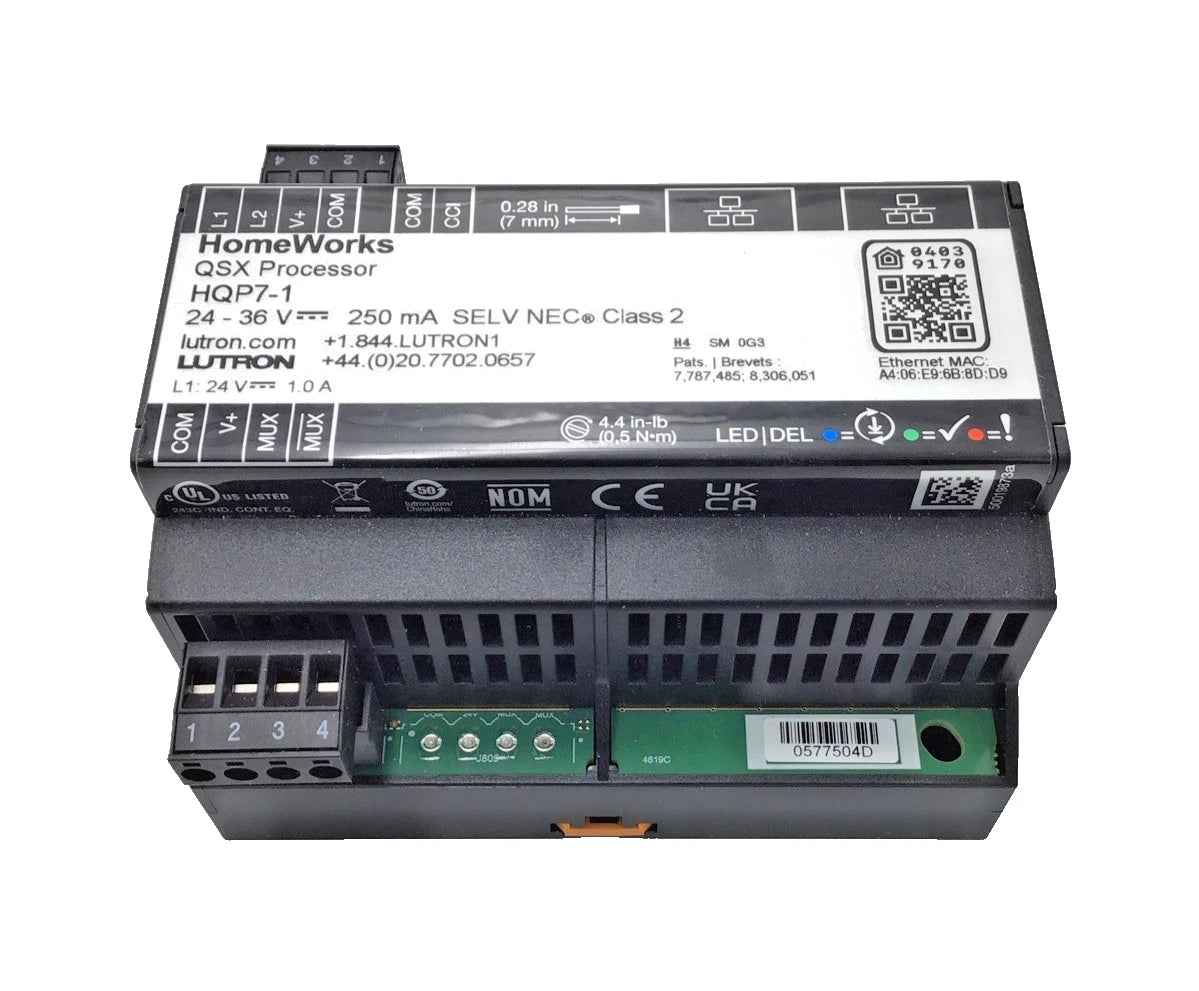

HQP7-1 | Lutron HomeWorks QSX Processor for Advanced Wired & Wireless System Control
- Regular price
- $1,929.00
- Sale price
- $1,929.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HQP7-1
Description
The Lutron HQP7-1 is a HomeWorks QSX processor providing centralized control and communication for QSX system components. It supports integration with third-party systems and multiple processors via Ethernet connectivity. The unit enables advanced automated lighting control in premium residential environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting Control Systems
|
| Part Number | HQP7-1 |
| Subcategory | Processors |
| Series | HomeWorks QSX |
| Power Input | 24–36 V, 250 mA |
| Typical Power Consumption | 4.2 W (8 PDUs) |
| Cooling | Passive |
| Communication | Ethernet, RS485 (QS/RF) |
| Link Capacity | Up to 99 devices / 512 zones per wired link |
| Time-clock Accuracy | ±1 minute per year |
| Time-clock Retention | 10 years |
| Surge Protection | ANSI/IEEE C62.41 compliant |
| ESD Protection | IEC 61000-4-2 compliant |
| Mounting Panels | HQ-LV21, L-LV21, L-LV14, PDx |
| Dimensions (with terminals) | 108 × 100 mm (4.25 × 3.94 in) |
| Environment | 0–40 °C, 0–90% RH non-condensing |
| Weight | 0.45 kg (approx.) |
Information About HQP7-1
The HQP7-1 is part of Lutron’s HomeWorks QSX processor family engineered to connect system devices, designer software, and Clear Connect Type X gateways on a unified Ethernet network. Powered from a 24–36 V supply, it features dual Ethernet ports, passive cooling, and time-clock retention up to 10 years. Compatible with HQ-LV21, L-LV21, L-LV14, and PDx control panels, it offers RS485 QS/RF communications and mis-wire protection. The processor supports up to 99 QS wired devices per link, ensuring scalable system expansion.
Key Features:
- Ethernet Connectivity: Enables software programming and third-party system integration.
- Clear Connect Type X Support: Required for residential Ketra lighting control.
- Robust Link Capacity: Handles up to 99 devices and 512 zones per wired link.
- High Protection: Surge, ESD, and mis-wire protection ensure durable operation.
- Passive Cooling: Fan-free design reduces noise and increases reliability.
- Power Failure Memory: Retains system and time-clock settings for 10 years.
- Flexible Mounting: Installs in HQ-LV21, L-LV14, L-LV21, and PDx panels.
- The HQP7-1 delivers the reliability and precision required for advanced HomeWorks QSX lighting systems.
