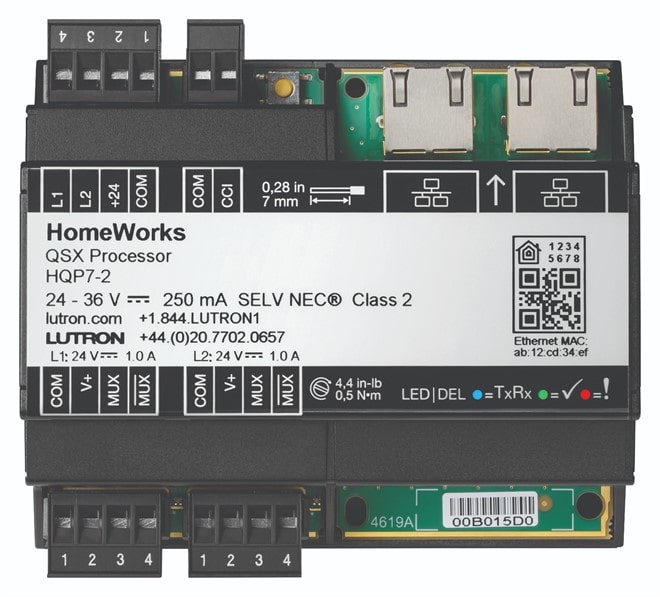

HQP7-2 | Lutron HomeWorks QSX 2-Link Processor for Integrated Control
- Regular price
- $895.00
- Sale price
- $895.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HQP7-2
Description
The HQP7‑2 is a dual-link HomeWorks QSX processor that acts as the central hub for sophisticated automation across lighting, shading, and HVAC systems. Installed within Lutron control panels, it enables seamless integration, remote access, and coordinated control throughout the home.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Automation Processors
|
| Part Number | HQP7-2 |
| Subcategory | Dual-Link QSX System Processor |
| Series | HomeWorks QSX Processor |
| Power Input (Processor) | 24–36 V DC, 250 mA |
| Power Input (Each Link L1/L2) | 24–36 V DC, 1 A |
| Typical Power Consumption | 4.2 W (~15 BTU/hr) |
| Communication Links | Ethernet (2 RJ45), RS485 for QS/RF device links |
| Link Capacity (QS Wired) | Up to 99 devices / 512 switch legs per link |
| Link Capacity (Type A Connect) | Up to 99 devices / 100 switch legs |
| Memory & Timeclock | Non‑volatile memory; 10‑year timeclock retention |
| Security Mechanisms | Signed firmware, hardware security chip, encrypted comms |
| Integration Compatibility | HomeWorks QS wired/RF, Clear Connect, third-party systems |
| Mounting Panels | HQ‑LV21, L‑LV21, L‑LV14, PDx series |
| Regulatory Approvals | cULus, FCC, ICES‑003, NOM, CE, UKCA, RoHS compliant |
| Temperature & Humidity Range | 0 °C to 40 °C; 0‑90 % non‑condensing |
| Dimensions (with blocks) | Approx. 108 × 100 mm |
| Cooling | Passive |
| Weight | ~0.6 lb (0.3 kg) |
Information About HQP7-2
The HQP7‑2 is part of Lutron’s QSX processor line designed for HomeWorks systems, offering two independent communication links. Each link can connect up to 99 QS wired or Clear Connect Type A devices, facilitating large-scale automation. It operates on a 24–36 V DC power supply and mounts in standard Lutron panels. The processor features secure cloud backup/restore, firmware updates, and encryption to safeguard system data.
Key Features:
- Dual Communication Links: Supports two links configurable as QS wired or Clear Connect – Type A for flexible system design.
- High Device Capacity: Each link accommodates up to 99 devices or up to 512 switch legs on QS wired link.
- Secure Remote Access: Encrypted and authenticated remote programming and system control.
- Cloud Backup & Restore: Enables secure cloud-stored project backups and rapid system restoration.
- Robust Security Architecture: Includes signed firmware, hardware encryption chip, and regular security patching.
- Ketra Lighting Compatibility: Supports Clear Connect – Type X Gateway integration for Ketra sources.
- Power Failure Resilience: Non‑volatile memory retains settings and maintains up to 10-year timeclock retention.
- Efficient Power Usage: Low power draw (~4.2 W) with passive cooling and miswire protection.
The HQP7‑2 delivers the reliability and precision required for enterprise‑grade home automation control and secure system management.
