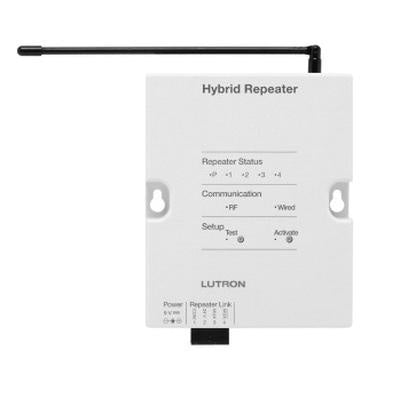

HQR-REP-120 | Lutron HomeWorks QS Hybrid RF Repeater (434 MHz, 100–240 V, White)
- Regular price
- $527.00
- Sale price
- $527.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HQR-REP-120
Description
The HQR-REP-120 is a HomeWorks QS hybrid repeater designed to extend Radio Frequency (RF) communication range. Operating at 434 MHz, it wirelessly relays signals between dimmers, keypads, shades and other RF devices. This compact white module improves coverage and reliability in large-scale smart lighting and shading systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting Control Systems
|
| Part Number | HQR-REP-120 |
| Subcategory | RF Repeaters |
| Input Voltage | 100 – 240 V AC, 50/60 Hz |
| Output (Adapter) | 9 V DC, 300 mA |
| Power Consumption | 0.6 W |
| Frequency | 434 MHz |
| RF Device Range | 30 ft (9 m) |
| Repeater-to-Repeater Range | 60 ft (18 m) |
| Coverage Area | Approx. 2500 sq ft (232 m²) |
| Max Repeaters per Link | 4 |
| Connection Type | RS485 (daisy chain) |
| Operating Temperature | 0 °C – 40 °C |
| Humidity | 0 – 90% non-condensing |
| Mounting | Wall/ceiling/flat surface (2 × #6 screws) |
| Dimensions | 4.25 in W × 1.125 in D × 5.25 in H |
| Color | White |
| Certifications | FCC, IC, CE, COFETEL, CCC, TRA, C-Tick, ANATEL, IDA, SUPERTEL, SUTEL |
| Weight | 0.18 kg (approx.) |
Information About HQR-REP-120
The HQR-REP-120 hybrid repeater adds wireless connectivity to wired HomeWorks QS systems by retransmitting RF signals over a radius of 30 ft (9 m) to compatible devices and up to 60 ft (18 m) between repeaters. Up to four repeaters can be linked via RS485 (daisy-chain) to cover approximately 2500 sq ft (232 m²) of interior space. It operates from 100–240 V input power using a 9 V DC adapter and consumes only 0.6 W. Certified to FCC, CE, IC and multiple international standards, it ensures error-free communications even in noisy environments.
Key Features:
- RF Range Extension: Provides 30 ft device range and 60 ft repeater-to-repeater communication.
- Hybrid Connectivity: Wired RS485 networking with wireless RF coverage across HomeWorks QS.
- Low Power Consumption: Draws just 0.6 W from the included 9 V/300 mA DC power supply.
- Scalable Deployment: Supports up to four repeaters per link for expanded coverage in large properties.
- Global Certifications: FCC, IC, CE, COFETEL, CCC, TRA, C-Tick and others for worldwide use.
- Easy Mounting: Installs on ceiling, wall, or flat surfaces using two #6 screws.
The HQR-REP-120 delivers the reliability and precision required for scalable HomeWorks QS wireless installations.
