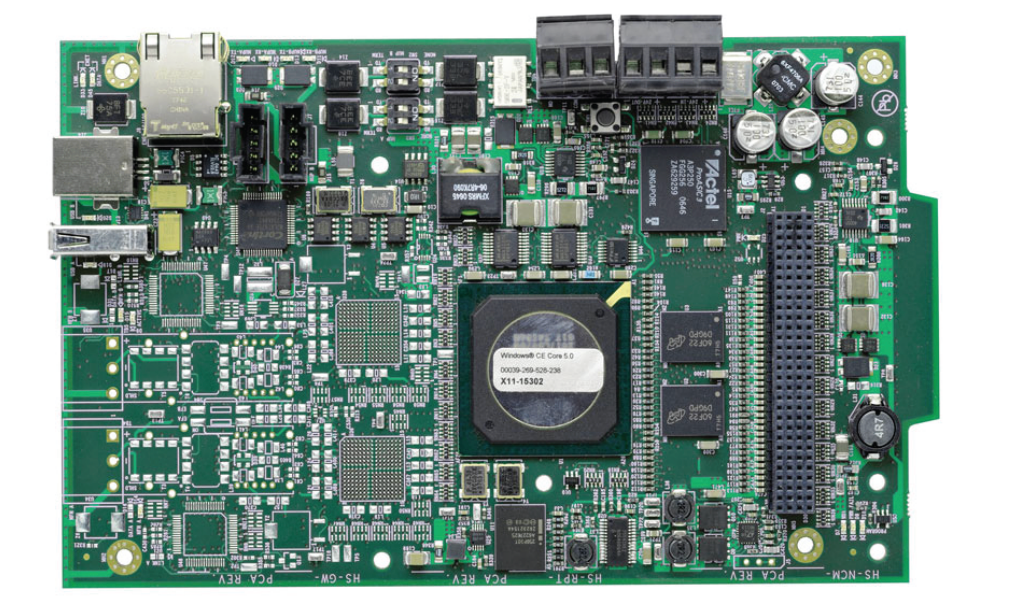

HS-NCM-MFSF | Notifier High-Speed Multimode & Single-Mode Fiber Network Communications Module
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HS-NCM-MFSF
Description
The Notifier HS-NCM-MFSF is a High-Speed Network Communications Module designed for use with NOTIFIER’s NFS-320, NFS2-640, NFS2-3030, and compatible control panels. It enables seamless connectivity between multimode and single-mode fiber-optic networks within High-Speed NOTI•FIRE•NET™ systems. The module ensures fast, reliable data transfer for fire alarm communication networks and supports repeater functionality to extend signal range and network flexibility.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | HS-NCM-MFSF |
| Subcategory | Network Communications Module |
| Network Type | High-Speed NOTI•FIRE•NET™ |
| Supported Media | Multimode and single-mode fiber optic |
| Fiber Types | 62.5/125 μm, 50/125 μm (multimode), 9/125 μm (single-mode) |
| Maximum Node Distance | Up to 3,000 ft (914.4 m) point-to-point |
| Operating Modes | NFPA Style 4 (Class B) or Style 7 (Class A) |
| Wavelength | 1310 nanometers |
| Attenuation | 10 dB (62.5/125 μm), 6.5 dB (50/125 μm), 30 dB (9/125 μm) |
| Node Capacity | Supports up to 2 nodes |
| Functionality | Communication, repeater, and signal regeneration |
| Service Connector | Pluggable connector for direct feed-through during power removal |
| Compatibility | NFS-320, NFS-640, NFS2-640, NFS2-3030, N16e, N16x, NCA, NCA-2, DVC |
| Listings & Approvals | UL, ULC, FM, CSFM, NYC approved |
| Production Status | Active |
| Weight | 1 lb |
Information About HS-NCM-MFSF
The HS-NCM-MFSF is part of the NOTIFIER High-Speed Network Communications Module (HS-NCM) series by Honeywell, engineered to interconnect networked fire alarm systems using various transmission media. It supports both multimode and single-mode fiber connections, allowing hybrid communication across complex installations. Each module can handle up to two node addresses, simplifying network configuration and reducing hardware requirements. When not linked to a fire alarm panel, the unit automatically operates in repeater mode to regenerate signals and extend communication distance across mixed-media network segments.
Key Features:
- Dual Fiber Support: Allows seamless connection between multimode and single-mode fiber-optic media within a single network.
- Two Node Capacity: Supports up to two network node addresses for efficient system integration.
- Repeater Functionality: Boosts signal strength and transmits data between differently configured network segments.
- Flexible Topology: Enables NFPA Style 4 (Class B) or Style 7 (Class A) operation for network redundancy.
- Wide Distance Range: Supports up to 3,000 feet (914.4 m) between nodes in point-to-point configurations.
- Optical Compatibility: Works with 62.5/125 μm, 50/125 μm, and 9/125 μm fiber types for versatile installations.
- Integrated Regeneration: Regenerates and maintains data integrity at each node for reliable communication.
- Fail-Safe Design: Includes a pluggable service connector for direct signal feed-through when power is removed.
The HS-NCM-MFSF delivers the reliability and precision required for high-speed fire alarm network communications in large commercial and institutional safety systems.
