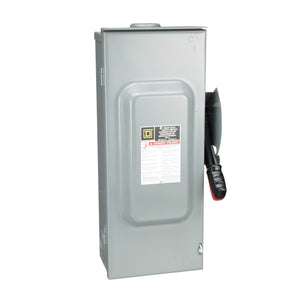

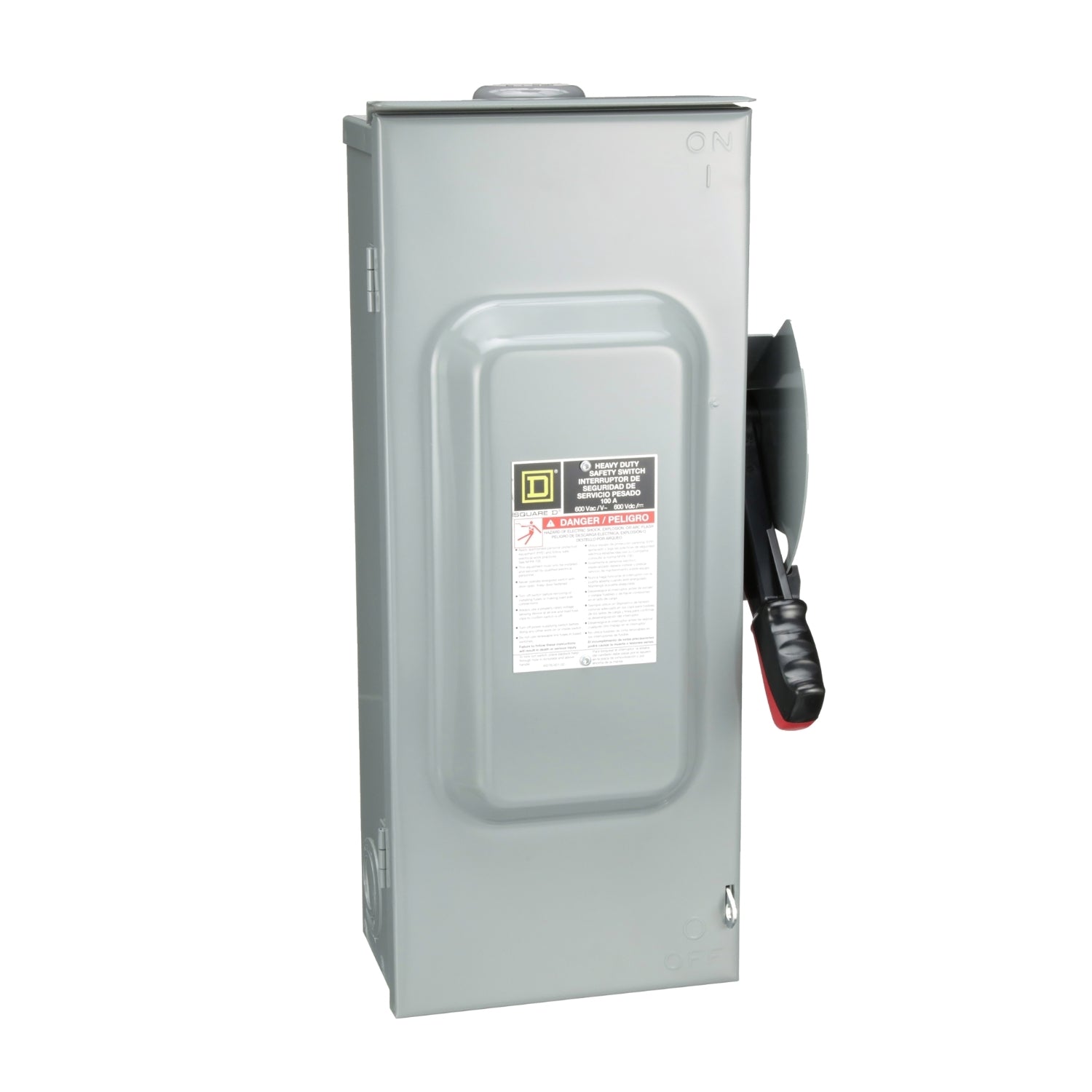

HU363RB | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HU363RB
Description
The HU363RB is a Square D™ by Schneider Electric brand safety switch designed for heavy-duty applications. It is a non-fusible disconnect switch suitable for robust and demanding environments. This safety switch is engineered to deliver exceptional performance under challenging conditions, surpassing NEMA KS-1 or UL98 standards for mechanical endurance.
Featuring a quick-make, quick-break operating mechanism, a dual cover interlock, and a color-coded indicator handle, this switch ensures reliable operation and enhanced safety. With a rated current of 100A, it is UL listed with a NEMA 3R rating, providing protection against rain, sleet, and ice formation.
Technical Specifications
|
Part # |
HU363RB |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Disconnect Type |
Non-fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
100 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 3R galvannealed steel |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
3-wire |
|
Depth |
6.38 in (162.05 mm) |
|
Width |
10.25 in (260.35 mm) |
|
Height |
21.25 in (539.75 mm) |
|
Net Weight |
17.64 lb(US) (8 kg) |
Information About HU363RB
The HU363RB Safety Switch, part of the Square D™ by Schneider Electric brand, is a Heavy Duty, Non-Fusible switch designed to ensure exceptional performance in demanding environments. It belongs to the F Series safety switches, known for exceeding mechanical endurance standards set by NEMA KS-1 or UL98.
Characterized by a quick-make, quick-break operating mechanism, dual cover interlock, and color-coded indicator handle, this safety switch guarantees reliable operation. It features a Single Throw configuration with a rated current of 100A and carries a UL listing with a NEMA 3R protection rating.
Operating as a 3-pole switch, it supports operational voltage ratings of 600VAC/DC, making it suitable for a wide range of applications. The enclosure, constructed from galvannealed steel, ensures durability and resilience in harsh conditions. Notably, it lacks a factory-installed neutral.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
